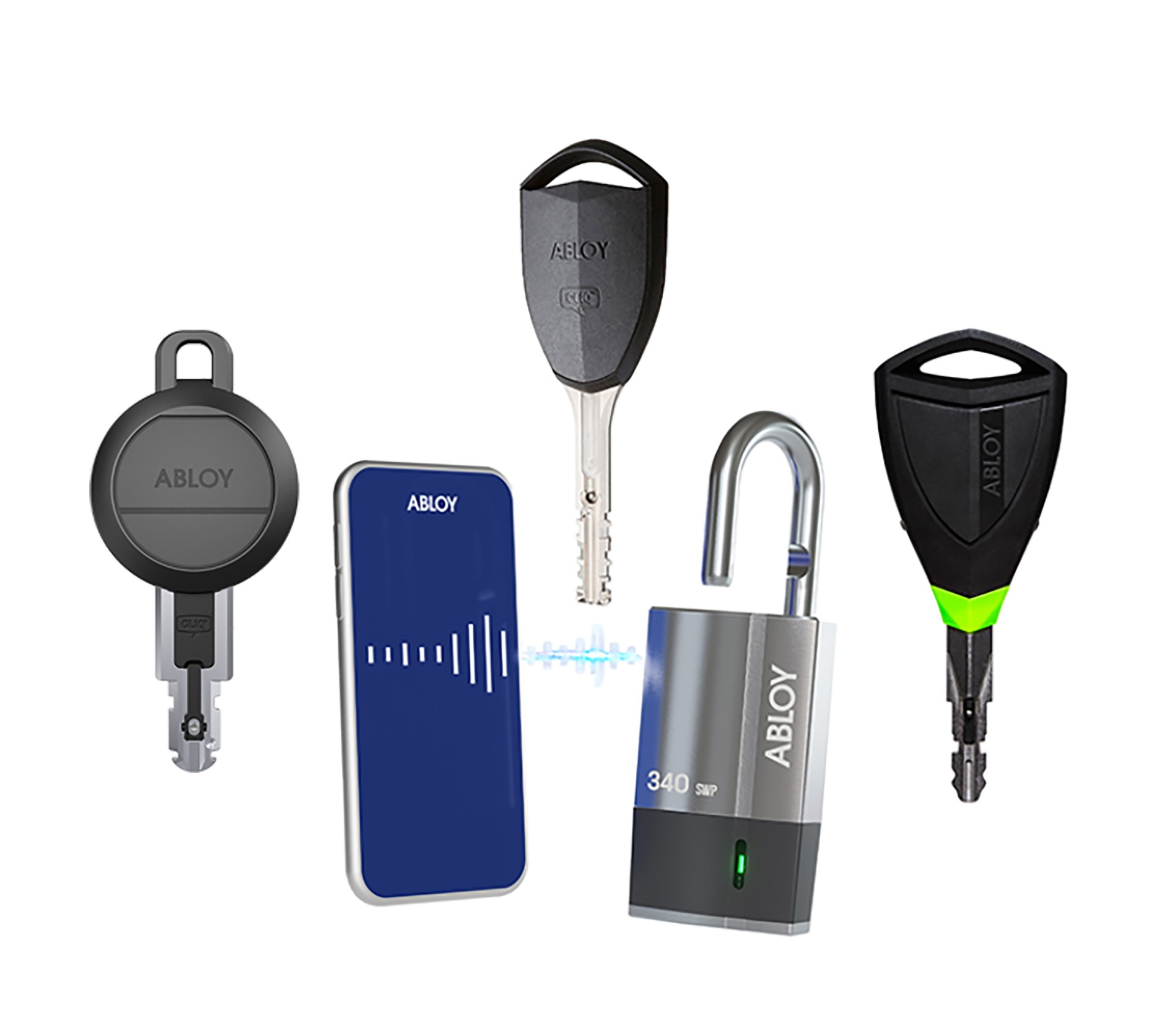

Digital Key Systems

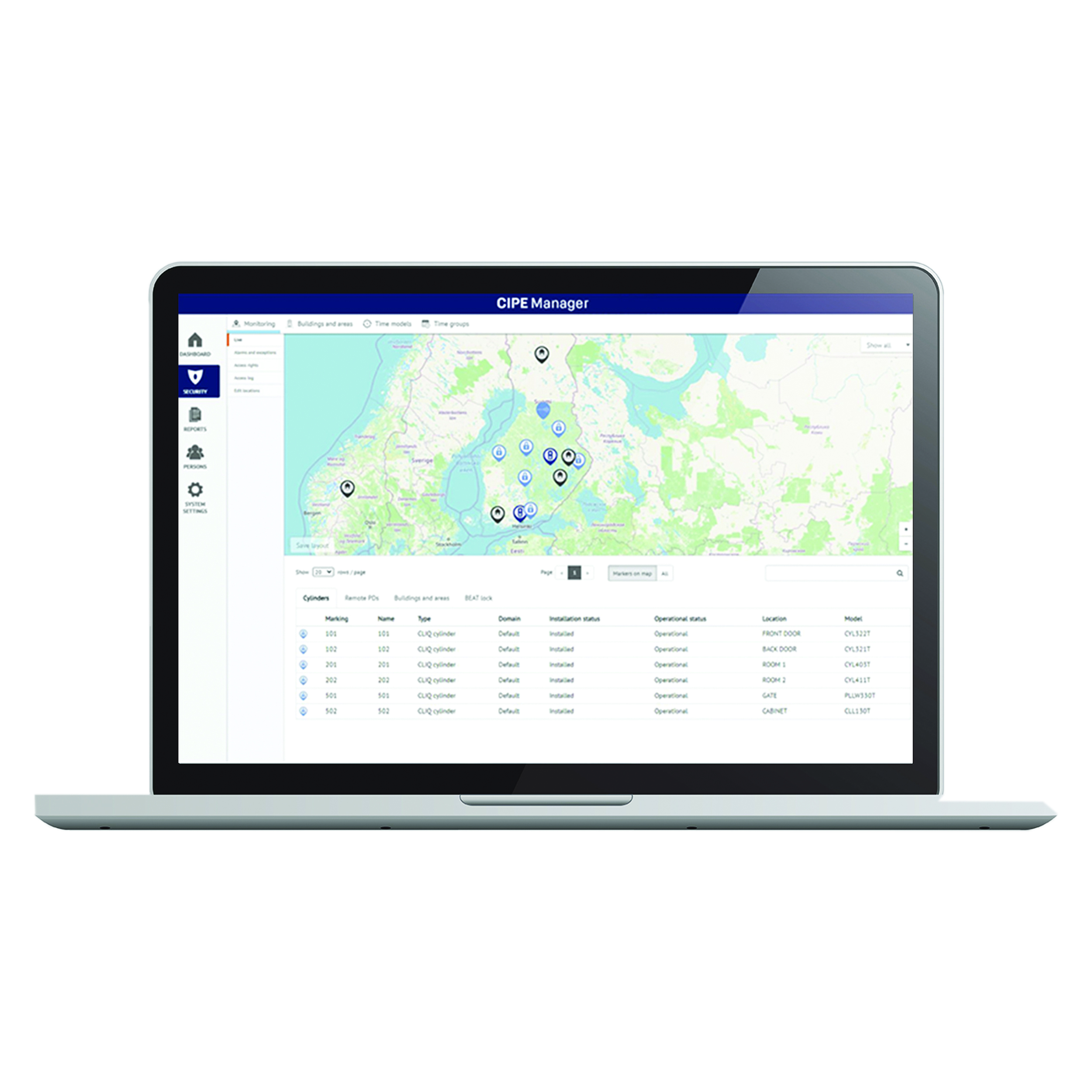

A future-proof digital portfolio for high-level critical infrastructure protection. The Digital Portfolio for Critical Infrastructure enables a fully connected future across your entire operation, across all industries. This is the start of a new digital era within critical infrastructure performance excellence.

UK Oval Cylinder eCLIQ. Electronic, optionally available as mechanical (rotary-secured). Splash-proof IP54 as standard. IP55 Dust and rain protection cap available (-WP).

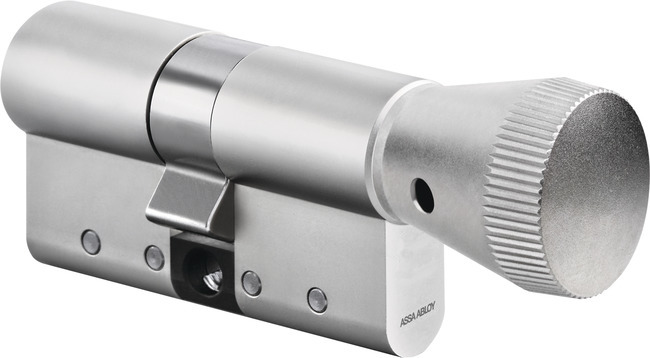

The eCLIQ N534 electronic cylinder combines advanced electronic access control with proven mechanical security, offering a reliable and low‑maintenance solution for demanding environments. Powered entirely by the intelligent eCLIQ key, the N534 requires no batteries or wiring in the door.

Built for high‑security applications, the N534 provides enhanced durability, flexible access management, and audit capability, making it ideal for organisations that need greater control without compromising on robustness.

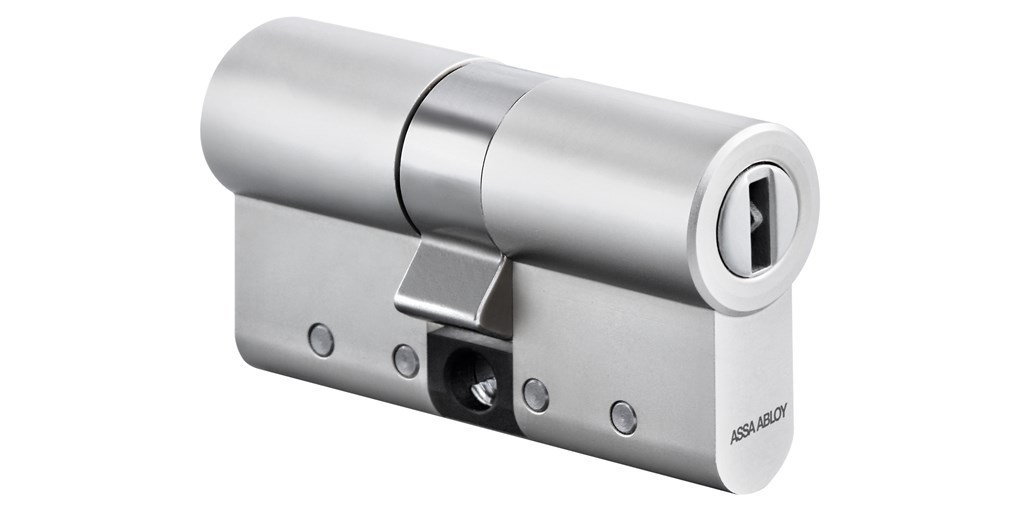

Profile-double cylinder eCLIQ. Electronic one side, Mechanical (rotary secured) one side.

Brass cylinder housing components.

Standard finish, satin nickel-plated (-SN).

Other finishes available - Polished Brass (PB), Satin Brass (SB), Satin Chrome (SC).

Basic cylinder length 61 mm A/B (Length:30/30) - other installation lengths available - flexible modular system (5mm increments).

Optional, differing basic cylinder length of 56 mm - A/B (Length:28/28).

Both side locking and 360° free-wheeling function as standard. Cam made of break-proof, corrosion-resistant stainless steel. Standard locking cam position 30°; differing locking positions available.

eCLIQ cylinders are maintenance-free.

Splash-proof IP54 as standard.

 IP55 Dust and rain protection cap available for one or both sides (-WP).

Optionally DIN EN 15684 with anti drilling protection class 2 (-AD).

Optionally available with ATEX approval for use in potentially-explosive atmospheres in Zone 1 - II 2G EX IB IIB T4 Gb (-ATEX).

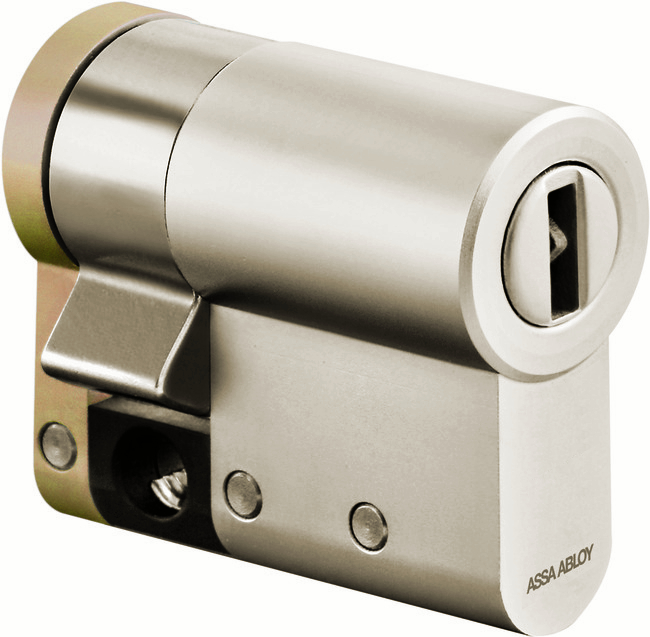

Euro profile-half (single) cylinder eCLIQ. Electronic, optionally available as mechanical (rotary-secured).

Brass cylinder housing components.

Basic cylinder length 30mm - other installation lengths available - flexible modular system (5mm increments).

Free adjustable locking cam set to 45° as standard.

Cam made of break-proof, corrosion-resistant stainless steel.

eCLIQ cylinders are maintenance-free.

Splash-proof IP54 as standard.

IP55 Dust and rain protection cap available (-WP).

Optionally SS504:2024, SS312:2024 for PAS24 Doors and DIN EN 15684 with anti-drilling protection class 2 (-AD).

Optionally available with ATEX approval for use in potentially-explosive atmospheres in Zone 1 - II 2G EX IB IIB T4 Gb (-ATEX.)

These cylinders support flexible permission management, allowing access rights to be updated quickly using electronic keys—without the need to remove or replace the cylinder. Each access event can be recorded, providing valuable audit trails for improved security oversight and accountability. The N530 is ideal for environments where access rights change frequently or where detailed access monitoring is required.

Profile-double cylinder eCLIQ. Electronic one side, Mechanical (rotary secured) one side.

Brass cylinder housing components.

Standard finish, satin nickel-plated (-SN).

Other finishes available - Polished Brass (PB), Satin Brass (SB), Satin Chrome (SC).

Basic cylinder length 61 mm A/B (Length:30/30) - other installation lengths available - flexible modular system (5mm increments).

Optional, differing basic cylinder length of 56 mm - A/B (Length:28/28).

Both side locking and 360° free-wheeling function as standard. Cam made of break-proof, corrosion-resistant stainless steel. Standard locking cam position 30°; differing locking positions available.

eCLIQ cylinders are maintenance-free.

Splash-proof IP54 as standard.

 IP55 Dust and rain protection cap available for one or both sides (-WP).

Optionally DIN EN 15684 with anti drilling protection class 2 (-AD).

Optionally available with ATEX approval for use in potentially-explosive atmospheres in Zone 1 - II 2G EX IB IIB T4 Gb (-ATEX).Profile-double cylinder eCLIQ. Electronic one side, Mechanical (rotary secured) one side.

Brass cylinder housing components.

Standard finish, satin nickel-plated (-SN).

Other finishes available - Polished Brass (PB), Satin Brass (SB), Satin Chrome (SC).

Basic cylinder length 61 mm A/B (Length:30/30) - other installation lengths available - flexible modular system (5mm increments).

Optional, differing basic cylinder length of 56 mm - A/B (Length:28/28).

Both side locking and 360° free-wheeling function as standard. Cam made of break-proof, corrosion-resistant stainless steel. Standard locking cam position 30°; differing locking positions available.

eCLIQ cylinders are maintenance-free.

Splash-proof IP54 as standard.

 IP55 Dust and rain protection cap available for one or both sides (-WP).

Optionally DIN EN 15684 with anti drilling protection class 2 (-AD).

Optionally available with ATEX approval for use in potentially-explosive atmospheres in Zone 1 - II 2G EX IB IIB T4 Gb (-ATEX).

The eCLIQ N352 electronic cylinder delivers intelligent access control while retaining the strength and reliability of a high‑security mechanical cylinder. Powered entirely by the eCLIQ key, it provides advanced functionality without the need for batteries or wiring in the door.

Compact and versatile, the N352 cylinder is ideal for applications where dependable security, flexible access management, and long‑term durability are required.

The eCLIQ N534 electronic cylinder combines advanced electronic access control with proven mechanical security, offering a reliable and low‑maintenance solution for demanding environments. Powered entirely by the intelligent eCLIQ key, the N534 requires no batteries or wiring in the door.

Built for high‑security applications, the N534 provides enhanced durability, flexible access management, and audit capability, making it ideal for organisations that need greater control without compromising on robustness.

The eCLIQ NT01 provides a secure and efficient way to manage electronic access, ensuring that permissions and system data remain up to date. As a core part of the eCLIQ ecosystem, it helps organisations maintain control, flexibility, and accountability without adding unnecessary complexity.

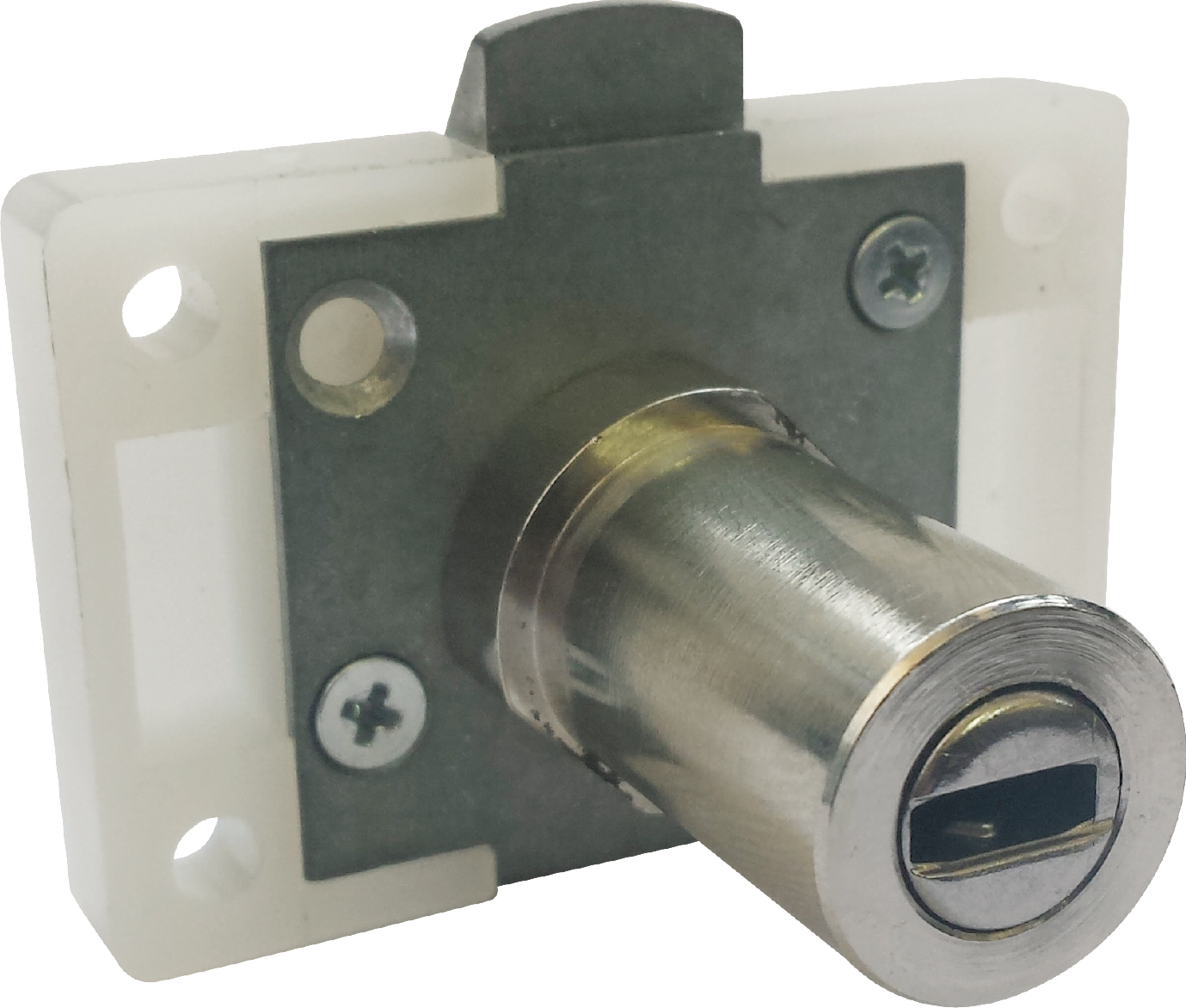

The eCLIQ NT05 is an electronic furniture lock designed to deliver secure, controlled access for cabinets, lockers, drawers, and other furniture applications. Operating as part of the eCLIQ access control system, the NT05 combines compact design with intelligent electronic locking.

Powered by the eCLIQ key, the NT05 requires no batteries in the lock, offering a low‑maintenance solution while maintaining high levels of security and system integration.

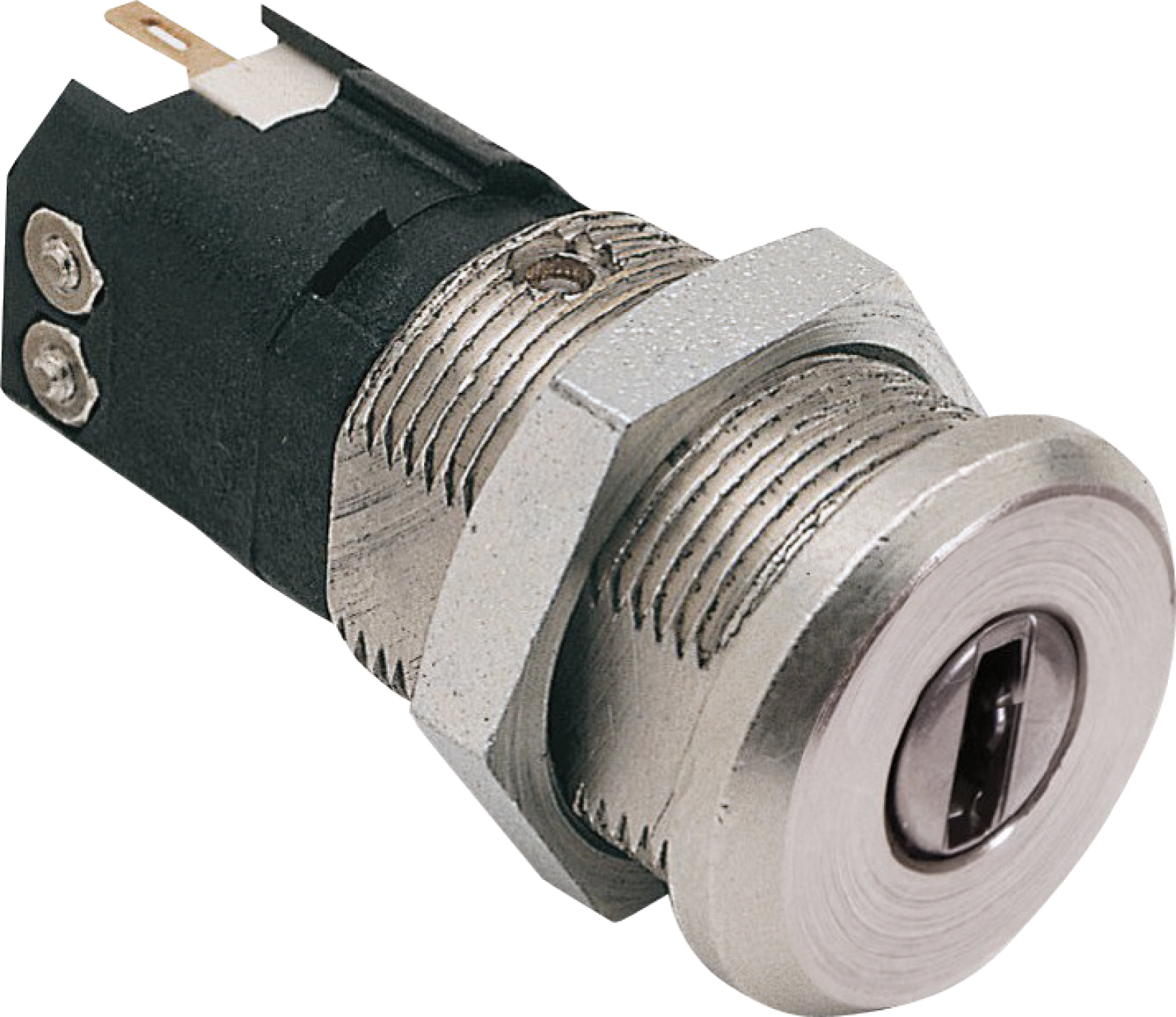

eCLIQ Microswitch camlock. Electronic, optionally available as mechanical (rotary-secured)

Available as key removable in OFF position only or key removable in both ON and OFF positions - 60° turn

Brass cylinder housing components

Standard finish, satin nickel-plated (-SN)

eCLIQ cylinders are maintenance-free.

Splash-proof IP54 as standard

IP55 Dust and rain protection cap available (-WP)

Optionally DIN EN 15684 with anti drilling protection class 2 (-AD)

Optionally available with ATEX approval for use in potentially-explosive atmospheres in Zone 1 - II 2G EX IB IIB T4 Gb (-ATEX)

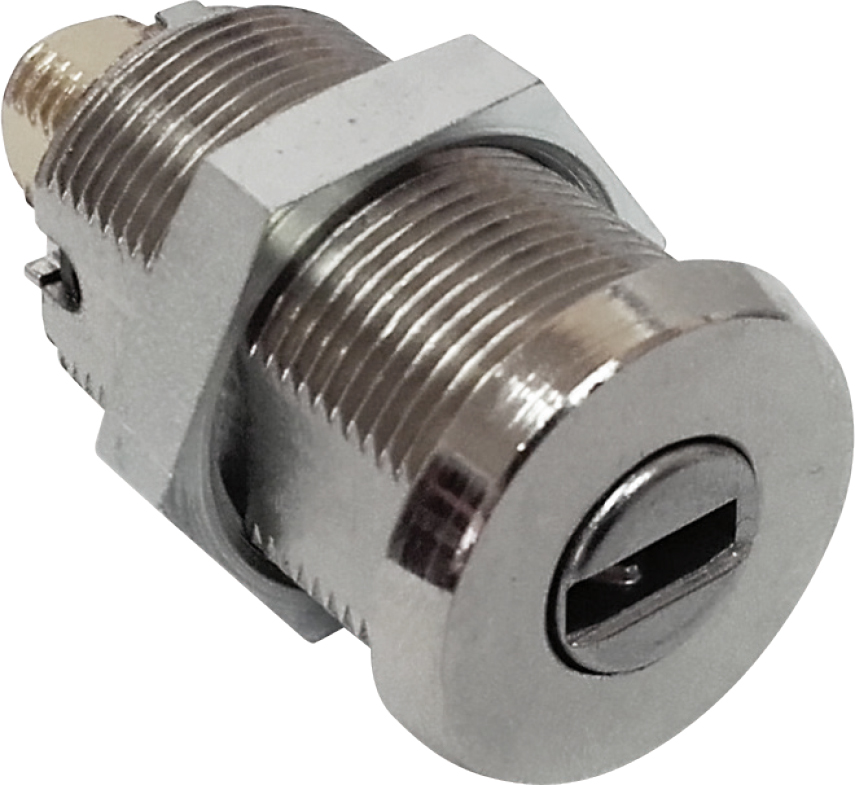

eCLIQ Camlock M21 body. Electronic, optionally available as mechanical (rotary-secured)

Brass cylinder housing components

Standard finish, satin nickel-plated (-SN)

Available with 90° or 180° turn clockwise or anti-clockwise

Available as 1 or 2 position key removal (at 0° and 180°)

Multiple cam fixings available to accept different cam types - M10 7.5mm horizontal, M10 8mm square, M10 8mm vertical, M7 5mm vertical, M7 6.8mm square

eCLIQ cylinders are maintenance-free for up to 200,000 cycles

Splash-proof IP54 as standard

IP55 Dust and rain protection cap available (-WP)

Optionally anti drilling protection class 2 (-AD)

Optionally available with ATEX approval for use in potentially-explosive atmospheres in Zone 1 - II 2G EX IB IIB T4 Gb (-ATEX)

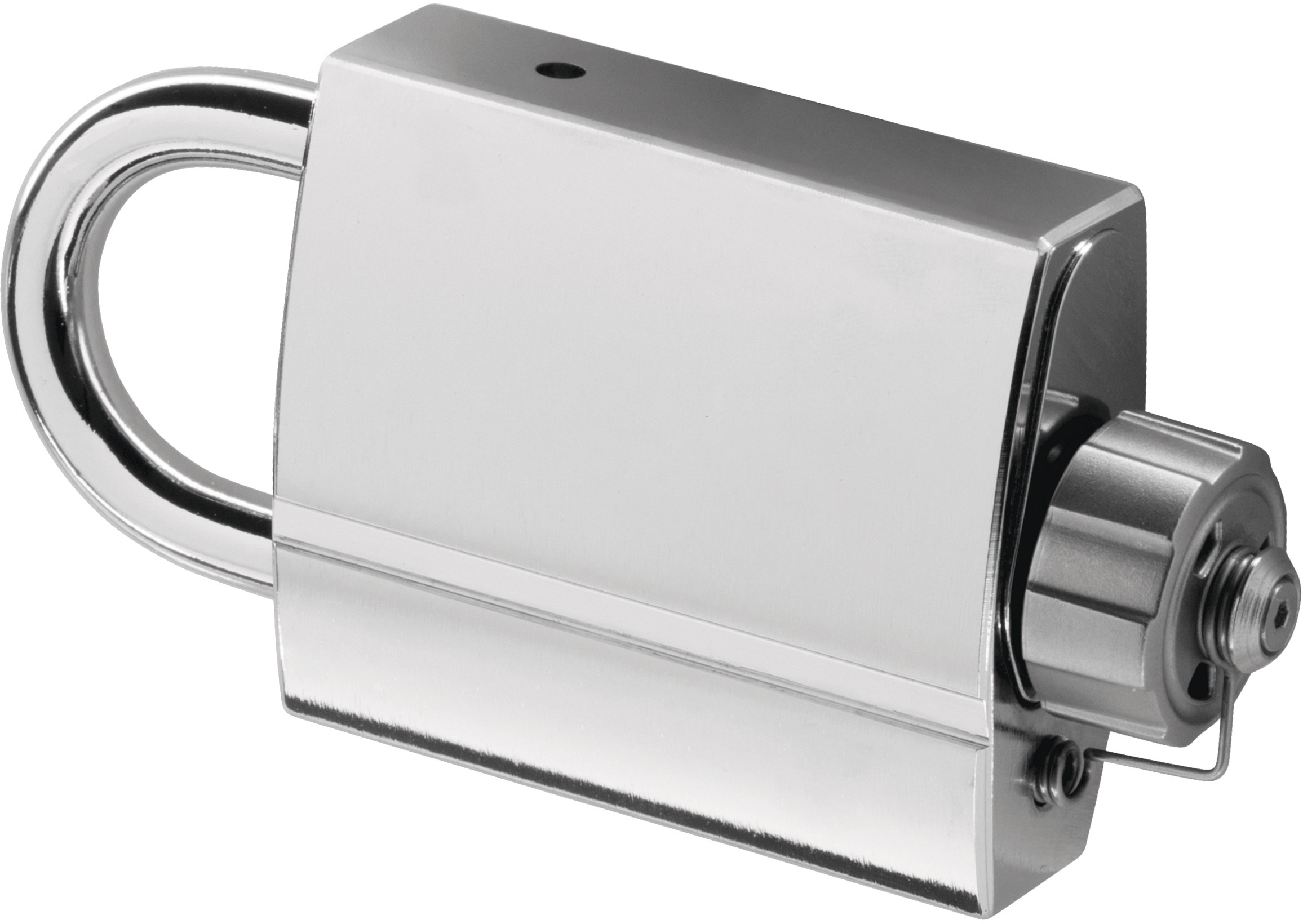

The eCLIQ N318 electronic cylinder combines intelligent access control with robust mechanical security, providing a dependable and low‑maintenance locking solution for modern facilities. Powered by the eCLIQ key, the cylinder requires no batteries or wiring in the door, reducing servicing needs while maintaining consistent performance.

Designed for flexibility and everyday commercial use, the N318 supports controlled and auditable access across a wide range of environments.

The eCLIQ N319 electronic cylinder combines intelligent electronic access control with high‑quality mechanical security, providing a reliable and low‑maintenance locking solution for a wide range of applications. Powered by the eCLIQ key, the cylinder operates without batteries or wiring in the door.

Designed for flexibility and durability, the N319 is ideal for organisations requiring controlled, auditable access while maintaining the familiarity and strength of a mechanical cylinder.

The eCLIQ N316 electronic cylinder delivers reliable access control by combining robust mechanical security with intelligent electronic functionality. Powered by the eCLIQ key, the N316 operates without batteries or wiring in the door, reducing maintenance while maintaining dependable performance.

Designed for versatility, the N316 is well suited to a wide range of commercial and organisational environments where controlled and auditable access is required.

A future-proof digital portfolio for high-level critical infrastructure protection. The Digital Portfolio for Critical Infrastructure enables a fully connected future across your entire operation, across all industries. This is the start of a new digital era within critical infrastructure performance excellence.

PROTEC² CLIQ padlock, protected from weather with sealed shackle and weather protection cap for the keyhole, body made of brass and shackle made of hardened steel

PLLW330T is suitable for medium security applications such as gates and warehouses. Especially suitable for wet and dirty conditions.

CLIQ products are powered by a key battery. For the user interface, the product uses CLIQ Web Manager or CLIQ Local Manager which enables access monitoring and management of access rights, from anywhere and at any time.

As a locking solution, CLIQ products combine the security of Abloy's mechanical key systems with easy electronic access management.

Double-secured locking and access control. PROTEC² CLIQ padlock for high security locking. Hardened steel body. Super Weather Proof. Seal cap. LPS 1654 Grade 2+. Patented PROTEC² (T) key system.

PROTEC² CLIQ padlock, protected from weather with sealed shackle and weather protection cap for the keyhole, shackle and body made of case-hardened steel

PLLW340T is suitable for high security applications where weather protection is required such as warehouses, shipping containers, gates and construction equipment. Especially durable in wet and dirty conditions.

CLIQ products are powered by a key battery. For the user interface, the product uses CLIQ Web Manager or CLIQ Local Manager which enables access monitoring and management of access rights, from anywhere and at any time.

As a locking solution, CLIQ products combine the security of Abloy's mechanical key systems with easy electronic access management.

PROTEC² CLIQ padlock, protected from weather with sealed shackle and weather protection cap for the keyhole, shackle and body made of case-hardened steel.

PLLW350T is suitable for high security applications where weather protection is required such as warehouses, shipping containers, gates, construciton equipment and trucks. Especially durable in wet and dirty conditions.

CLIQ products are powered by a key battery. For the user interface, the product uses CLIQ Web Manager or CLIQ Local Manager which enables access monitoring and management of access rights, from anywhere and at any time.

As a locking solution, CLIQ products combine the security of Abloy's mechanical key systems with easy electronic access management.

A future-proof digital portfolio for high-level critical infrastructure protectionThe Digital Portfolio for Critical Infrastructure enables a fully connected future across your entire operation, across all industries. This is the start of a new digital era within critical infrastructure performance excellence.

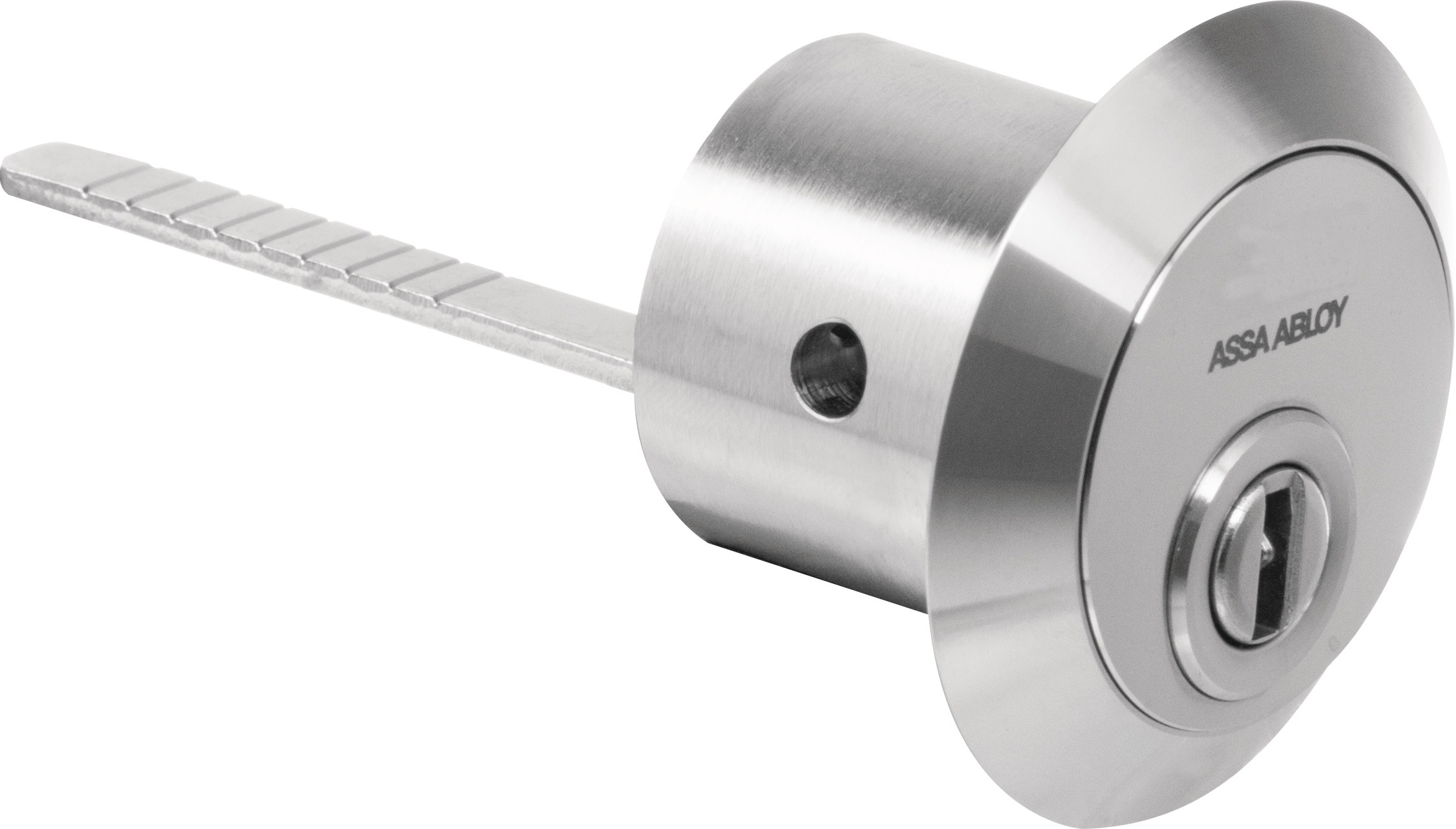

PROTEC² CLIQ single cylinder for mortice lock cases.Scandinavian oval type.

Standard 30mm cylinder length can be extended in 5mm increments.
