ePED

Product description-

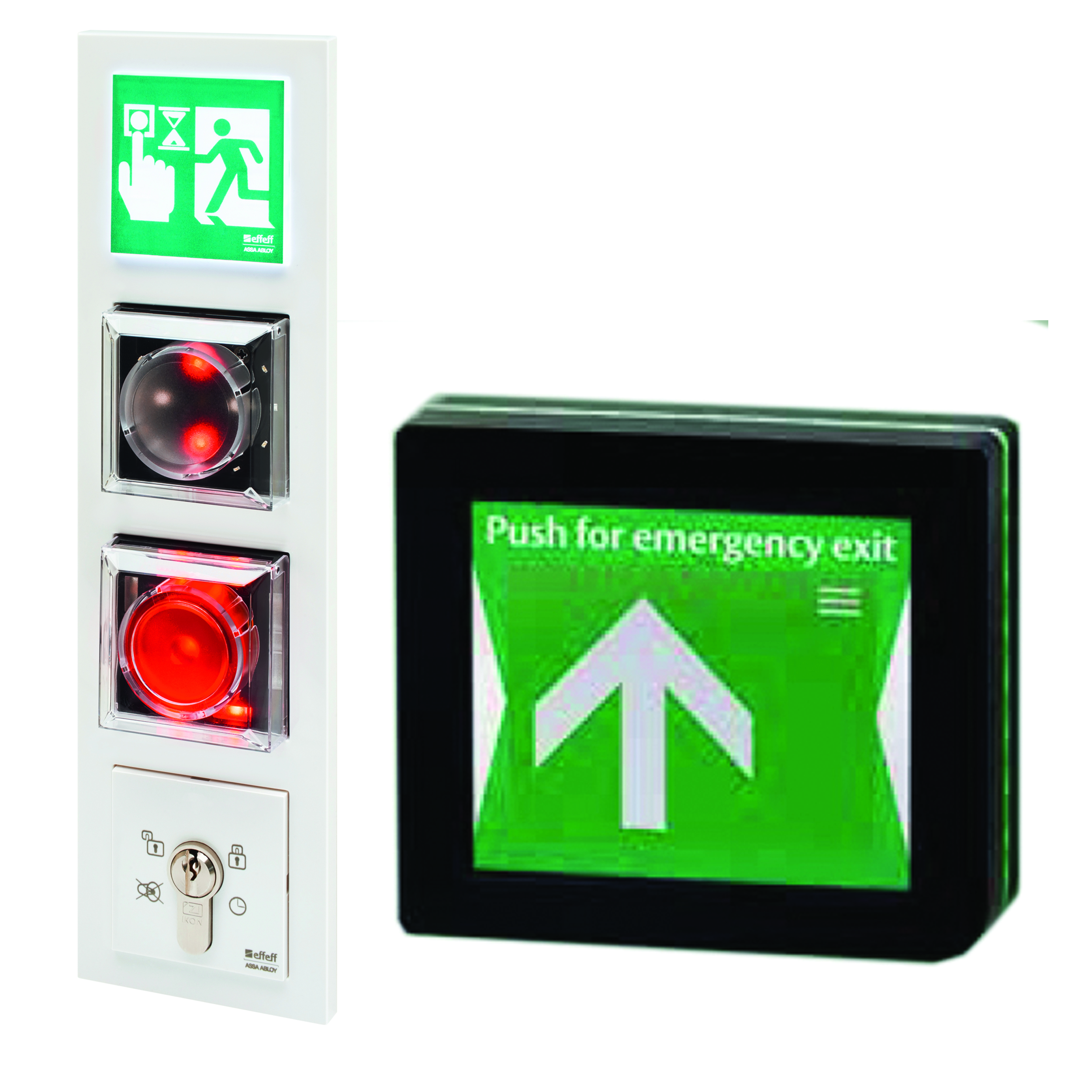

Single module in Hi-O bus technology with optimised operating concept. To control locking/unlocking, temporary unlocking, alarm acknowledgement through a potential-free contact such as card reader, door code systems or others. Or to conventionally control through key switch, tested in compliance with EltVTR.

Overview of advantages-

• Emergency button lights up; features reusable, non-detachable, shatterproof protective cover
• Integrated visual door status indicator with high-performance LEDs (green / red / yellow) signalling unlocked / locked / alarm status
• Emergency button sign (arrow pointing downwards)
• Acoustic signal and tampering contact
• Adjustable time period for delayed permanent release, temporary release, pre-alarm, alarm interval, guidance signal
• Monitoring of time door is open in the case of temporary unlocking
• With two inputs featuring adjustable parameters for: control via an external operating element or; temporary release via AC system or; emergency locking via fire alarm system or; unlocking via switching timer.
• With a relay output featuring adjustable parameters for: door locked/unlocked, door open/closed, common alarm, individual alarm or activation of electric strike/ motorised lock/ revolving door drive/ arrestor system.
• System connector for setting parameters with ePED^® service interface and software for MS Windows
• Connections: SYSCON-4: Hi-O bus; SYSCON-5: operating unit, screw/ plug-in terminals

Standard for 55 mm modules.

Product description-

Individual module in Hi-O bus technology for displaying the expiring time delay.

Integrated visual door status indicator with high-performance LEDs (green / red / yellow) signalling unlocked / locked / alarm status

Product description-

For marking of the emergency button in electrical controlled escape route system.

With active background lightening and with self-adhesive pictogram according to DIN EN 13637:2015.

For connection to effeff escape door modules 1384/1385/1386D00 via system connector.

A connection cable is included in the delivery.

The use is possible in combination with door terminal 1380.

Suitable for 55 mm frames.

Product description-

For configuring ePED^® products with system connector for the ePED^® service interface.

The configuration takes place via the ePED^® service software for MS Windows.

The ePED^® service software can be downloaded from the website assaabloy.de under Service / Download.

Product description-

For the connection of conventional devices and message control functions to the Hi-O bus. The inputs and outputs can be freely configured via the ePED^® service interface and software for MS Windows for Hi-O messages and control functions.
