Accessories

Accessories for the Escape Door System

8 results

effeff Power Supply Unit
Power Supply Units for all effeff strikes and locks. Available in multiple Amp and Voltage
EDS Replacement Cover
PLASTIC COVER FOR 1386 TERMINALS (OUTER COVER ONLY)

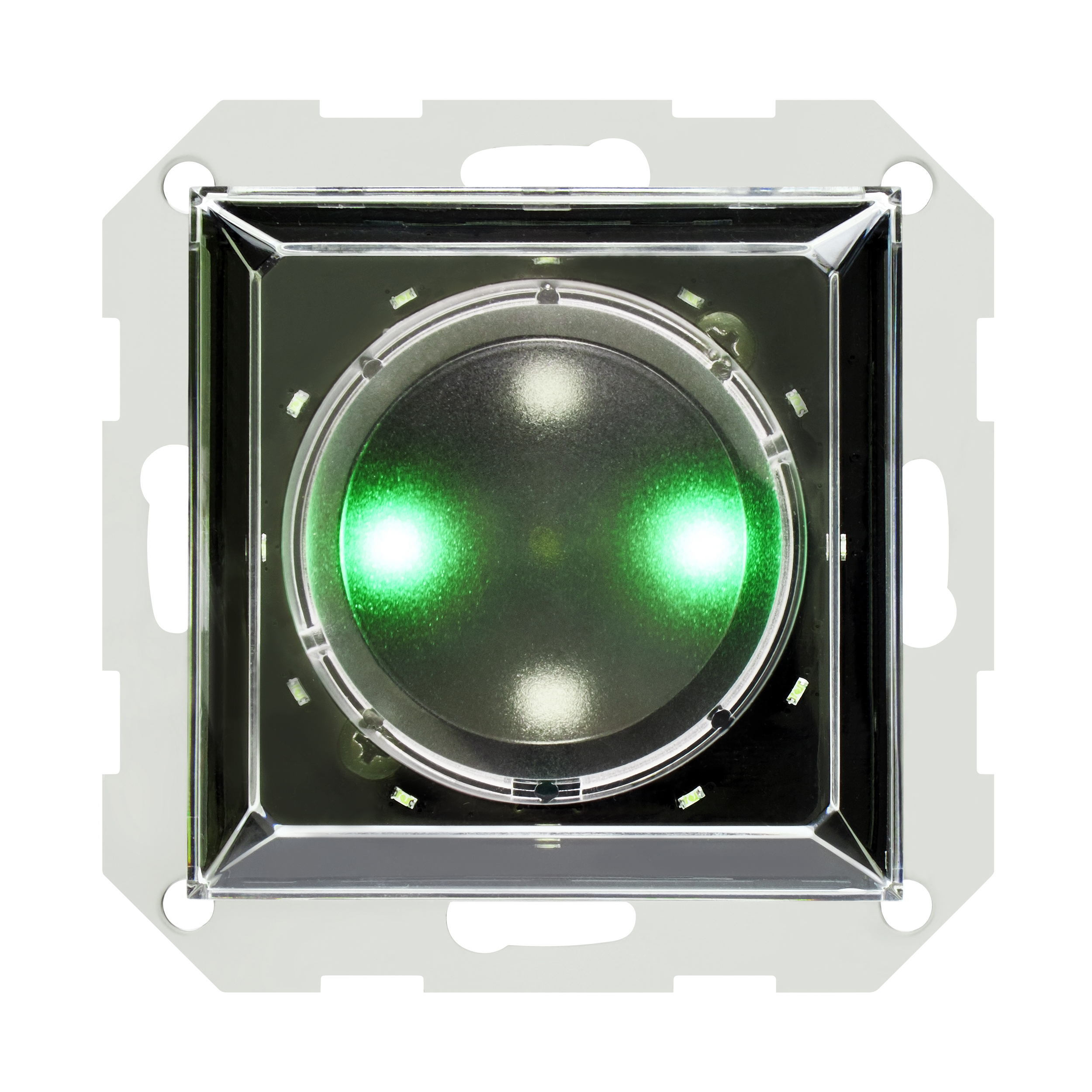

EDS Button
Product description-
Single module in Hi-O bus technology with optimised operating concept. To control locking/unlocking, temporary unlocking, alarm acknowledgement through a potential-free contact such as card reader, door code systems or others. Or to conventionally control through key switch, tested in compliance with EltVTR.
Overview of advantages-
Emergency button lights up; features reusable, non-detachable, shatterproof protective cover
Integrated visual door status indicator with high-performance LEDs (green / red / yellow) signalling unlocked / locked / alarm status
Emergency button sign (arrow pointing downwards)
Acoustic signal and tampering contact
Adjustable time period for delayed permanent release, temporary release, pre-alarm, alarm interval, guidance signal
Monitoring of time door is open in the case of temporary unlocking
With two inputs featuring adjustable parameters for: control via an external operating element or; temporary release via AC system or; emergency locking via fire alarm system or; unlocking via switching timer.
With a relay output featuring adjustable parameters for: door locked/unlocked, door open/closed, common alarm, individual alarm or activation of electric strike/ motorised lock/ revolving door drive/ arrestor system.
System connector for setting parameters with ePED^® service interface and software for MS Windows
Connections: SYSCON-4: Hi-O bus; SYSCON-5: operating unit, screw/ plug-in terminals
EDS Countdown
Standard for 55 mm modules.
Product description-
Individual module in Hi-O bus technology for displaying the expiring time delay.
Integrated visual door status indicator with high-performance LEDs (green / red / yellow) signalling unlocked / locked / alarm status
EDS Sign
Product description-
For marking of the emergency button in electrical controlled escape route system.
With active background lightening and with self-adhesive pictogram according to DIN EN 13637:2015.
For connection to effeff escape door modules 1384/1385/1386D00 via system connector.
A connection cable is included in the delivery.
The use is possible in combination with door terminal 1380.
Suitable for 55 mm frames.
EDS Cable
Product description-
For configuring ePED^® products with system connector for the ePED^® service interface.
The configuration takes place via the ePED^® service software for MS Windows.
The ePED^® service software can be downloaded from the website assaabloy.de under Service / Download.
EDS Interface
EDS INTERFACE FOR LOCKING DEVICE. Can be supplied with or without housing
EDS IO Unit
Product description-
For the connection of conventional devices and message control functions to the Hi-O bus. The inputs and outputs can be freely configured via the ePED^® service interface and software for MS Windows for Hi-O messages and control functions.
