Terminals

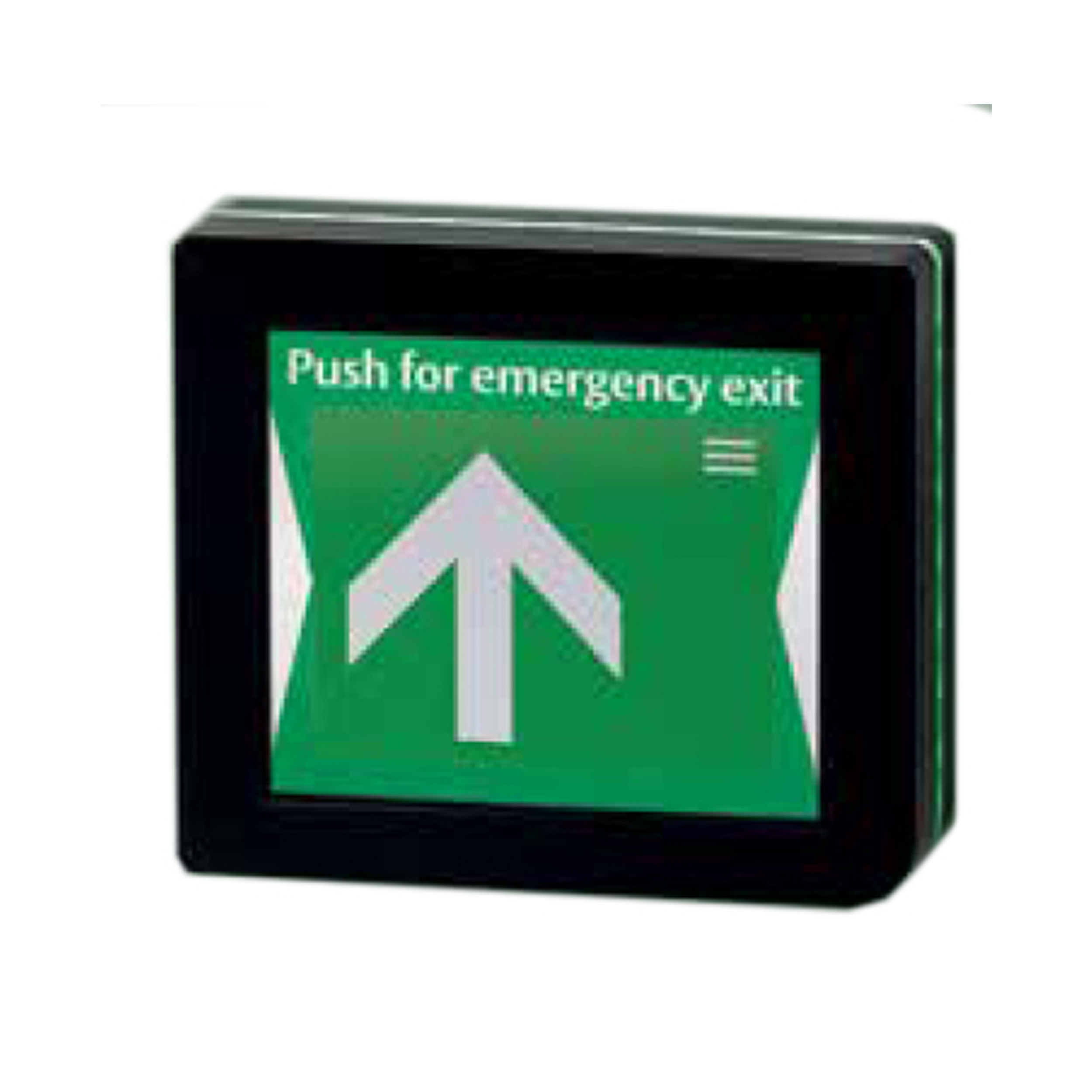

ePED Display Door Terminal can be used with or without time delay. To be used as a complete package with It has been tested according to the requirements of BS EN 13637:2015 (electrically controlled exit systems for use on escape routes)

Product description-

For use with or without time delay, with 4-wire-bus-connection in HiO technology.

Emergency opening panel to operate and control the electrical locking elements on escape routes.

The time delay is tested according to the requirements of DIN EN 13637:2015 (electrically controlled exit systems for use on escape routes) as per EN 61508 Safety Integrity Level 2 (SIL2).

Time delay applications are subject to local Building. Regulations. Additional permissions may be required.

Overview of advantages-

• Emergency door release by pushing the display unit
• Pictogram with situational display of the operating status
• Status indication via illuminated ring
• Acoustic signalling of alarms or disruptions with the orientation signal function
• Display of the optional time delay
• Operation through touch display with authorisation code
• Configuration of the escape door system
• Operation and control of electrical locking elements on escape routes
• Inputs for connection of release from fire alarm system and for temporary release through an access control system

Note-

• For installation in flush mounted sockets for light switch systems.

EDS door terminal.
