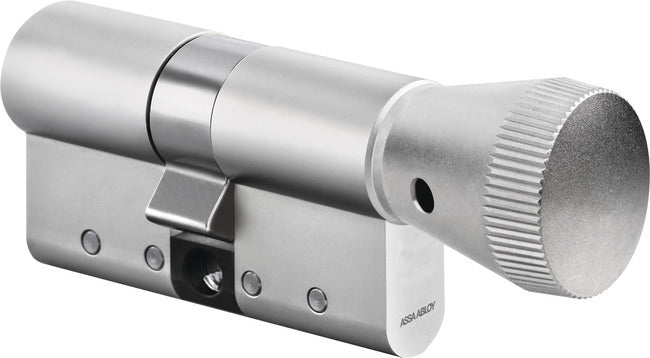

Ecliq Euro Cylinder and Turn

The eCLIQ N534 electronic cylinder combines advanced electronic access control with proven mechanical security, offering a reliable and low‑maintenance solution for demanding environments. Powered entirely by the intelligent eCLIQ key, the N534 requires no batteries or wiring in the door.

Built for high‑security applications, the N534 provides enhanced durability, flexible access management, and audit capability, making it ideal for organisations that need greater control without compromising on robustness.

  • CY201 eCLIQ

    Scandinavian Oval cylinder eCLIQ

  • CY310 eCLIQ

    eCLIQ UK Oval Cylinder is an electronic access control cylinder designed for UK oval lock applications, combining high-security mechanical locking with intelligent eCLIQ access management. Splash-proof to IP54 as standard, it is suitable for a wide range of commercial environments. An optional IP55 weather protection cap is available for enhanced dust and rain resistance, providing reliable performance in more demanding conditions.

  • CY405 eCLIQ

    RIM cylinder eCLIQ.

  • N063 eCLIQ

    External cylinder eCLIQ

  • Ecliq Euro Double Cylinder

    These cylinders support flexible permission management, allowing access rights to be updated quickly using electronic keys—without the need to remove or replace the cylinder. Each access event can be recorded, providing valuable audit trails for improved security oversight and accountability. The N530 is ideal for environments where access rights change frequently or where detailed access monitoring is required.

  • N530 Optional Extras

    These cylinders support flexible permission management, allowing access rights to be updated quickly using electronic keys—without the need to remove or replace the cylinder. Each access event can be recorded, providing valuable audit trails for improved security oversight and accountability. The N530 is ideal for environments where access rights change frequently or where detailed access monitoring is required.

  • eCLIQ Double Euro CLIQ/Mech

    Profile-double cylinder eCLIQ. Electronic one side, Mechanical (rotary secured) one side.


    Brass cylinder housing components.


    Standard finish, satin nickel-plated (-SN).


    Other finishes available - Polished Brass (PB), Satin Brass (SB), Satin Chrome (SC).


    Basic cylinder length 61 mm A/B (Length:30/30) - other installation lengths available - flexible modular system (5mm increments).


    Optional, differing basic cylinder length of 56 mm - A/B (Length:28/28).


    Both side locking and 360° free-wheeling function as standard. Cam made of break-proof, corrosion-resistant stainless steel. Standard locking cam position 30°; differing locking positions available.


    eCLIQ cylinders are maintenance-free.


    Splash-proof IP54 as standard.


     IP55 Dust and rain protection cap available for one or both sides (-WP).


    Optionally DIN EN 15684 with anti drilling protection class 2 (-AD).


    Optionally available with ATEX approval for use in potentially-explosive atmospheres in Zone 1 - II 2G EX IB IIB T4 Gb (-ATEX).
