Standard Stile

Push&pull operated solenoid lock for solid doors.

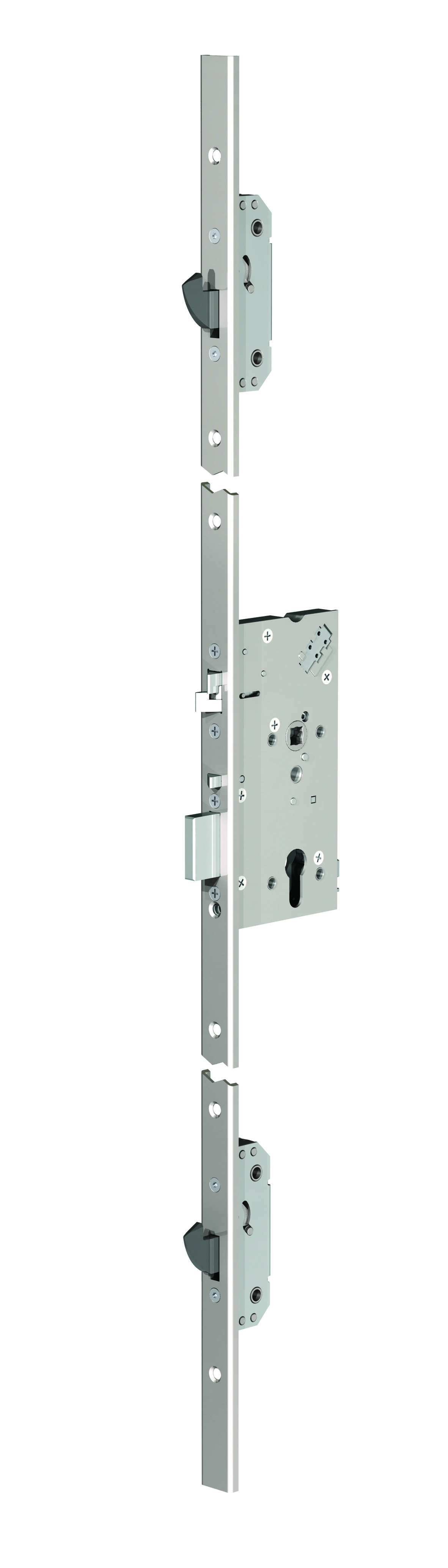

Electric Solenoid Multipoint Lockcase EL566.

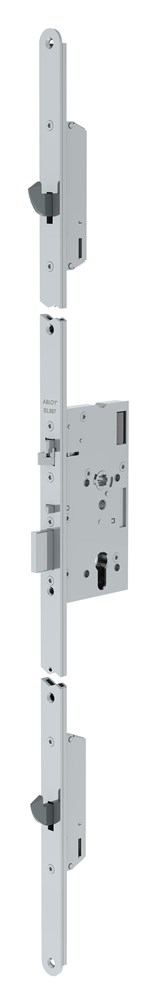

Electric Solenoid Multipoint Lockcase EL567

Electric Solenoid Lockcase EL580

Electric Solenoid Lockcase EL582

Handle controlled solenoid operated lockcase. The lock can be switched between fail-locked and fail-unlocked states. The locks can be electrically controlled by access control system or by a remote control system such as timer, keypad or push button. The locks can be used both in exit doors and fire rated doors. only the outside handle is electrically controlled. The lock can always be opened by the inside handle. Mechanical opening by cylinder is always possible. Recommended to be used in interior doors of business premises, public buildings, hospitals, educational premises etc. Indications to EAC.

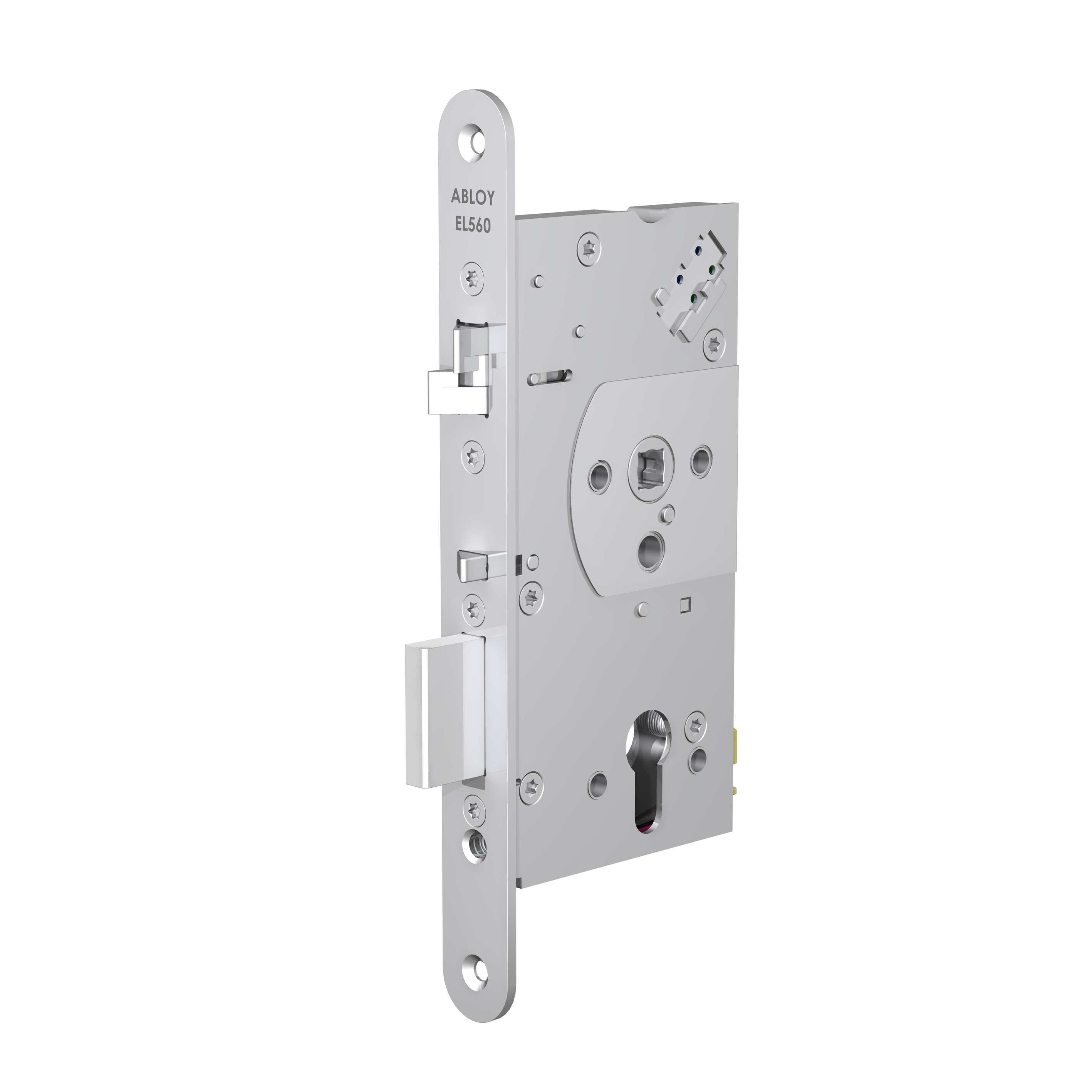

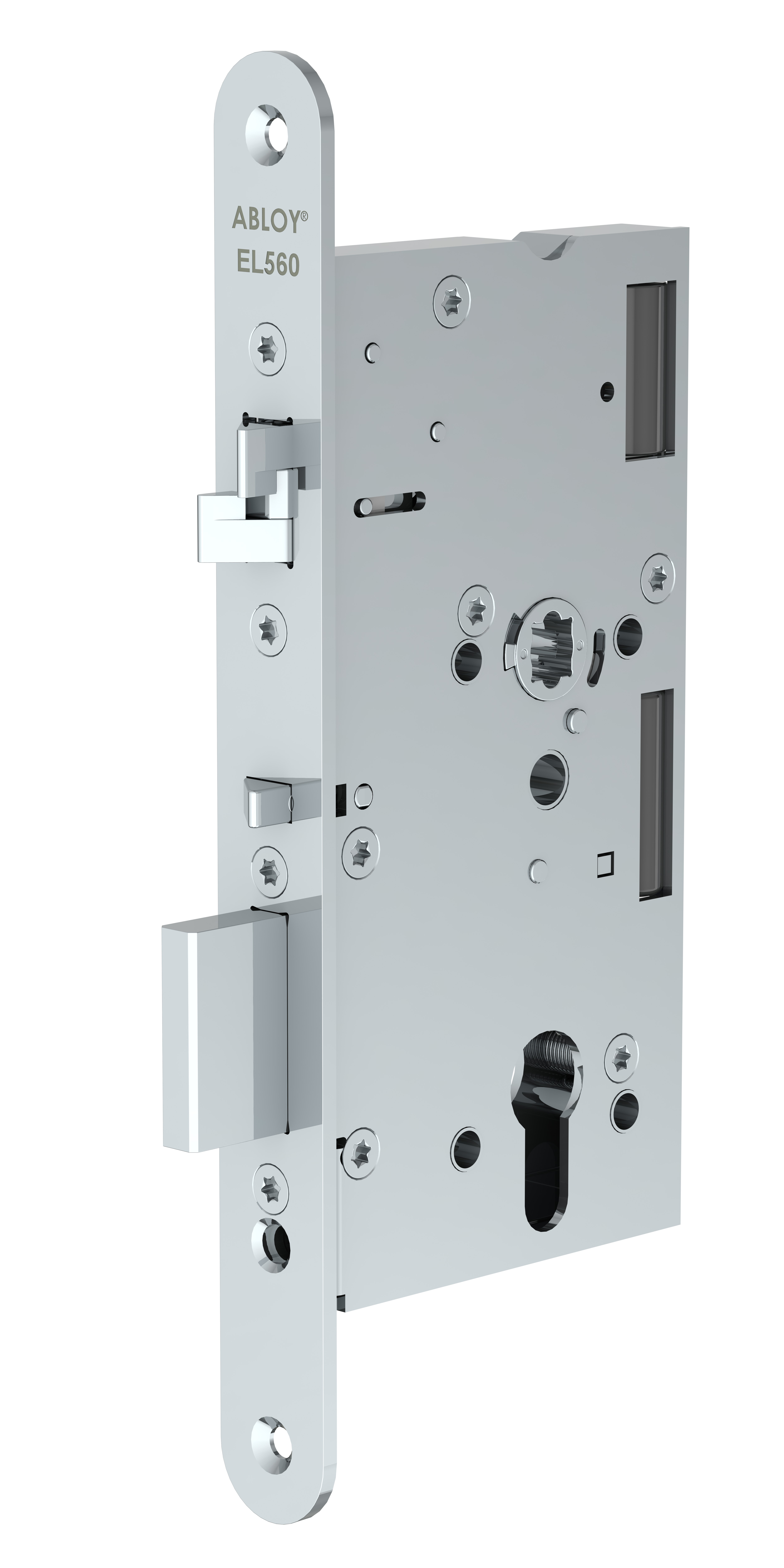

Handle controlled locks are best suited in medium traffic doors. The locks can be electrically controlled by access control systems or by a remote control system, such as a timer, keypad or push button. The locks can be used in both exit doors and fire rated doors. EL560L has the same dimensions and electrical indications as the EL560. All the same fittings and accessories can be used, for example when replacing EL560 with EL60L. Recommended for interior doors of public and commercial premises. Can be used in both wired and wireless applications. The lock case has an operating voltage between 3.6VDC - 27.6VDC. This means that it can be operated by battery powered systems. Only outside handle is electrically controlled. The lock can always be opened by the inside handle. Mechanical opening by cylinder is always possible.

Handle controlled locks are best suited in medium traffic doors. The lock can be switched between fail-locked and fail-unlocked states. The locks can be electrically controlled by access control system or by a remote control system such as timer, keypad or push button. The locks can be used fire rated doors. Both inside and outside handles are electrically controlled. Mechanical opening by cylinder or thumbturn is always possible. Recommended to be used in interior doors of business premises, public buildings, hospitals, educational premises etc. Indications to EAC.

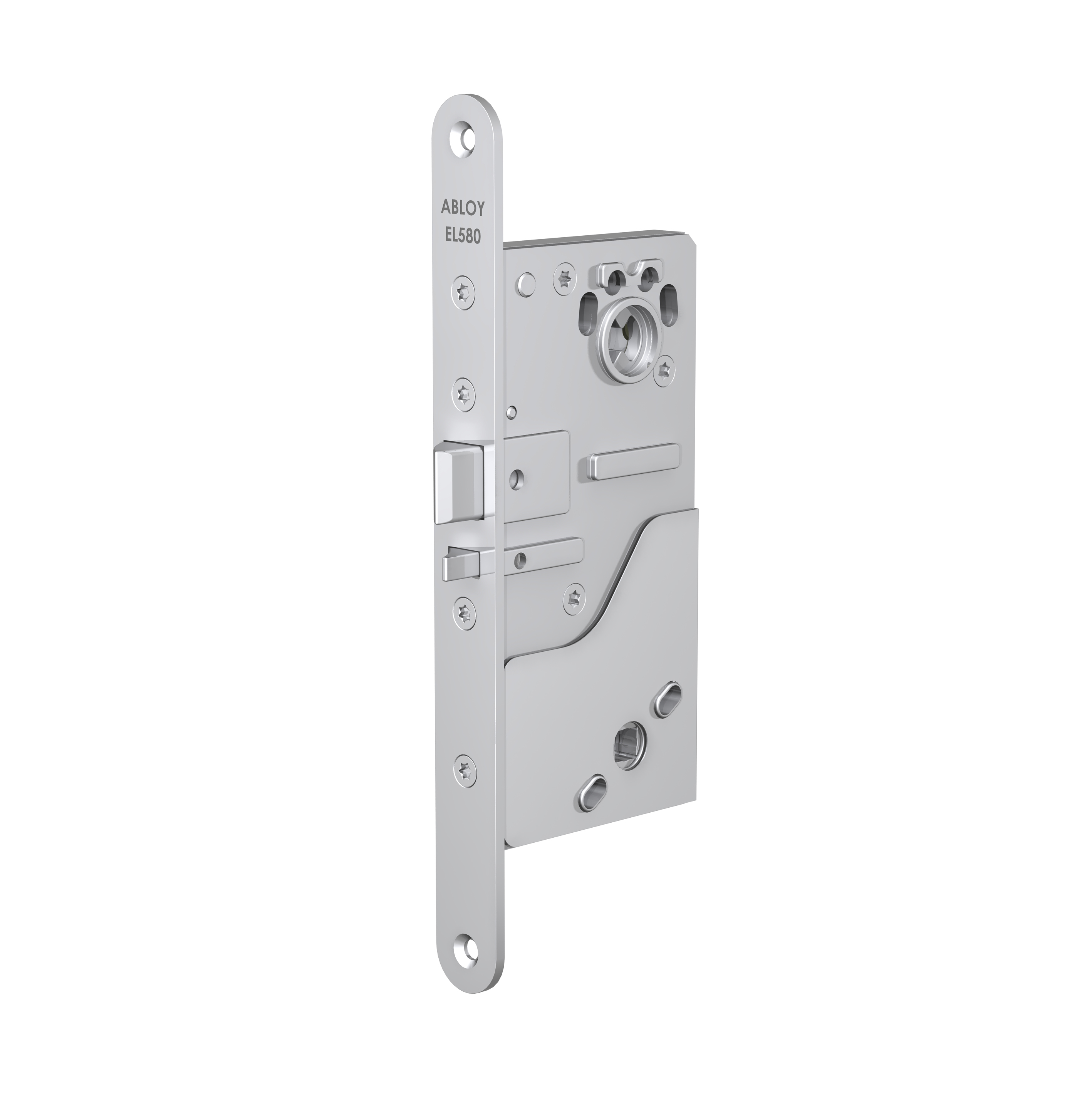

Handle controlled locks are best suited in medium traffic doors. The locks can be electrically controlled by access control system or by a remote control system such as timer, keypad or push button. The locks can be used both in exit doors and fire rated doors. Handle controlled locks can be set to function as fail locked or as fail unlocked. In the fail locked setting, the lock can be opened by handle when power is on and cannot be opened by handle when power is off. In the fail unlocked setting, the electrical function is reversed. The locks are always automatically deadlocked when the door is closed. In EL580 the outside handle is electrically controlled. The lock can always be opened by the inside handle or by panic bar. In order to function correctly, the handle requires a split spindle. Mechanical opening by cylinder is always possible. Cannot be used in doors with door automatics.
