Industrial Locks

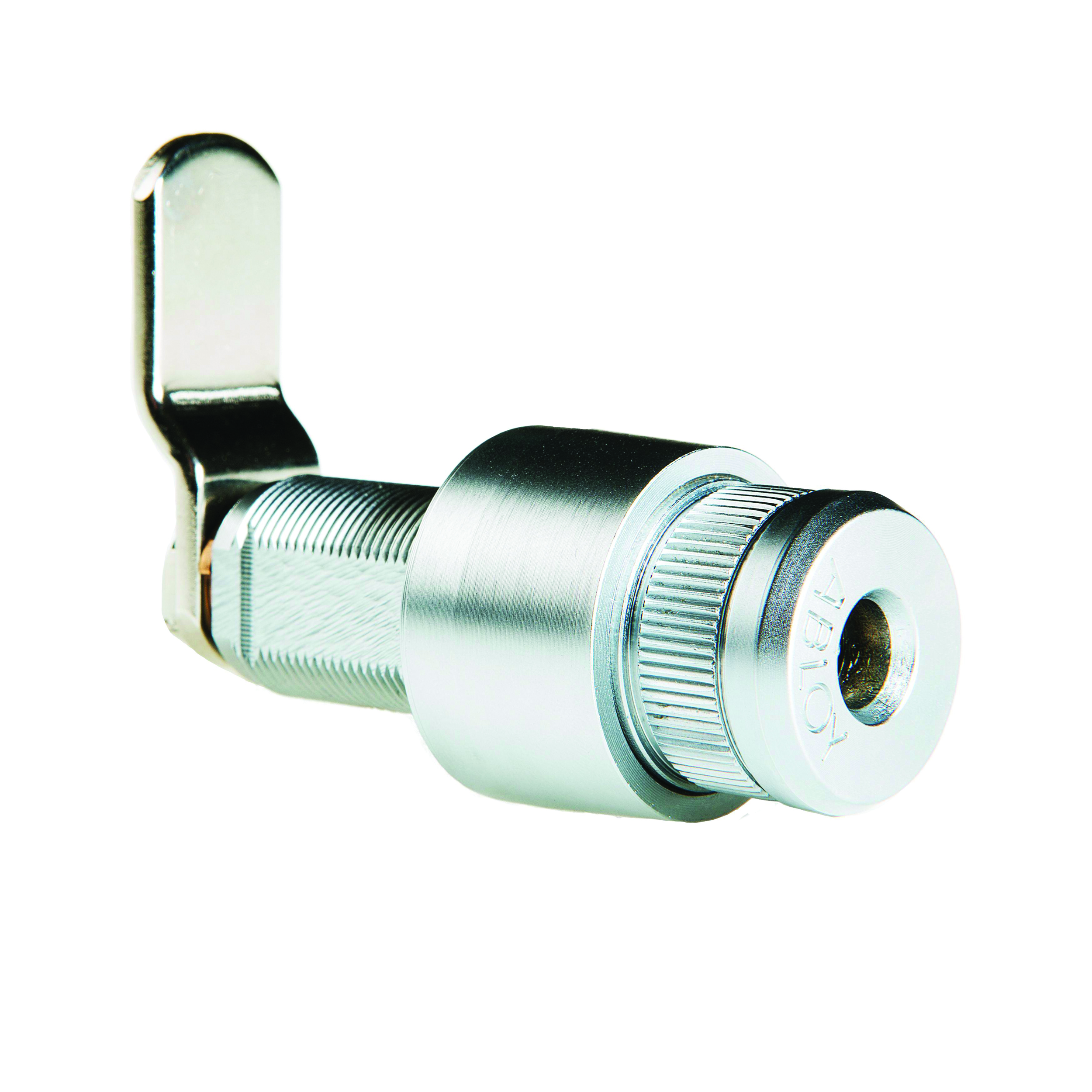

eCLIQ Camlock M21 body. Electronic, optionally available as mechanical (rotary-secured)

Brass cylinder housing components

Standard finish, satin nickel-plated (-SN)

Available with 90° or 180° turn clockwise or anti-clockwise

Available as 1 or 2 position key removal (at 0° and 180°)

Multiple cam fixings available to accept different cam types - M10 7.5mm horizontal, M10 8mm square, M10 8mm vertical, M7 5mm vertical, M7 6.8mm square

eCLIQ cylinders are maintenance-free for up to 200,000 cycles

Splash-proof IP54 as standard

IP55 Dust and rain protection cap available (-WP)

Optionally anti drilling protection class 2 (-AD)

Optionally available with ATEX approval for use in potentially-explosive atmospheres in Zone 1 - II 2G EX IB IIB T4 Gb (-ATEX)

eCLIQ Microswitch camlock. Electronic, optionally available as mechanical (rotary-secured)

Available as key removable in OFF position only or key removable in both ON and OFF positions - 60° turn

Brass cylinder housing components

Standard finish, satin nickel-plated (-SN)

eCLIQ cylinders are maintenance-free for up to 200,000 cycles

Splash-proof IP54 as standard

IP55 Dust and rain protection cap available (-WP)

Optionally DIN EN 15684 with anti drilling protection class 2 (-AD)

Optionally available with ATEX approval for use in potentially-explosive atmospheres in Zone 1 - II 2G EX IB IIB T4 Gb (-ATEX)
