ABLOY cylinders

All ABLOY locks are based on the unique operating principle of rotating detainer discs.

With no springs or pins to wear, jam or freeze, the mechanism provides a smooth and reliable functionality, excellent resistance against physical attack and maximum resistance to hostile and severe environments. The extensive product range includes cam and cabinet locks, switch locks, rim locks, drop bolts, and key deposit locks. The core always remains the same but the outer covering can be changed according to the need of local standards and applications in more than 80 countries worldwide.

Products

  • ANSI North American cylinder CY402

    ANSI North American round cylinder. Used with mortice lock cases. Case hardened steel. Cylinder lenght 1" (25.4 mm)

    Available in cylinder systems

    ABLOY PROTEC2, ABLOY PROTEC and ABLOY NOVEL

  • ANSI North American cylinder CY403

    ANSI North American round cylinder. Used with rim locks and mortice lock cases. Case hardened steel. Cylinder lenght 1 1/4" (31.75 mm)

    Available in cylinder systems

    ABLOY PROTEC2, ABLOY PROTEC and ABLOY NOVEL

  • ANSI North American cylinder CY404

    ANSI North American round cylinder. Used with mortice lock cases. Brass cylinder housing. Cylinder lenght 1" (25.4 mm)

    Available in cylinder systems

    ABLOY PROTEC2, ABLOY PROTEC and ABLOY NOVEL

  • ANSI North American cylinder CY406

    North American style knob cylinder.

    Available in cylinder systems

    ABLOY PROTEC2, ABLOY PROTEC and ABLOY NOVEL

  • ANSI North American cylinder CY407

    North American style knob cylinder.

    Available in cylinder systems

    ABLOY PROTEC2, ABLOY PROTEC and ABLOY NOVEL

  • ANSI North American cylinder CY408

    North American style knob cylinder.

    Available in cylinder systems

    ABLOY PROTEC2, ABLOY PROTEC and ABLOY NOVEL

  • ANSI North American cylinder CY409

    North American style knob cylinder.

    Available in cylinder systems

    ABLOY PROTEC2, ABLOY PROTEC and ABLOY NOVEL

  • ANSI North American cylinder CY410

    North American style knob cylinder.

    Available in cylinder systems

    ABLOY PROTEC2, ABLOY PROTEC and ABLOY NOVEL

  • Australian door cylinder CY414

  • Australian door cylinder CY501

    Australian style knob cylinder.

    Available in cylinder systems

    ABLOY PROTEC2, ABLOY PROTEC and ABLOY NOVEL

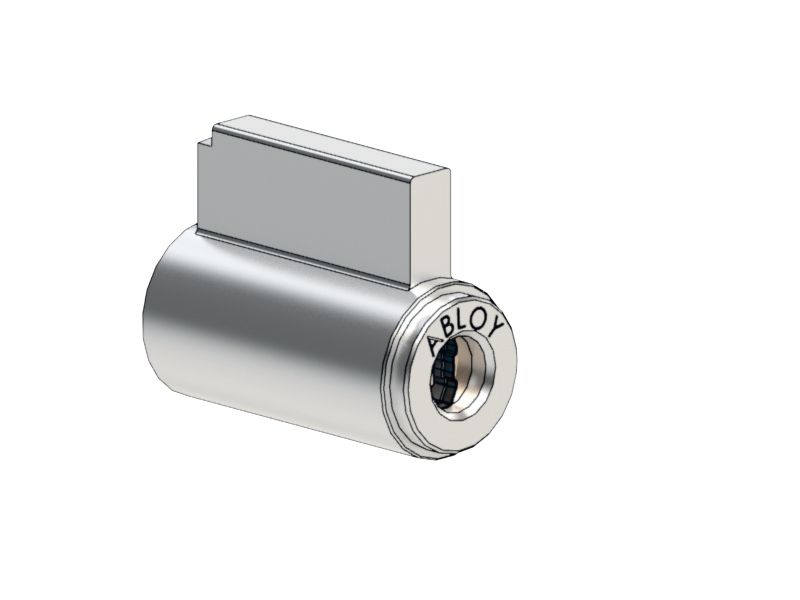

  • Australian door cylinder CY502

    Australian style knob cylinder.

    Available in cylinder systems

    ABLOY PROTEC2, ABLOY PROTEC and ABLOY NOVEL

  • Europrofile DIN cylinder CY321

    Europrofile DIN single cylinder with adjustable length (5 mm steps) and cam position.

    Available in cylinder systems

    ABLOY PROTEC2, ABLOY PROTEC and ABLOY NOVEL

Showing 12 of 38
