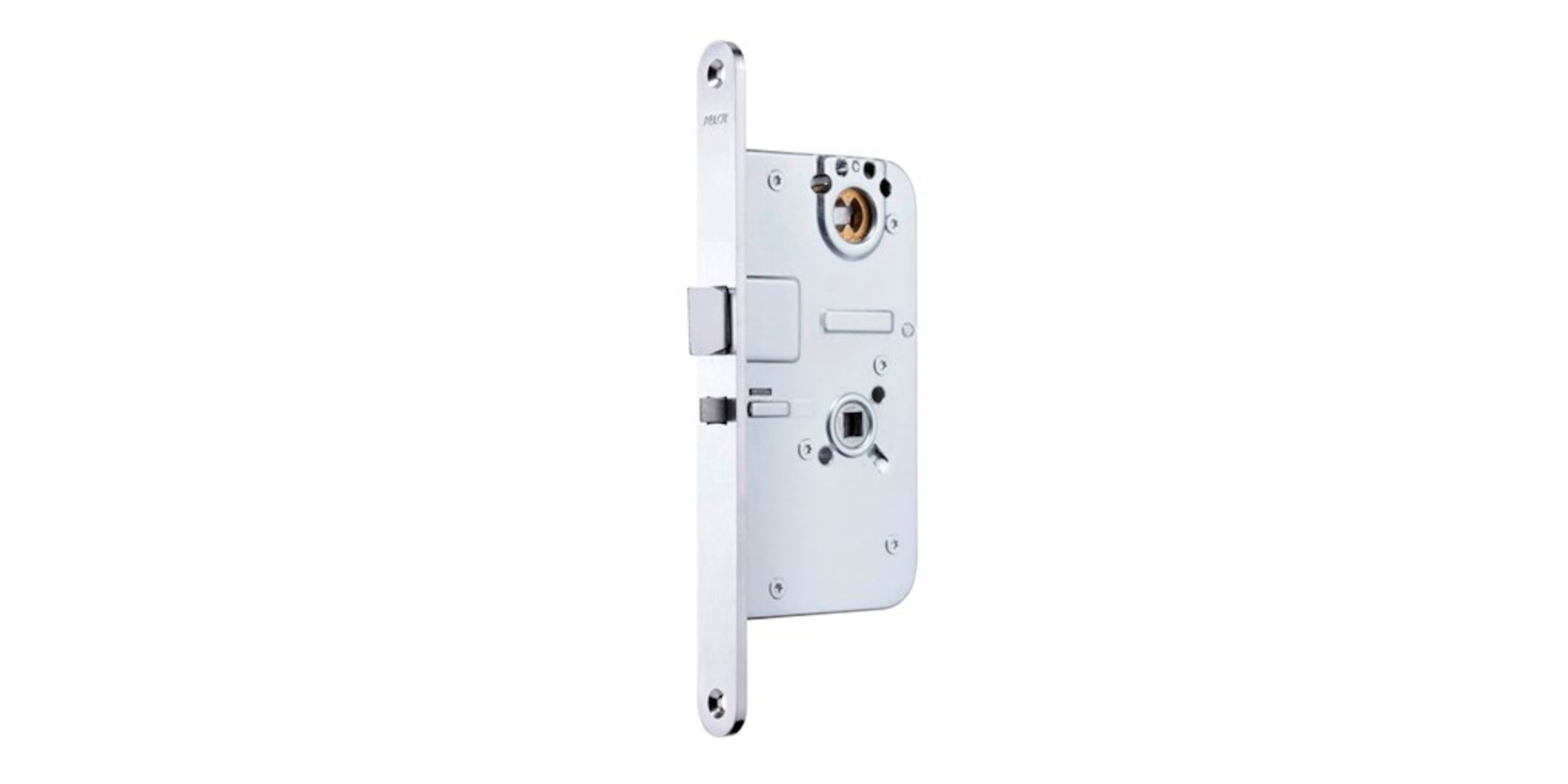

Lock case LE184

The door is opened from outside with a door pull. The lock case fulfils the requirements of the European standard for exit products SFS-EN179 and SFS-EN1125 and the requirements of the lock case standard SFS-EN12209. The lock is always opened from the inside by a lever handle or panic bar. The lock is deadlocked always when the door is closed. Latchbolt protrudes 17 mm.
The lock case works with the LP711, LP714, LP721, and LP731 striker plates.

Fire resistance: solid doors EI1 15 - EI1 30 and EI2 15 - EI2 30, Metal doors EI1 15 - EI1 120 and EI2 15 - EI2 120
Fill Classification 1 of the national burglary protection standards SFS 7020 and SFS 5970.
Mortice standard: OneFit

EU Declaration of Performance:UKCA Declaration of Performance:Lock Case Brochure:
