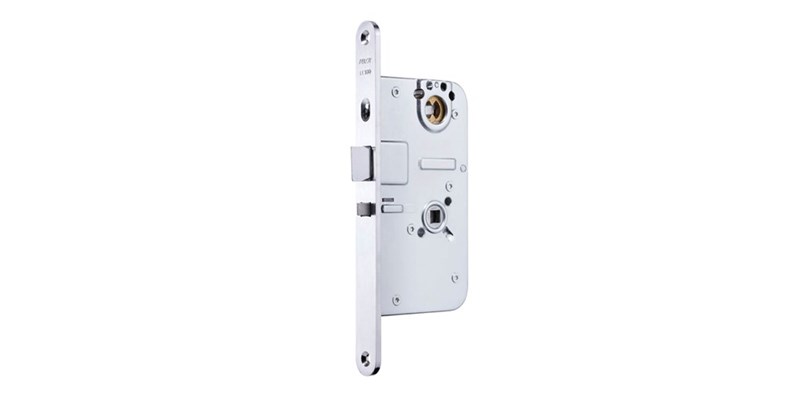

Lock case LE180

The door is opened from outside with a lever handle. The lock case fulfils the requirements of the European standard for exit products SFS-EN179 and SFS-EN1125 and the requirements of the lock case standard SFS-EN12209. The lock is always opened from the inside by a lever handle, push pad or panic bar. Deadlocking is controlled by a snib in the front plate. Using of the snib is normally blocked. The snib is released by turning the key. When the snib is in its up position, the lock will deadlock when the door closes and can only be opened by a key from the outside or by a lever handle or panic bar from the inside. When the snib is in its down position, the door can also be opened by the exterior handle.
The lock case works with the LP711, LP714, LP721, and LP731 striker plates.
Fire resistance: solid doors EI1 15 - EI1 30 and EI2 15 - EI2 30, Metal doors EI1 15 - EI1 120 and EI2 15 - EI2 120
Mortice standard: OneFit

  • Lock case LE185

    Automatically deadlocking exit lock case for single leaf solid doors.

  • Lock case LE186

    Exit lock case with automatic deadlocking latchbolt for the active side of solid double doors.

  • Lock case LE181

    Exit lock case with automatic deadlocking latchbolt for the active side of solid double doors.

  • Lock case LE183

    Exit lock case with automatic deadlocking latchbolt for the active side of solid double doors.

  • Lock case LE184

    Automatically deadlocking exit lock case for single leaf solid doors.
