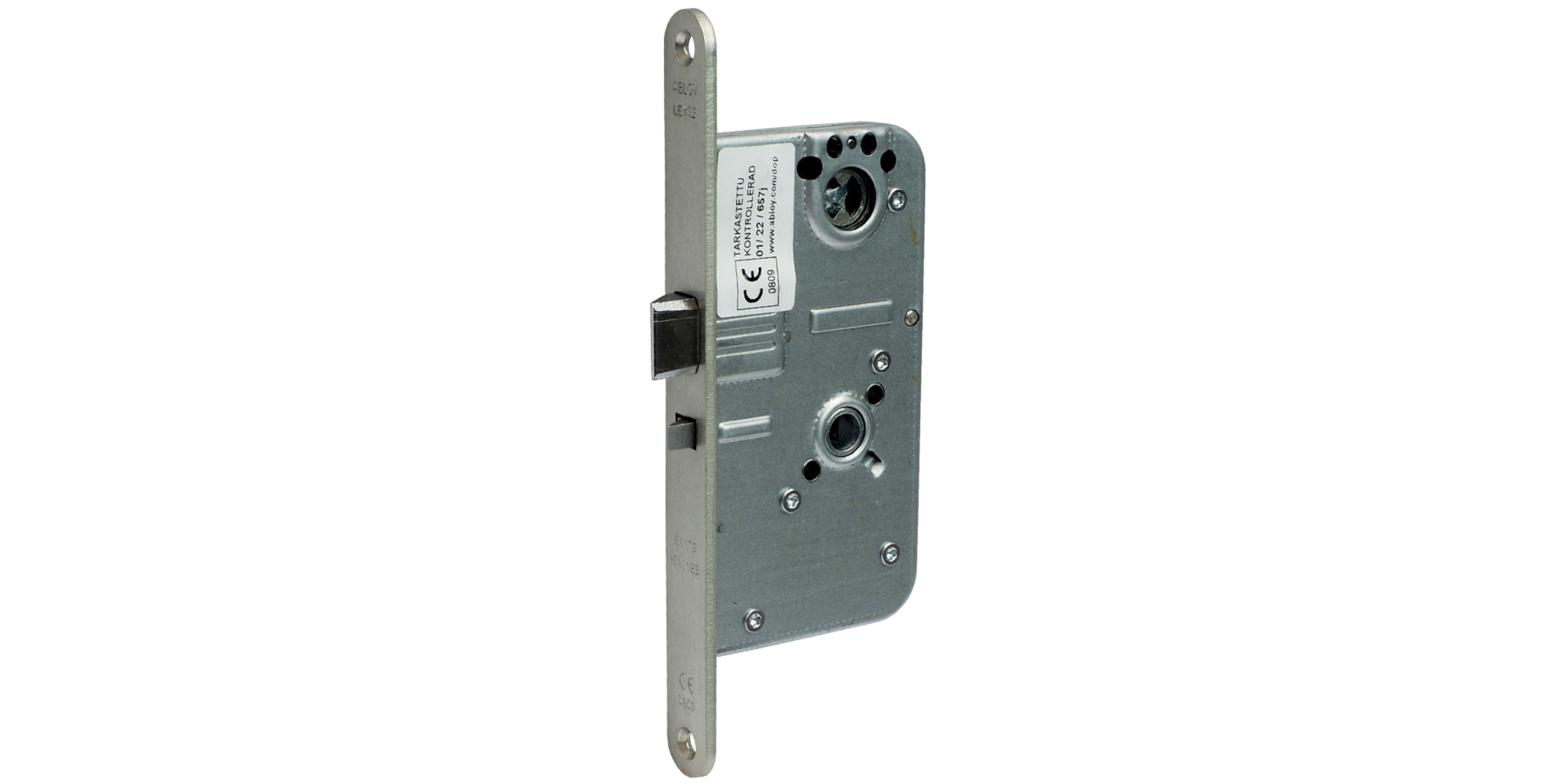

Lock case LE183

The door is opened from outside with a door pull. The lock case fulfils the requirements of the European standard for exit products SFS-EN179 and SFS-EN1125 and the requirements of the lock case standard SFS-EN12209. The lock is always opened from the inside by a lever handle or panic bar. The lock is deadlocked always when the door is closed. The latchbolt protrudes 14 mm.
Passive lock case: EXH911, EXB911, and EXH915.
Fire resistance: solid doors EI1 15 - EI1 30 and EI2 15 – EI2 30, Metal doors EI1 15 - EI1 120 and EI2 15 – EI2 120
Mortice standard: OneFit

EU Declaration of Performance:

Lock Case Brochure:
