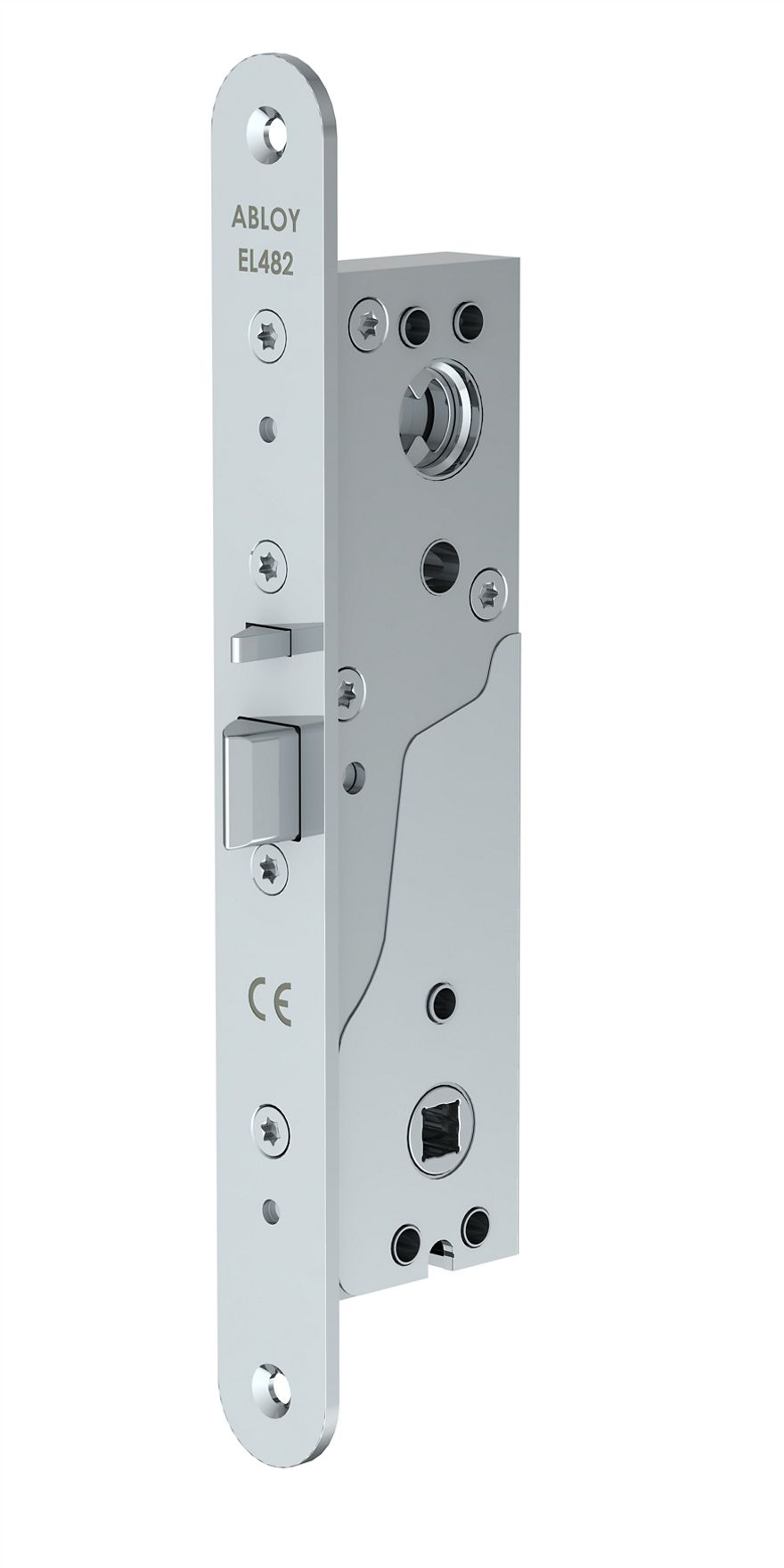

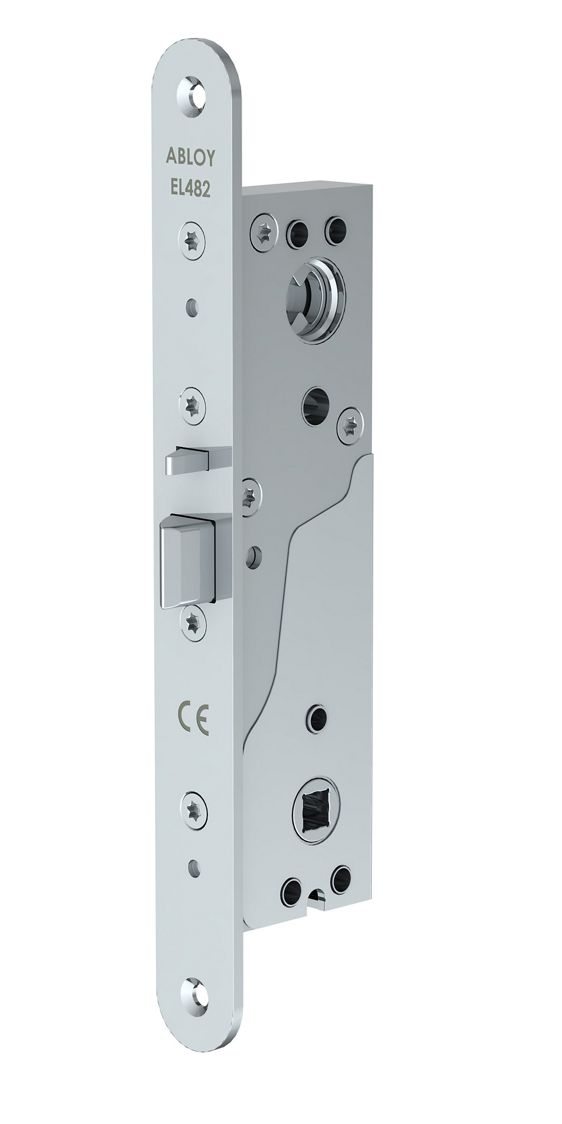

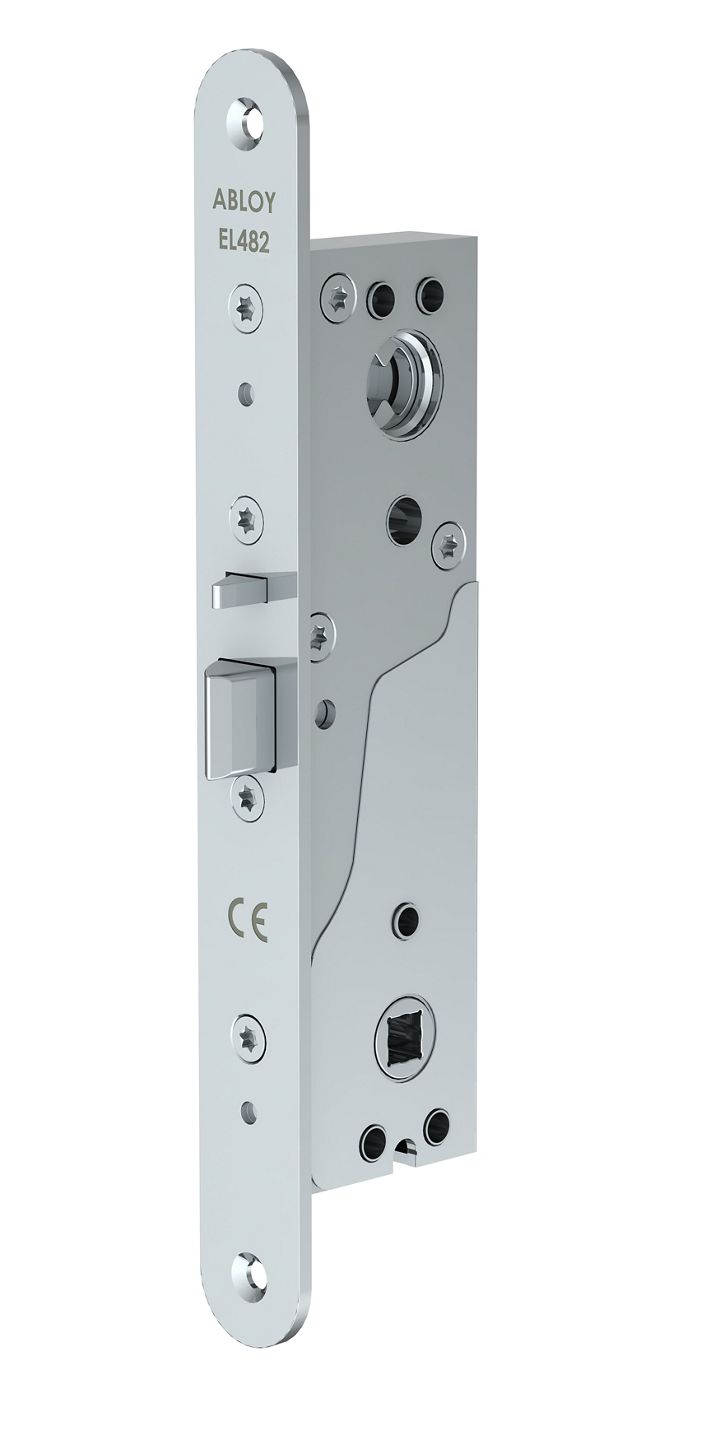

Electric lock EL482

EL482 is a handle controlled solenoid lock used in narrow profile doors.Handle controlled locks are best suited in medium traffic doors. The locks can be electrically controlled by access control system or by a remote control system such as timer, keypad or push button. The locks can be used in fire rated doors (EN).

Application

ABLOY® EL482 is recommended to be used in interior doors of business premises, public buildings, hospitals, educational premises and the exterior doors of apartment buildings and detached houses. The handle controlled locks are not suitable for use with door automatics.

Function

Handle controlled locks can be set to function as fail locked or as fail unlocked. In the fail locked setting, the lock can be opened by handle when power is on and cannot be opened by handle when power is off. In the fail unlocked setting, the electrical function is reversed. The locks are always automatically deadlocked when the door is closed. In ABLOY® EL482 both inside and outside handles are electrically controlled. In order to function correctly, the handle requires a straight spindle. Mechanical opening by cylinder or thumbturn is always possible.
