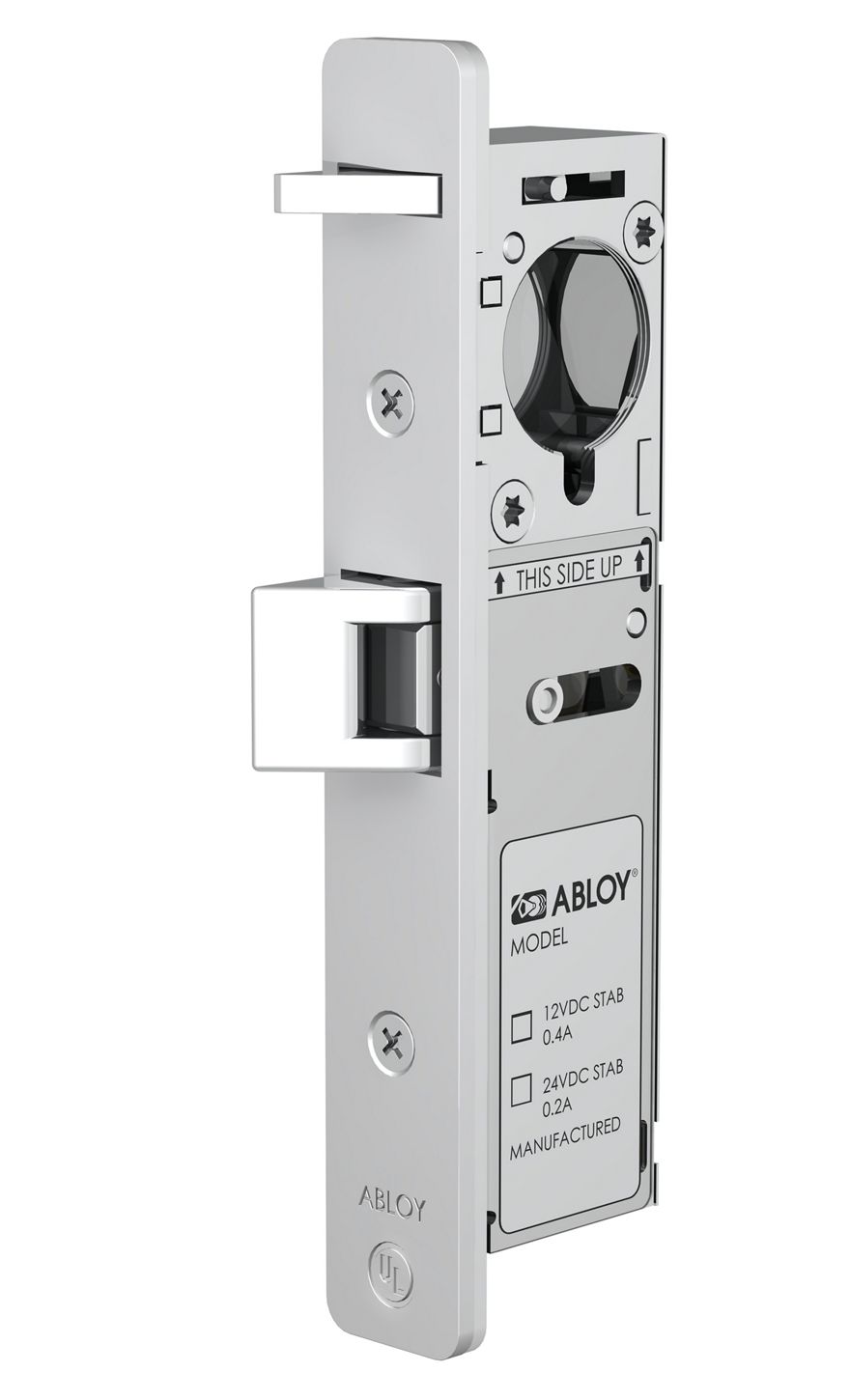

Electric lock EL410

ABLOY EL410 is a solenoid lock with ANSI dimensions used in wooden or metal doors

Application

The locks are specially recommended to be used the interior and exterior doors of commercial premises, apartment buildings, etc., and are well suited for use with door automatics. The lock can be controlled by a variety of access control systems or remote control equipment, e.g. card reader, key pad, timer or push button

Function

ABLOY^® el410 is a fail locked type lock. The door can be opened by pushing or pulling when electric control is switched on. When electric control is switched off, lock can be operated by key from outside and by handle from inside. In locked mode ABLOY^® el410 and ABLOY^® el411 locks are always automatically deadlocked when door closes. Lock cases are equipped with an integral microswitch to indicate unlocked/locked position.
