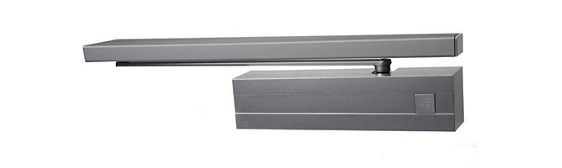

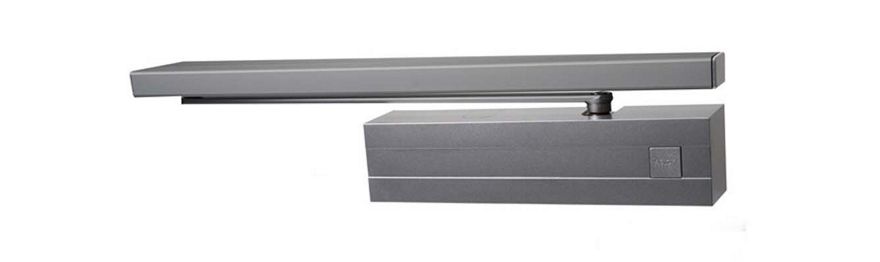

Door closer DC250

Suitable for external doors, large doors and internal doors exposed to conditions of pressure and heavy use.

Maximum door weight 120 kg, and door leaf width 1400 mm with a sliding arm. For use with ABLOY FD460 series fire door closing systems.

• CE certified

• Adjustable closing force size EN 2-6 according to EN1154

• Operating temperature range: -15oC...+45oC

• Adjustable latching and back check starting angle by grooved spindle

• Easy adjustment of arm height (14 mm)
