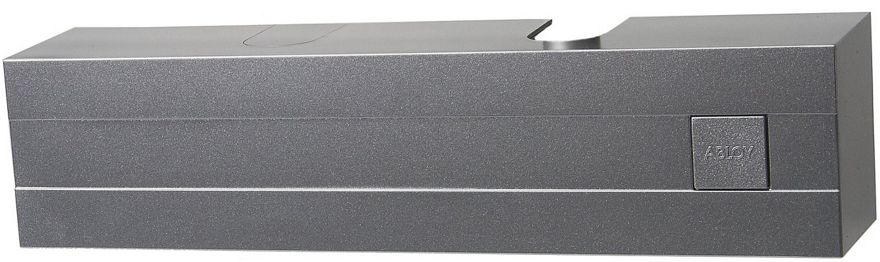

Door closer DC240
Suitable for external doors, large doors and internal doors exposed to conditions of pressure and heavy use.
Maximum door weight 120 kg, and door leaf width 1400 mm with a standard arm installation. When installed with a sliding arm, maximum door weight is 80 kg and door leaf width 1100 mm.
• CE certified with standard and sliding arms
• Adjustable closing force size EN 2-6 with standard arm, and EN1-4 with sliding arm
according TO EN1154
• Wide operating temperature range: -35oC...+45oC
• Adjustable latching and back check starting angle by grooved spindle
• Easy adjustment of arm height (14 mm)
