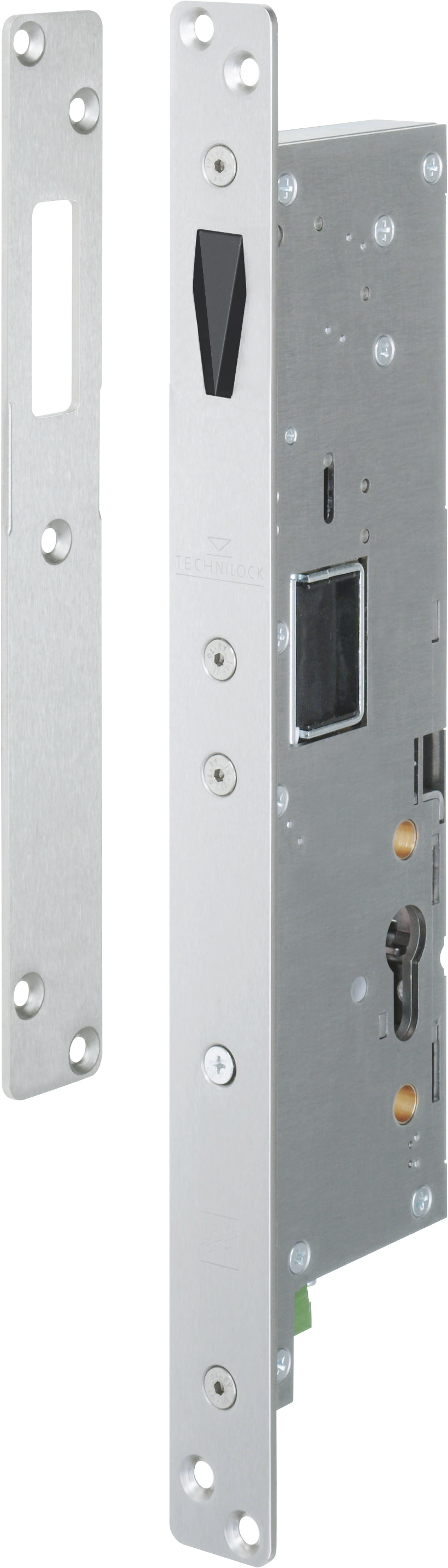

High Security Deadbolt Technilock® L4
Overview of advantages:
- Reliable impact resistance
- Bolt side load breaking force of up to 20,000N
- 80 N bolt pre-load for fail-locked and fail-unlocked models always ensures reliable unlocking
- Status monitoring via programmable monitoring contacts, additional relay circuit board provides potential-free monitoring contact
- Programmable unlocking time
- Sequence control system for locking with mechanical and electrical query of the door status
- Integrated error log and under voltage indicator make fault rectification easier. Malfunctions can be traced on site and quickly verified for repair purposes, with rapid error analysis, high available, short downtimes
- Integrated microprocessor control unit: no additional external control unit required
- Vertical installation possible in the frame or door leaf
- Horizontal installation possible in the frame top
- Control board with protective coating, enabling use in protected outdoor installation
- Compatible with the predecessor L3 series - simple exchange possible
Effeff Technilock Dead Bolt
The effeff Electro-mechanical door bolt is for use in high security areas and available in Fail locked or Fail unlocked. It has a 50,0000 N Bolt side load and is available in 24V DC. Striking plates to be ordered separately
High Security Deadbolt Technilock® L4 844L4ESA
High Security Deadbolt Technilock® L4
Electromechanical drop bolt for use in high‑security areas. In the fail‑unlocked version, the door is always unlocked without power. The focus is on opening in the event of danger. In the event of a power failure or fault, the lock opens. For scenarios requiring high locking pressure while still ensuring the door opens during a power failure. Can be triggered by a fire alarm or smoke alarm system to ensure safe exit from hazardous areas. Not suitable as an electric locking system according to EltVTR or DIN EN 13637.
High Security Deadbolt Technilock® L4 844L4_ESA
High Security Deadbolt Technilock® L4
