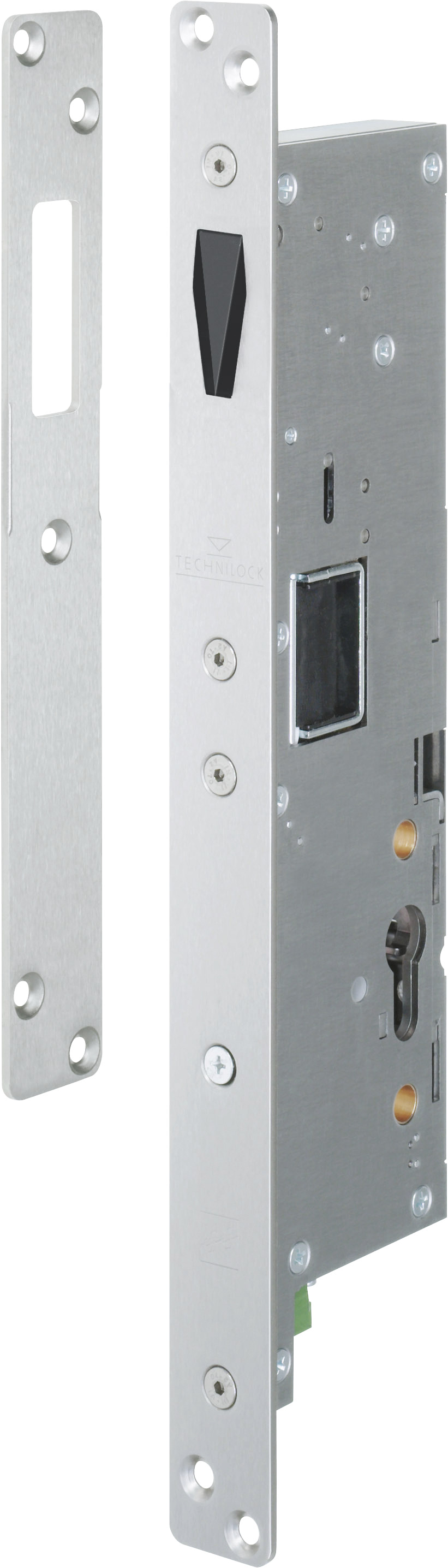

High Security Deadbolt Technilock® L4

  • Reliable impact resistance
  • Bolt side‑load breaking force up to 20,000 N
  • 80 N bolt pre‑load ensures reliable unlocking in both fail‑locked and fail‑unlocked models
  • Status monitoring via programmable monitoring contacts; optional relay board adds potential‑free monitoring contact
  • Programmable unlocking time
  • Sequence control system with mechanical and electrical door‑status monitoring
  • Integrated error log and undervoltage indicator for easier fault diagnosis; rapid on‑site analysis and reduced downtime
  • Built‑in microprocessor control unit — no external control unit required
  • Vertical installation possible in frame or door leaf
  • Horizontal installation possible in the top frame
  • Control board with protective coating, suitable for protected outdoor installations
  • Compatible with previous L3 series, allowing easy replacement

    • Effeff Technilock Dead Bolt

      The effeff Electro-mechanical door bolt is for use in high security areas and available in Fail locked or Fail unlocked. It has a 50,0000 N Bolt side load and is available in 24V DC. Striking plates to be ordered separately
      See product

    • High Security Deadbolt Technilock® L4 844L4ESA

      Explore category

    • High Security Deadbolt Technilock® L4 844L4_ESA

      Explore category

    • High Security Deadbolt Technilock® L4

      In the fail‑unlocked version, the door is always unlocked without power. The focus is on opening in the event of danger. In the event of a power failure or system fault, the lock opens automatically. Application Suitable where high locking pressure is required but the door must still open during a power failure. Can be actuated by a fire alarm or smoke alarm system to ensure safe exit from the hazardous area. Cannot be used as an electric locking system in accordance with EltVTR or DIN EN 13637.
      See product

    • High Security Deadbolt Technilock® L4
