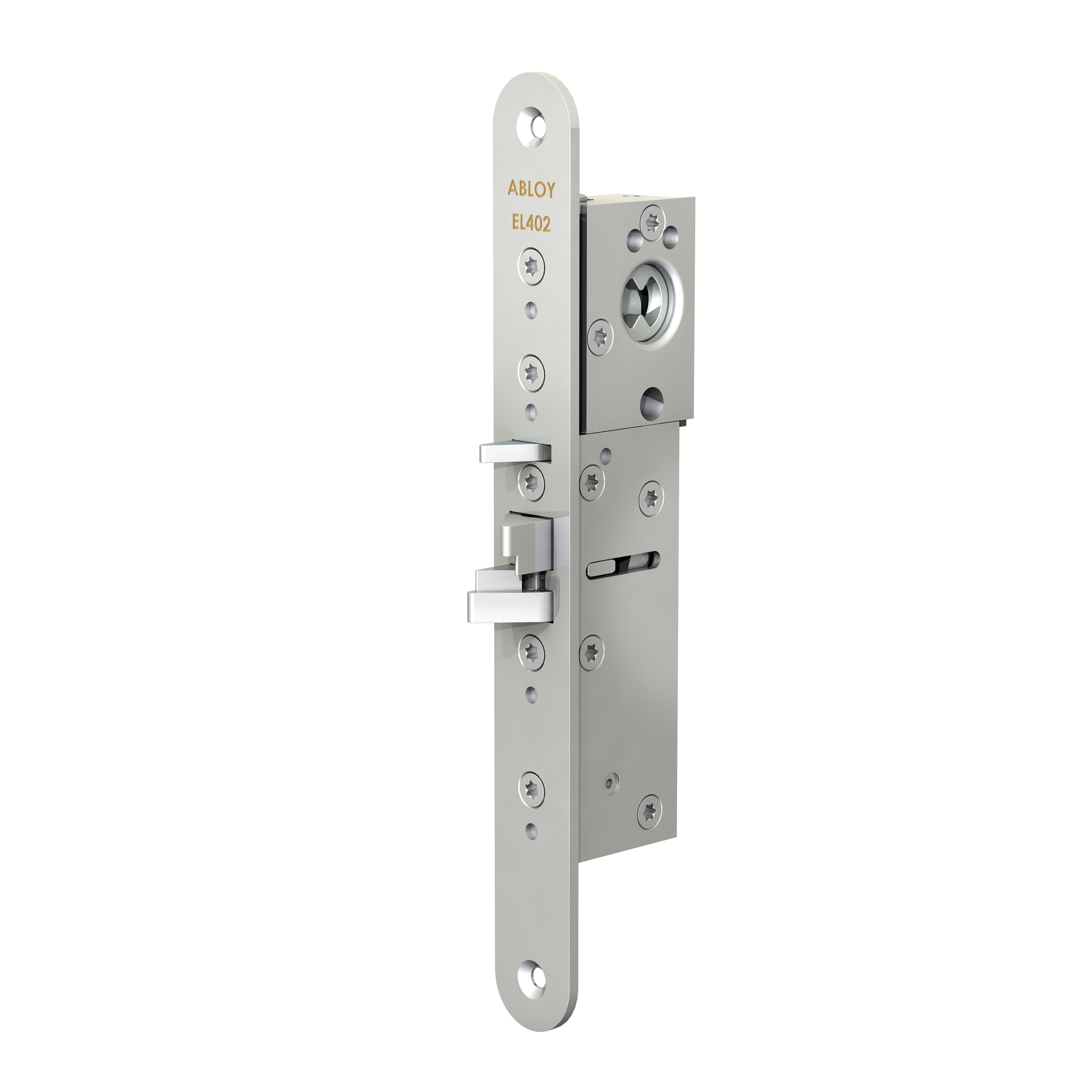

Lock Case EL402 - Solenoid Dual Act Lock

Cannot be used for fire rated doors. Can be used in exit doors. The door deadlocks when closed. El402 fulfils the standard EN 179 when used with the CY080 cylinder. The door can always be opened by the key, the interior thumbturn or the push pad. Generally used in interior- and exterior doors of business premises as well as exterior doors of apartment buildings.

1 of 2

Dual action.

Microswitch monitoring.

Certified for escape EN 179.

  • Declaration of Performance (for Webshop/AEM) S3
NameValue
BrandAbloy UK
EAN code6416495235157
Range NameAbloy UK
ActuatorSolenoid
Bolt Projection14.5
CE CertificationCe certification en 1125:N A, Ce certification en 12209:n a, Ce certification en 14846:n a, Ce certification en 179:0809 CPR 1053
Classification CodesClassification codes en 1125:N A, Classification codes en 12209:N A, Classification codes en 14846:N A, Classification codes en 179:37601342B B D
Fire Door ApprovalNo
Forend StyleRadiused
HandedNo
Mortice DepthAdjustable 40mm - 50mm
Mortice StandardCustom
REACHYes
ROHSCompliant
SKUEL402
SKU codeEL402
StandardsEN 179
StileNarrow
Warranty2 Years
