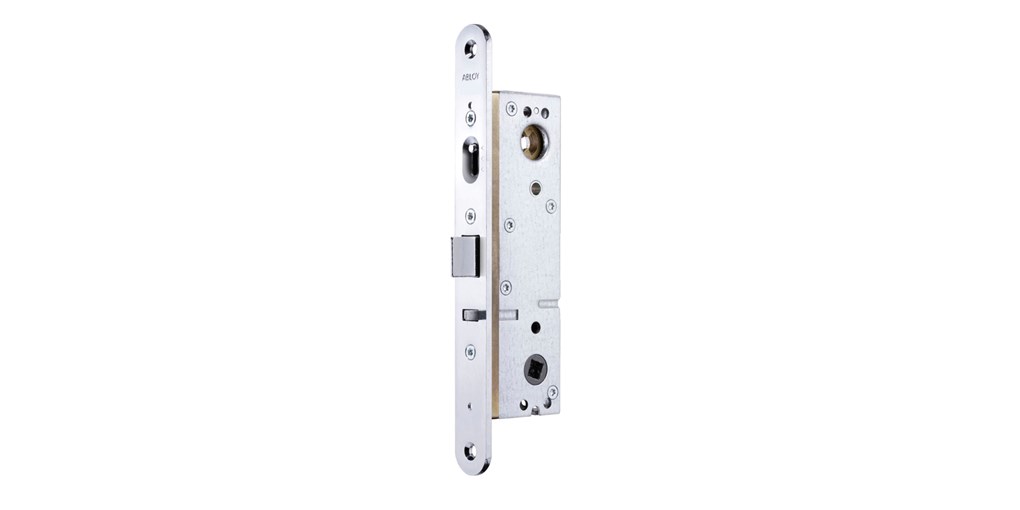

LE315 Exit lock case with automatic deadlocking latchbolt.

The door is opened from outside with a door pull. The lock case fulfils the requirements of the European standard for exit products SFS-EN179 and SFS-EN1125 and the requirements of the lock case standard SFS-EN12209. The lock is always opened from the inside by a lever handle, push pad or panic bar. The latchbolt protrudes 14 mm. Deadlocking is controlled by a snib in the front plate. Using of the snib is normally blocked. The snib is released by turning the key. When the snib is in its up position, the lock will deadlock when the door closes and can only be opened by a key from the outside or by a lever handle or panic bar from the inside. When the snib is in its down position, the latchbolt is retained inside the lock case. Available with microswitch option on LE315X 29MM, 30.5MM, 35MM backsets.
