EL561

Handle controlled locks are best suited in medium traffic doors. The lock can be switched between fail-locked and fail-unlocked states. The locks can be electrically controlled by access control system or by a remote control system such as timer, keypad or push button. The locks can be used fire rated doors. Both inside and outside handles are electrically controlled. Mechanical opening by cylinder or thumbturn is always possible. Recommended to be used in interior doors of business premises, public buildings, hospitals, educational premises etc. Indications to EAC.

  • Electric Solenoid Lockcase EL502

    Push&pull operated solenoid lock for solid doors.

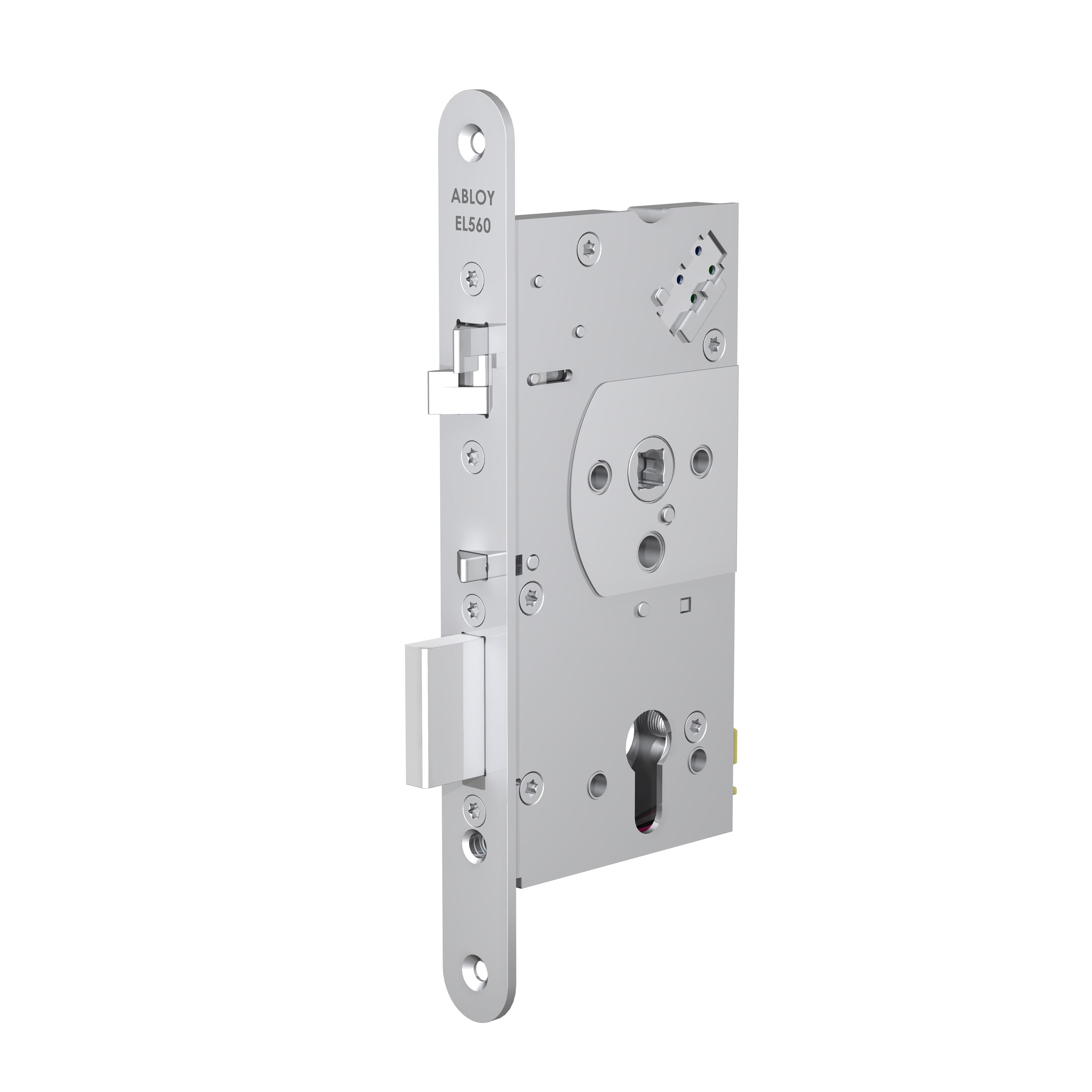

  • EL560

    Handle controlled solenoid operated lockcase. The lock can be switched between fail-locked and fail-unlocked states. The locks can be electrically controlled by access control system or by a remote control system such as timer, keypad or push button. The locks can be used both in exit doors and fire rated doors. only the outside handle is electrically controlled. The lock can always be opened by the inside handle. Mechanical opening by cylinder is always possible. Recommended to be used in interior doors of business premises, public buildings, hospitals, educational premises etc. Indications to EAC.

  • EL560L

    Handle controlled locks are best suited in medium traffic doors. The locks can be electrically controlled by access control systems or by a remote control system, such as a timer, keypad or push button. The locks can be used in both exit doors and fire rated doors. EL560L has the same dimensions and electrical indications as the EL560. All the same fittings and accessories can be used, for example when replacing EL560 with EL60L. Recommended for interior doors of public and commercial premises. Can be used in both wired and wireless applications. The lock case has an operating voltage between 3.6VDC - 27.6VDC. This means that it can be operated by battery powered systems. Only outside handle is electrically controlled. The lock can always be opened by the inside handle. Mechanical opening by cylinder is always possible.

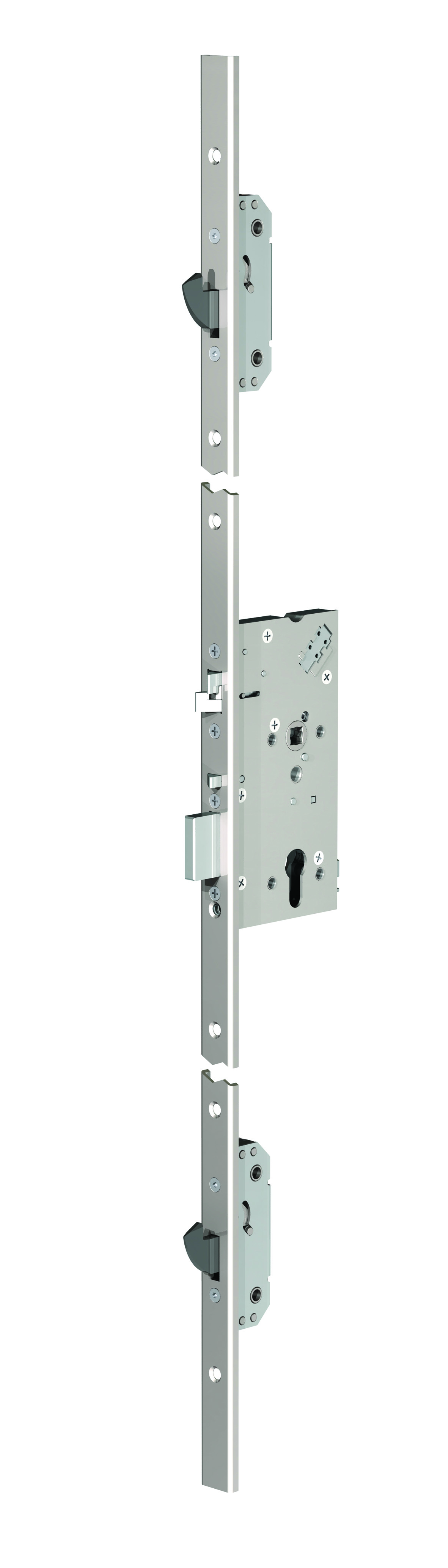

  • EL566


    EL566 is a DIN standard handle controlled multipoint lock for solid doors. Handle controlled locks are best suited in medium traffic doors. The locks can be electrically controlled by access or remote-control systems. Handle controlled locks offer great solutions to medium traffic doors where EAC is needed.

    Handle controlled locks can be set to function as fail locked or as fail unlocked. In the fail locked setting, the lock can be opened by handle when power is on and cannot be opened by handle when power is off. In the fail unlocked setting, the electrical function is reversed.

    Handle controlled doors are typically used in interior doors of offices, storages or maintenance rooms. Handle controlled locks cannot be used with door automatics.

    The product is a multipoint lock with two additional locking points. This enhances the level of security of the product as multipoint locks offer better support to the whole door without losing the ease of use compared to the single point lock cases.

    This product is certified according to
    • EN14846, electric lock standard including a fire approval
    • EN179, exit doors
    • EN1125, panic exit doors

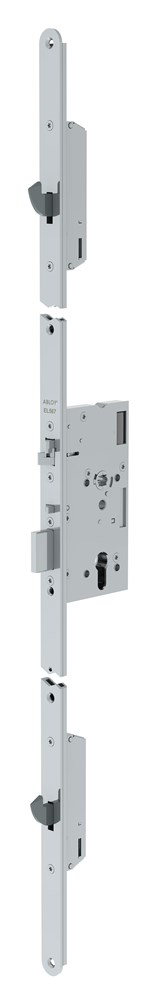

  • EL567

    Handle controlled locks are best suited in medium traffic doors. The locks can be electrically controlled by access control system or by a remote control system such as timer, keypad or push button. The locks can be used in fire rated doors. Both handles are electrically controlled. Mechanical opening by cylinder and thumbturn is always possible. Recommended to be used in interior doors of business premises, public buildings, hospitals, educational premises etc. Indications to EAC. EL567 have three locking points.

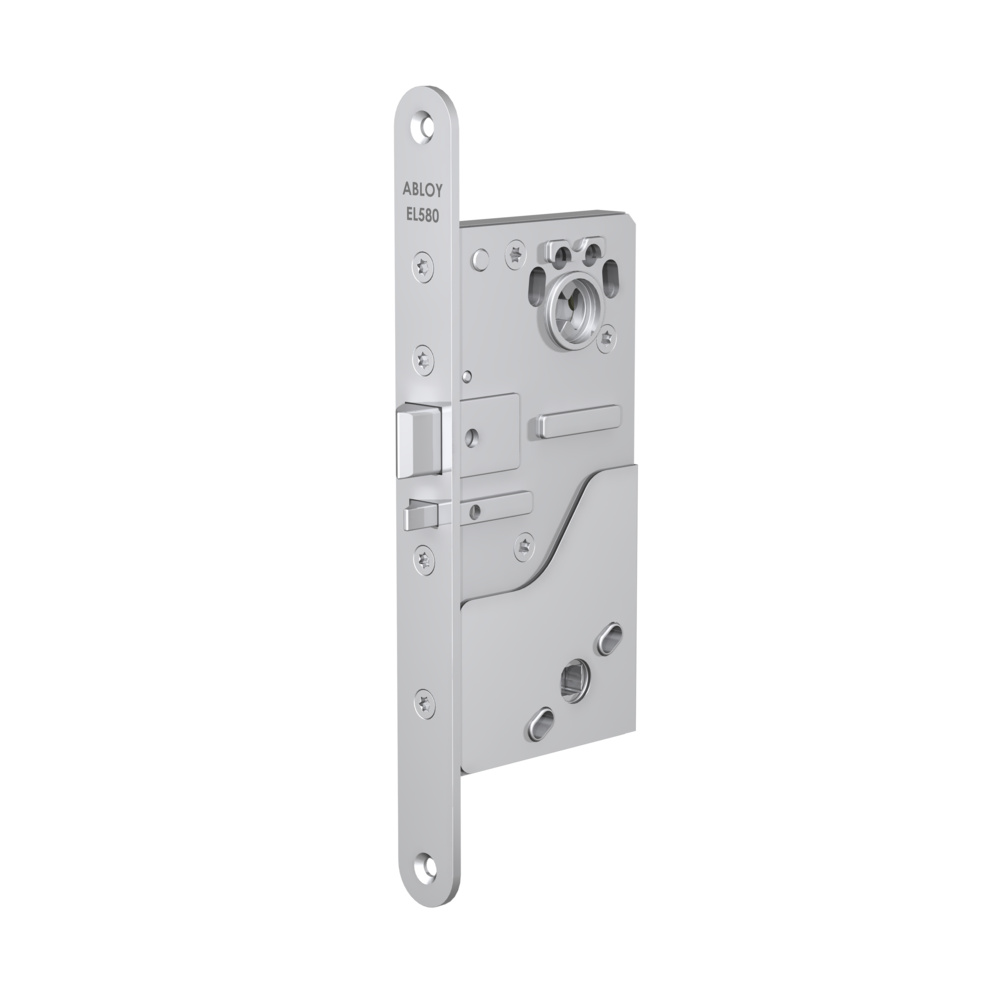

  • EL580

    Handle controlled locks are best suited in medium traffic doors. The locks can be electrically controlled by access control system or by a remote control system such as timer, keypad or push button. The locks can be used both in exit doors and fire rated doors. Handle controlled locks can be set to function as fail locked or as fail unlocked. In the fail locked setting, the lock can be opened by handle when power is on and cannot be opened by handle when power is off. In the fail unlocked setting, the electrical function is reversed. The locks are always automatically deadlocked when the door is closed. In EL580 the outside handle is electrically controlled. The lock can always be opened by the inside handle or by panic bar. In order to function correctly, the handle requires a split spindle. Mechanical opening by cylinder is always possible. Cannot be used in doors with door automatics.

  • El582

    Handle controlled locks are best suited in medium traffic doors. The locks can be electrically controlled by access control system or by a remote control system such as timer, keypad or push button. EL582 can be used in fire rated doors. Handle controlled locks can be set to function as fail locked or as fail unlocked. In the fail locked setting, the lock can be opened by handle when power is on and cannot be opened by handle when power is off. In the fail unlocked setting, the electrical function is reversed. The locks are always automatically deadlocked when the door is closed. In EL582 the both outside and inside handles are electrically controlled. Mechanical opening by cylinder is always possible. Generally used in exterior doors of houses as well as interior- and exterior doors of offices and business premises. Cannot be used in doors with door automatics.
