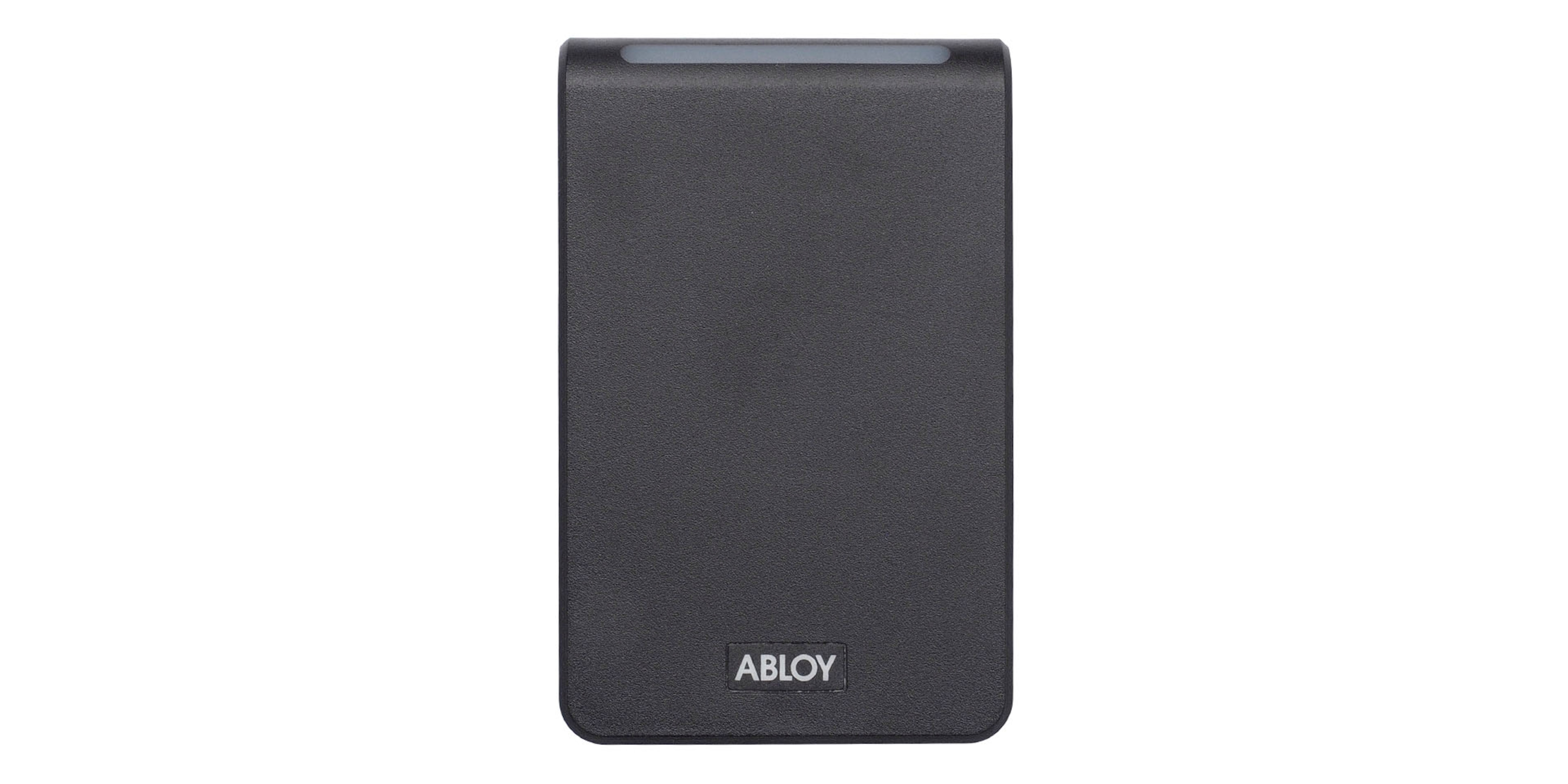

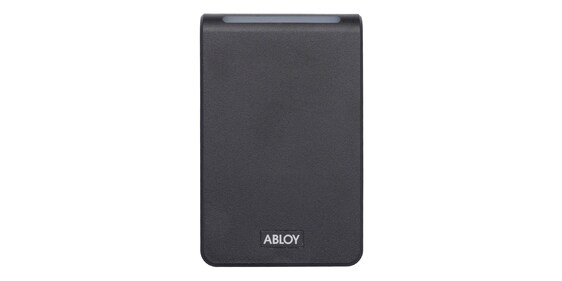

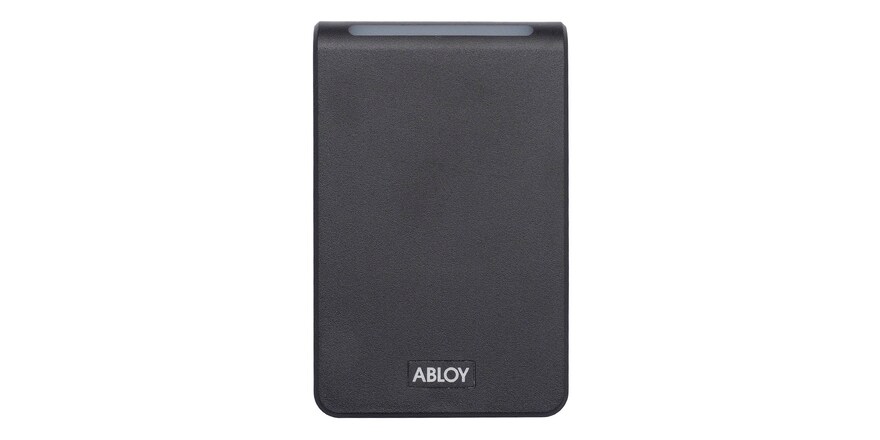

ABLOY PULSE SIGNO 40 updating reader PPR200

PPR200 is ABLOY PULSE wide Signo 40 reader configured to support ABLOY PULSE keys and ASSA ABLOY Access Seos credentials. The reader communicates via the OSDP bus. It is installed on a flat surface, and the use of a separate mounting plate is recommended.

Dimensions and weight:
Dimensions (W x H x D): 80mm x 121.5mm x 19.5mm
Weight: 120g

Technical specifications:
Bus interface: OSDP
13.56 MHz NFC: Seos®
Operating voltage: 12V DC
Power consumption: 65–75 mA (peak 250 mA)
Operating temperature and relative humidity: -35° to +66°C & 0–95% non-condensing
Operating environment: UL294 rated for indoor and outdoor use, IP65
Country of manufacture: Mexico

Certifications and approvals:
CE, EAL 5+ Certified Secure Element Hardware
