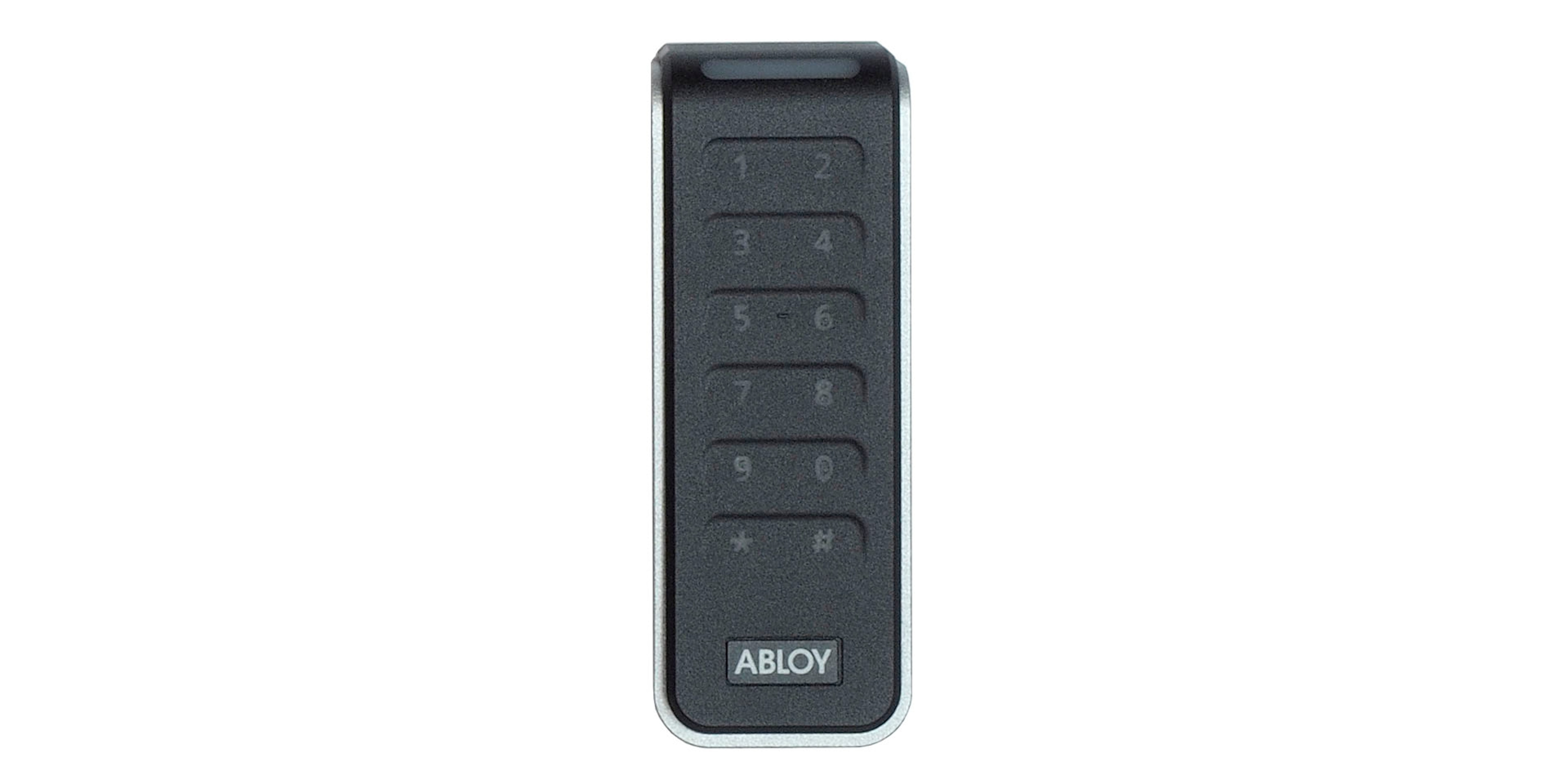

ABLOY PULSE SIGNO 20K updating reader PPR101

PPR101 is an ABLOY PULSE narrow Signo 20K PIN reader configured to support ABLOY PULSE keys and ASSA ABLOY Access Seos credentials. PPR101 features a capacitive PIN keypad. The reader communicates via the OSDP bus. It is installed on a flat surface, and the use of a separate mounting plate is recommended.

Dimensions and weight:
Dimensions (W x H x D): 45mm x 121,5mm x 21,5mm
Weight: 90g

Technical specifications:
Bus interface: OSDP
13.56 MHz NFC: Seos®
Operating voltage: 12V DC
Power consumption: 60-70 mA, (peak 250 mA)
Operating temperature and relative humidity: -35° to +66°C & 0–95% non-condensing
Operating environment: UL294 rated for indoor and outdoor use, IP65
Country of manufacture: Mexico

Certifications and approvals:
CE, EAL 5+ Certified Secure Element Hardware
