Finnish range

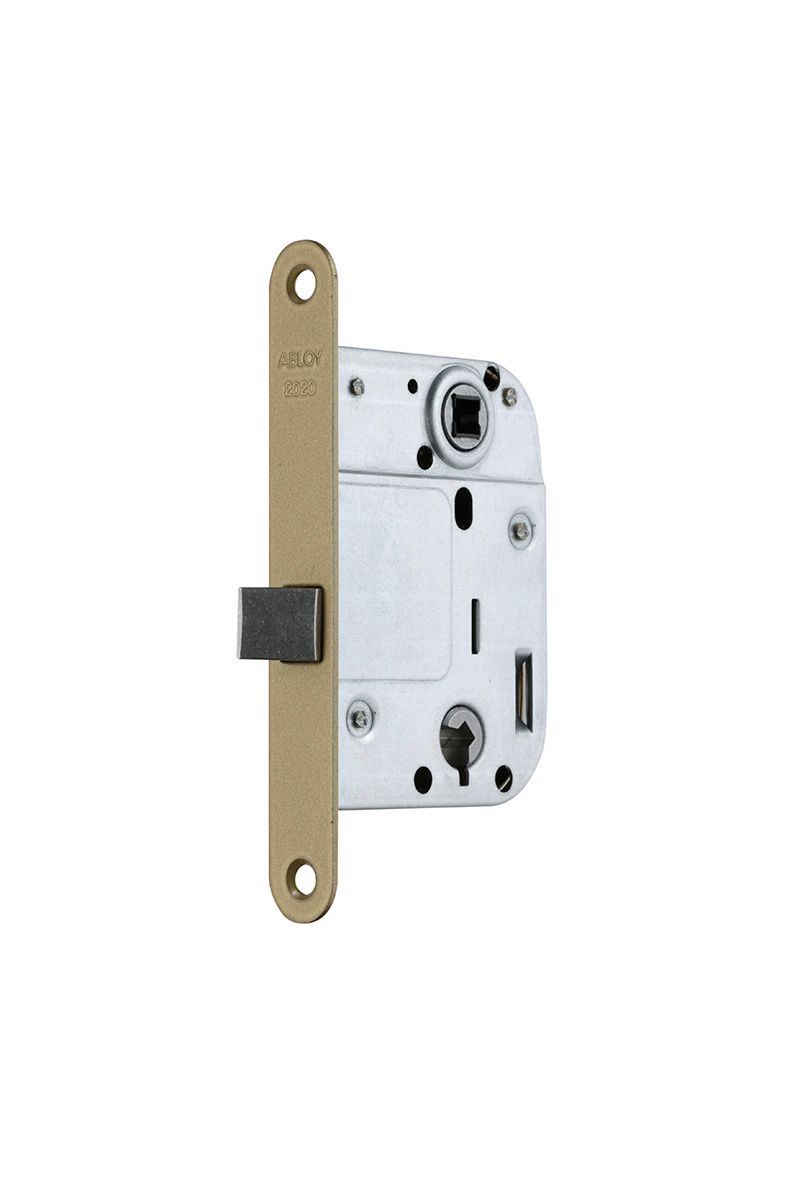

Lock for interior doors. It has one latch bolt which can be deadlocked with either a key or a toilet thumbturn.

Lock handing can easily be changed by pulling out the latchbolt and turning it 180° clockwise.

The lock can be used with a lever handle only or with both a lever handle and a key or a toilet thumbturn.

The lock fits into the same mortise as e.g. ASSA 404 and 404T.

BODA 408-409-418-420-422-423-448-501-502-503 and ASSA 404 and 404T

0043, 0045, 0053, 0055, 0068, 0068B

Fe/Mme

Yes

SFS 5210, SS 81 73 82

Lock case for lightweight sliding and folding doors.

The hookbolt can be locked. Either by using a key or toilet thumbturn.

4662

Fe/Mme

Fe/Cr, Fe/HCr, Ms/HaLa, Ms/KiLa, Rst

–

SFS 5210, SS 81 73 82

Cylinder lock for interior doors.

The lock can be opened and locked by turning the key one turn.

In locked position, the deadbolt protrudes 14 mm.

The latch can be retracted both by handles or by key.

Lock handing can easily be changed by pulling out the latchbolt and turning it 180° clockwise.

0043, 0045, 0053, 0055, 0068, 0068B

Fe/Mme, Fe/ZL

Yes

Euro DIN

Special mortise

Mortise lock with a lever handle function.

Recommended for public buildings.

4690, 4691, LP711, LP714, LP721, LP731

Fe/ZL

Wooden doors EI115 – EI160 and EI215 – EI260, Metal doors EI115 – EI1120 and EI215 – EI2120

SFS 5209

Cylinder mortise lock with an automatically deadlocking latchbolt for interior doors.

Deadlocking is controlled by a snib in the front plate.

UP = Deadlocking, latchbolt protrudes 20 mm.

The lock can be opened only with a key or a thumbturn.

DOWN = Latchbolt protrudes 14 mm.

Lock can also be opened with lever handles.

0043, 0045, 0053, 0055, 0068, 0068B

Fe/Mme, Fe/Zn

ABLOY^® C, N, T, U

–

SFS 5210, SS 81 73 82

Exit lock case with automatic deadlocking latchbolt for profile doors with one blade.

The door is opened from outside with a door pull.

The lock case fulfi ls the requirements of the European standard for exit products SFS-EN179 and SFS-EN1125 and the requirements of the lock case standard SFS-EN12209.

The lock is always opened from the inside by a lever handle, push pad or panic bar.

The lock is deadlocked always when the door is closed.

The latchbolt protrudes 14 mm.

LE314X is the microswitch version of the lock.

The switch changes the status when latchbolt is deadlocked.

LP702, LP703

Fe/ZL

ABLOY. C, N, T, U,

EI115-EI160 and EI215-EI260

Exit lock case with automatic deadlocking latchbolt for profile doors with one blade.

The door is opened from outside with a door pull.

The lock case fulfi ls the requirements of the European standard for exit products SFS-EN179 and SFS-EN1125 and the requirements of the lock case standard SFS-EN12209.

The lock is always opened from the inside by a lever handle, push pad or panic bar.

The latchbolt protrudes 14 mm.

Deadlocking is controlled by a snib in the front plate.

Using of the snib is normally blocked.

The snib is released by turning the key.

UP = Deadlocked

The lock can be opened from outside by key only and from inside by a lever handle, push pad or panic bar.

DOWN = Latchbolt is retained inside the lock case.

LE315X is the microswitch version of the lock.

The switch changes the status when latchbolt is deadlocked.

LP702, LP703

Fe/ZL

ABLOY. C, N, T, U,

–

Lever lock for interior doors.The lock features 5 levers to give 250 different key combinations.

Lock handing can easily be changed by pulling out the latchbolt and turning it 180° clockwise.

The lock is fitted with lever handles and an escutcheon.

The lock can also be eguipped with DIN standard fittings.

0043, 0045, 0053, 0055, 0068,0068B

Fe/Zn, Fe/Mme

Yes

SFS 5210, SS 81 73 82

Mortise lock with a lever handle function only.

Recommended for public buildings.

4690, 4691, LP711, LP714, LP721, LP731

Fe/ZL

Wooden doors EI115 – EI130 and EI215 – EI2 30, Metal doors EI115 – EI1120 and EI215 – EI2120

OneFit mortise

Exit lock case with automatic deadlocking latchbolt for profi le doors with one blade.

The door is opened from outside with a lever handle.

The lock case fulfi ls the requirements of the European standard for exit products SFS-EN179 and SFS-EN1125 and the requirements of the lock case standard SFS-EN12209.

The lock is always opened from the inside by a lever handle, push pad or panic bar.

The latchbolt protrudes 14 mm.

Deadlocking is controlled by a snib in the front plate.

Using of the snib is normally blocked.

The snib is released by turning the key.

UP = Deadlocked, the lock can be opened from outside by key only and from inside by a lever handle, push pad or panic bar.

DOWN = Day latching, the lock can be opened from outside by lever handle also.

LE310X is the microswitch version of the lock.

The switch changes the status when latchbolt is deadlocked.

LP702, LP703

Fe/ZL

ABLOY. C, N, T, U,

EI115-EI160 and EI215-EI260

Mortise lock for toilet doors in public buildings.

The lock is suitable for use with lever handles and a toilet thumbturn.

4690, 4691, LP711, LP714, LP721, LP731

Fe/ZL

Wooden doors EI115 – EI160 and EI215 – EI260,  Metal doors EI115 – EI1120 and EI215 – EI2120

Cylinder lock case for interior doors.

A turn of the key or thumbturn clockwise throws the latchbolt 20 mm and deadlocks.

The lock is opened by turning the key or thumbturn anticlockwise thereby allowing the latchbolt to protrude 14 mm for day mode.

The door can then be opened using the lever handles.

0043, 0045, 0053, 0055, 0068, 0068B

Other striker plates available

Fe/ZL

ABLOY^® N, T, U, SCAND

–

SFS 5210, SS 81 73 82

Mortise lock for toilet doors in public buildings.

The lock is suitable for use with lever handles and a toilet thumbturn.

4690, 4691, LP711, LP714, LP721, LP731

Fe/ZL

Wooden doors EI115 – EI130 and EI215 – EI2 30, Metal doors EI115 – EI1120 and EI215 – EI2120

OneFit mortise

Symmetric roller latch.

The roller latch protrusion can be ad-justed by means of a screw in the front plate.

The door must have a door pull.

For reasons of safety, a special striker plate is used in conjunction with the roller latch.

0046, 0078

ZNALCU/Mme

–

SFS 5210, SS 81 73 82

Exit lock case with automatic deadlocking latchbolt for wooden doors with one blade.

The door is opened from outside with a door pull.

The lock case fulfils the requirements of the European standard for exit products SFS-EN179 and SFS-EN1125 and the requirements of the lock case standard SFS-EN12209.

The lock is always opened from the inside by a lever handle, push pad or panic bar.

Deadlocking is controlled by a snib in the front plate.

Using of the snib is normally blocked.

The snib is released by turning the key.

UP = Deadlocking, latchbolt protrudes 17 mm

The lock can be opened from outside by key only and from inside by a lever handle, push pad or panic bar.

DOWN = Latchbolt is retained inside the lock case.

LE185X is the microswitch version of the lock.

The switch changes the status when latchbolt is protruded from 14 mm to 17 mm.

Following striker plates are recommended to be used with microswitch version: 4692, 4693.

LP711, LP714, LP721, LP731

Fe/ZL

ABLOY. C, N, T, U

–

OneFit mortise
