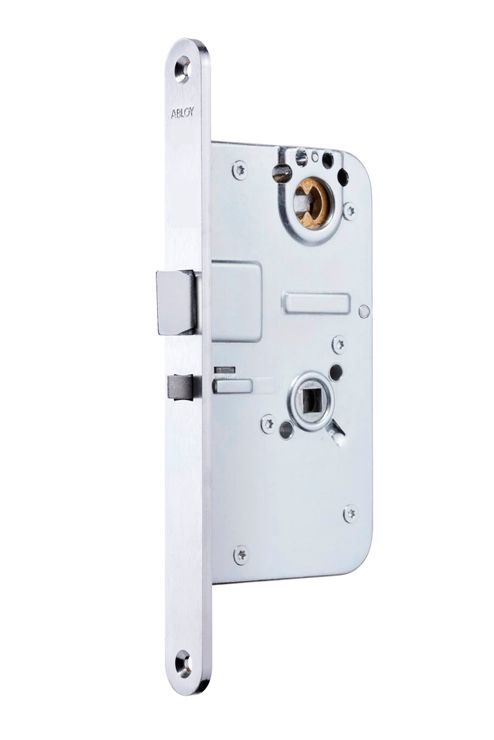

Exit lock LE184

Exit lock case with automatic deadlocking latchbolt for wooden doors with one blade.

The door is opened from outside with a door pull.

The lock case fulfils the requirements of the European standard for exit products SFS-EN179 and SFS-EN1125 and the requirements of the lock case standard SFS-EN12209.

The lock is always opened from the inside by a lever handle, push pad or panic bar.

The lock is deadlocked always when the door is closed.

Latchbolt protrudes 17 mm.

LE184X is the microswitch version of the lock.

The switch changes the status when latchbolt is protruded from 14 mm to 17 mm.

Following striker plates are recommended to be used with microswitch version: 4692, 4693.

Striker plate

LP711, LP714, LP721, LP731

Finish

Fe/ZL

Cylinder

ABLOY. C, N, T, U

Fire resistance:

Wooden doors EI115 - EI130 and EI215 – EI230,

Metal doors EI115 - EI1120 and EI215 – EI2120

Mortise standard

OneFit mortise
