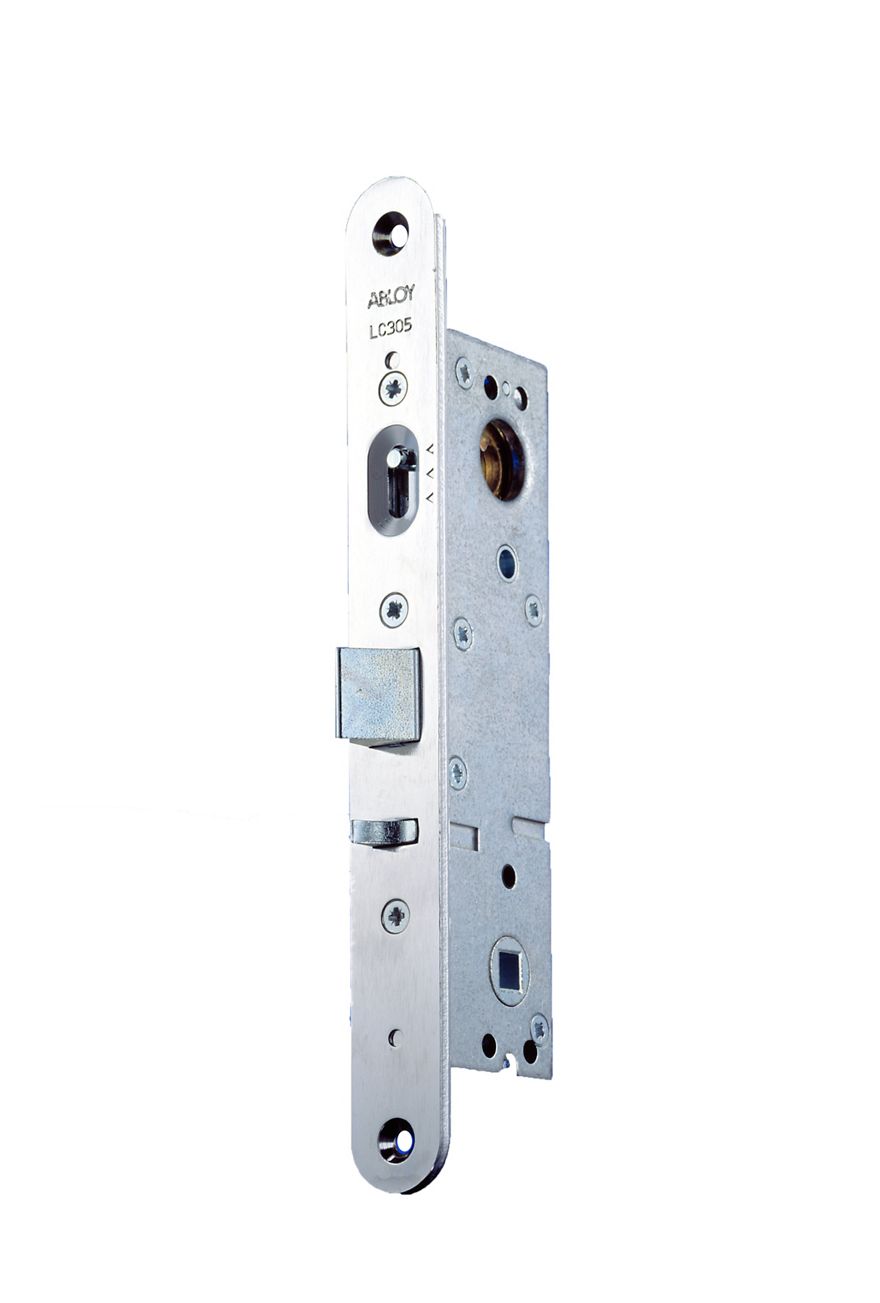

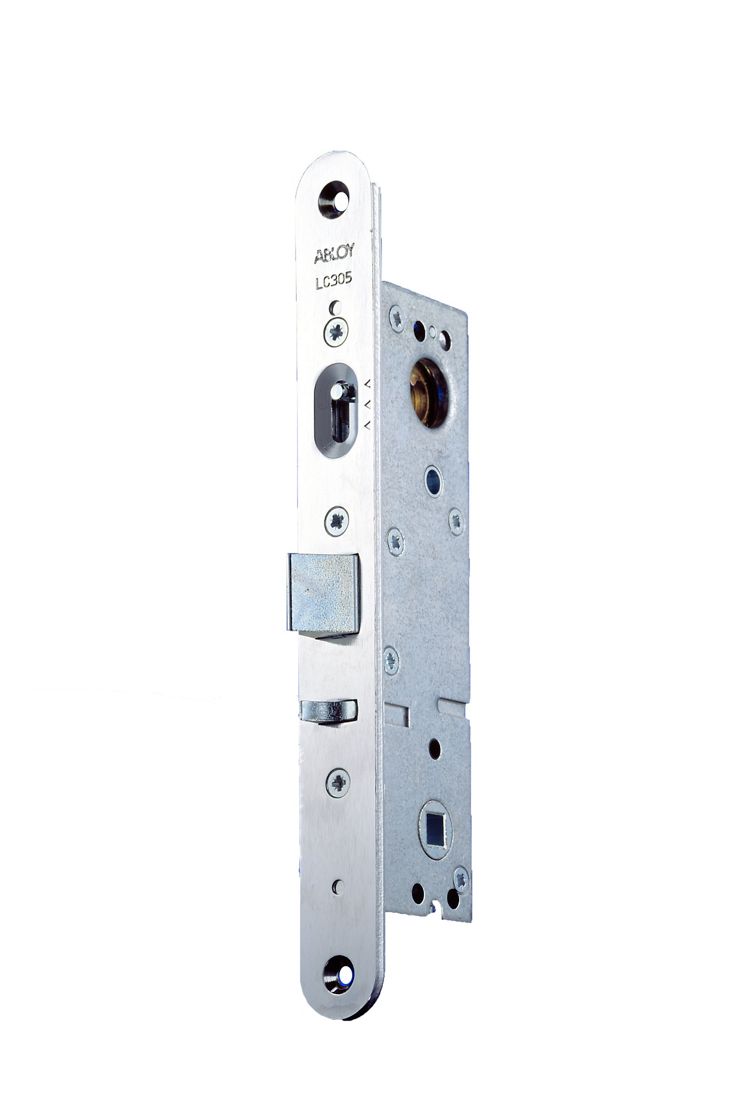

Lock case LC305

Automatically deadlocking lock for narrow profile doors.

Primarily for doors which must always be latched (e.g. fire doors) and where deadlocking is needed.

Function is determined by a sliding snib on forend:

UP position = automatic deadlocking. Operates by a key (or a thumbturn) from either side.

MIDDLE position = lock is latched and operates also with handles.

DOWN position = not in use.

Sliding snib is released only when turning the key (or thumbturn).

LC305X is the microswitch version of the lock.

The switch changes it’s status when the latchbolt protrudes 9 mm or more.

Striker plate

4613, 4614, LP702, LP703

Fe/ZL

ABLOY. C, N, T, U, SCAND

EI115-EI160 and EI215-EI260
