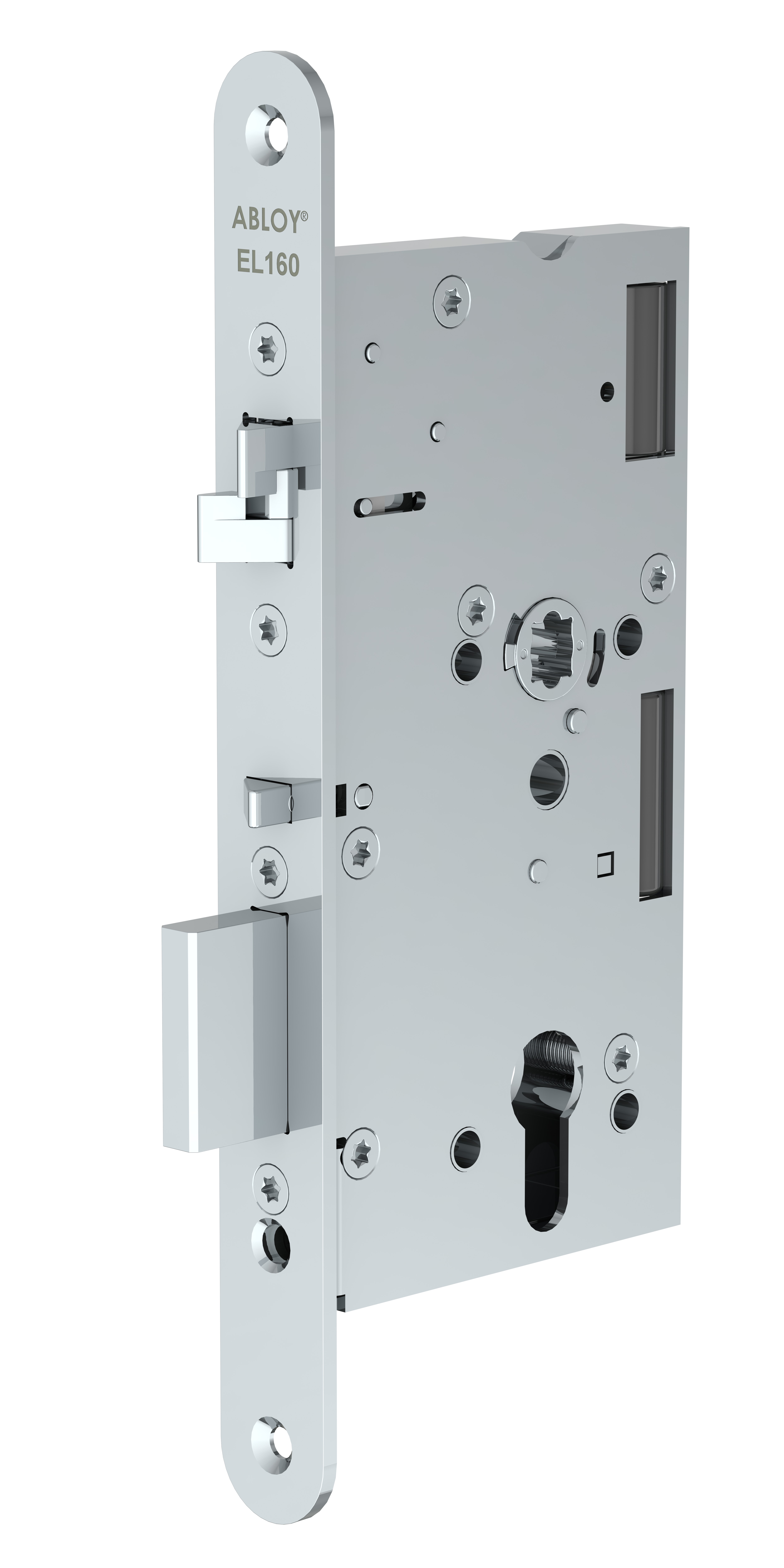

EL160 DIN Mechanical Lockcase

Uses Europrofile cylinders. The lock can be opened from outside by a key and inside by a handle. This deadlock escape sash lock deadlocks automatically when the door closes. Key override at all times. Fire resistant. Tested to Mechanical resistance EN12209. Meets EN179.

C/W EA322 STRIKE 2 X 807227

Name	Value
Actuator	Mechanical
Bolt Projection	20
CE Certification	Ce certification en 1125:0432 CPR 00008 2, Ce certification en 12209:0809 CPR 22004585, Ce certification en 14846:n a, Ce certification en 179:0432 CPR 00008 1
Classification Codes	Classification codes en 1125:376B1321A B, Classification codes en 12209:38510F6HB20, Classification codes en 14846:N A, Classification codes en 179:3760 B1342A B
Fire Door Approval	Yes
Forend Style	Radiused
Handed	Field Changeable
Mortice Standard	DIN
Operating Voltage	N/A
Standards	EN 1125, EN 12209, EN 179

Product	Product ID	Attributes
EL160 DIN Mechanical Lockcase	EL160-100MM	Backset (mm): 100
EL160 DIN Mechanical Lockcase	EL160-55MM	Backset (mm): 55
EL160 DIN Mechanical Lockcase	EL160-60MM	Backset (mm): 60
EL160 DIN Mechanical Lockcase	EL160-65MM	Backset (mm): 65
EL160 DIN Mechanical Lockcase	EL160-80MM	Backset (mm): 80

EL360 DIN Mechanical Lockcase
Uses Europrofile cylinders. The lock can be opened from outside by a key and inside by a handle. The lock deadlocks automatically when the door closes. Fire resistant. Lock case have microswitches for indications.
