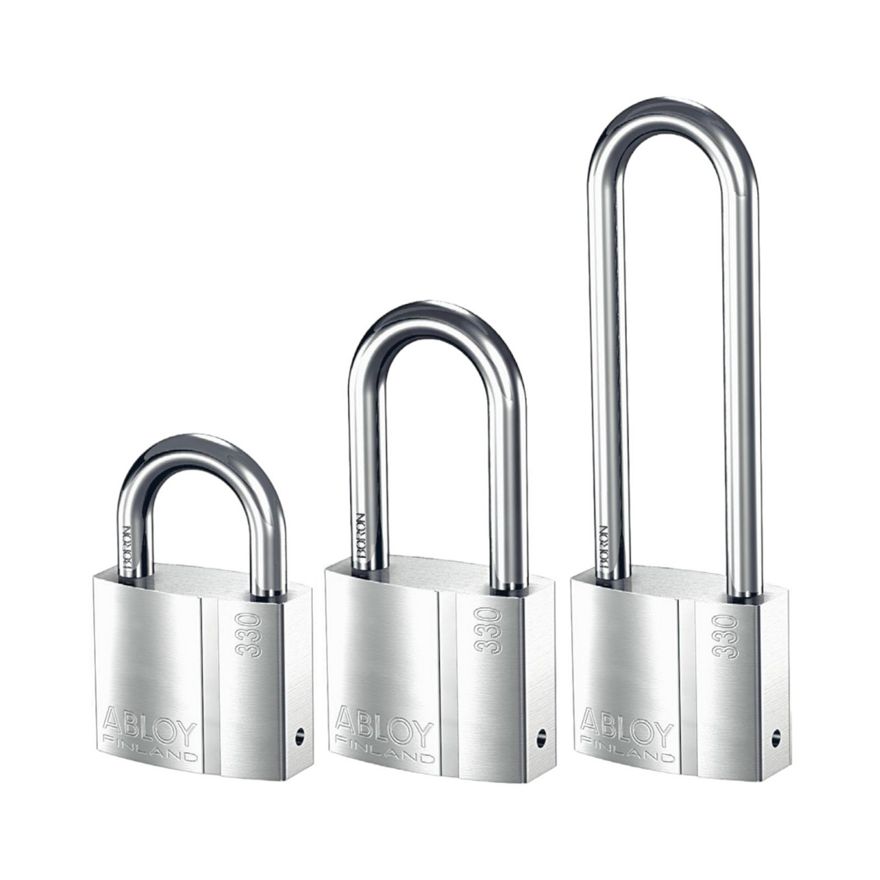

ABLOY PL330 Brass Padlock

ABLOY padlocks provide maximum resistance against physical attack. The hardened, free-spinning protection plate prevents drill bits from penetrating the lock. Further security is provided by the hardened stainless ball bearings locking the shackle at both ends. The highest security can be provided by non-rekeyable construction.

The unique rotating disc cylinder system employed in ABLOY padlocks is effectively pick-proof and enables an extraordinarily wide range of comprehensive master keying options.

An all-purpose padlock of durable construction for storage doors, motorcycles, gates, trailers, power station switches etc.

Equipped with hardened boron steel shackle, diameter 8 mm.

  • Grade 3

Also available with non-sparking brass or stainless steel shackle (security grading not tested).

For SCEC endorsed intruder resistant area applicatons this padlock must be fitted with an ABLOY PROTEC or Disklock Pro cylinder.

7df09-130520042045389

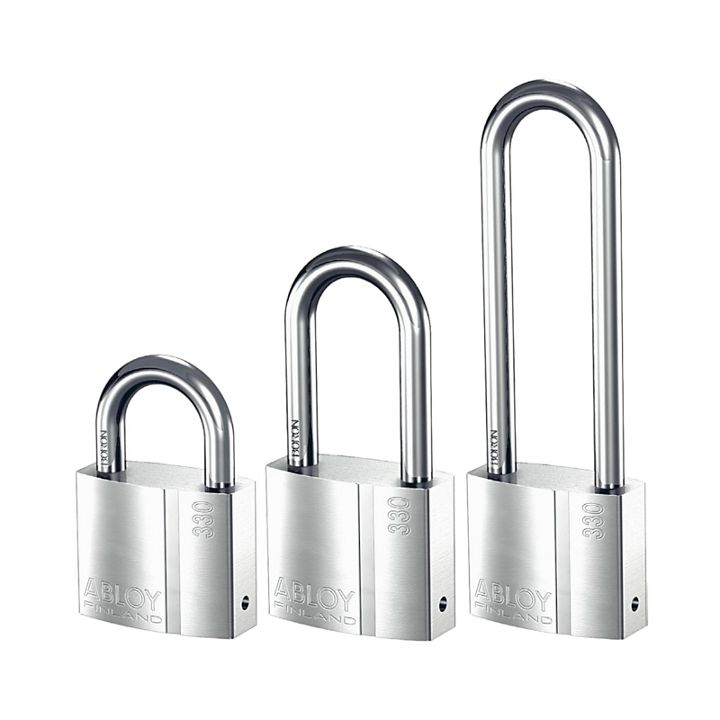

ABLOY PL330 Brass Padlock

7df09-130520042045389

PL330
Grade: 3

Body
Material: Brass
Finish: Chrome

Shackle
Material: Case-hardened boron steel
Finish: Chrome
Diameter: 8mm
Vertical Clearance: 25mm
Horizontal Clearance: 25mm

Number of Discs: 11

Key removable in locked position

Keying Platforms

ABLOY® PROTEC2 (T)
ABLOY® PROTEC (N)
ABLOY® CLASSIC (C)

_________________________________________________________

PL330/50
Grade: 3

Body
Material: Brass
Finish: Chrome

Shackle
Material: Case-hardened boron steel
Finish: Chrome
Diameter: 8mm
Vertical Clearance: 50mm
Horizontal Clearance: 25mm

Number of Discs: 11

Key removable in locked position

Keying Platforms

C = ABLOY CLASSIC
N = ABLOY PROTEC

_________________________________________________________

PL330/100
Grade: Not tested

Body
Material: Brass
Finish: Chrome

Shackle
Material: Case-hardened boron steel
Finish: Chrome
Diameter: 8mm
Vertical Clearance: 100mm
Horizontal Clearance: 25mm

Number of Discs: 11

Key removable in locked position

Keying Platforms

C = ABLOY CLASSIC
N = ABLOY PROTEC

Dimensions

  • ABLOY Padlocks Brochure(PDF, 1 MB)

The ABLOY Padlock range conforms to the draft CEN (Central European Norm) grading standards for padlocks. Durable materials such as hardened boron steel provide effective protection against drilling, sawing, cutting, twisting or shimming.

  • Padlocks Comparison Table
  • Padlock Security Grades
