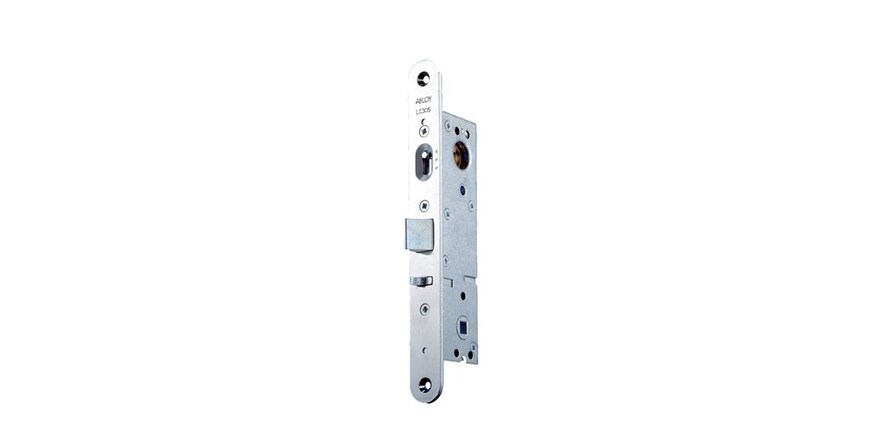

Lock case LC305X

Primarily for doors which must always be latched (e.g. fire doors) and where deadlocking is needed. Function is determined by a sliding snib on forend. When the snib is in its up position, the lock will deadlock when the door closes and can only be opened by a key or by the thumbturn. When the snib is in its middle position, the lock will latch when the door closes but can be opened by the handles. The down position of the snib is not in use. Sliding snib is released only when turning the key (or thumbturn). Microswitch version. The switch changes it’s status when the latchbolt is fully extended. The lock case works with the 4613 and 4614 striker plates. Fire resistance: EI1 15-EI1 60 and EI2 15-EI2 60.

  • Lock case LC301F

    Automatically deadlocking lock case for metal profile exit doors.

  • Lock case LC132

    Double cylinder lock case for metal profile doors, without a deadlocking function.

  • Lock case LC301FX

    Automatically deadlocking lock case for metal profile exit doors, micro switch version

  • Lock case LC301X

    Automatically deadlocking lock case for metal profile doors, micro switch version

  • Lock case LC302

    Automatically deadlocking lock case for metal profile doors.

  • Lock case LC302X

    Automatically deadlocking lock case for metal profile doors, micro switch version

  • Lock case LC303

    Mortice latch for narrow profile doors

  • Lock case LC305

    Automatically deadlocking lock case with a metal profile doors.

  • Lock case LC130

    Automatically deadlocking double cylinder lock case for metal profile doors.

  • Lock case LC300

    Lock case without a deadlocking function.

  • Lock case LC300X

    Lock case without a deadlocking function.

  • Lock case LC131

    Automatically deadlocking double cylinder lock case for metal profile doors.

  • Lock case LC301

    Automatically deadlocking lock case for metal profile doors.
