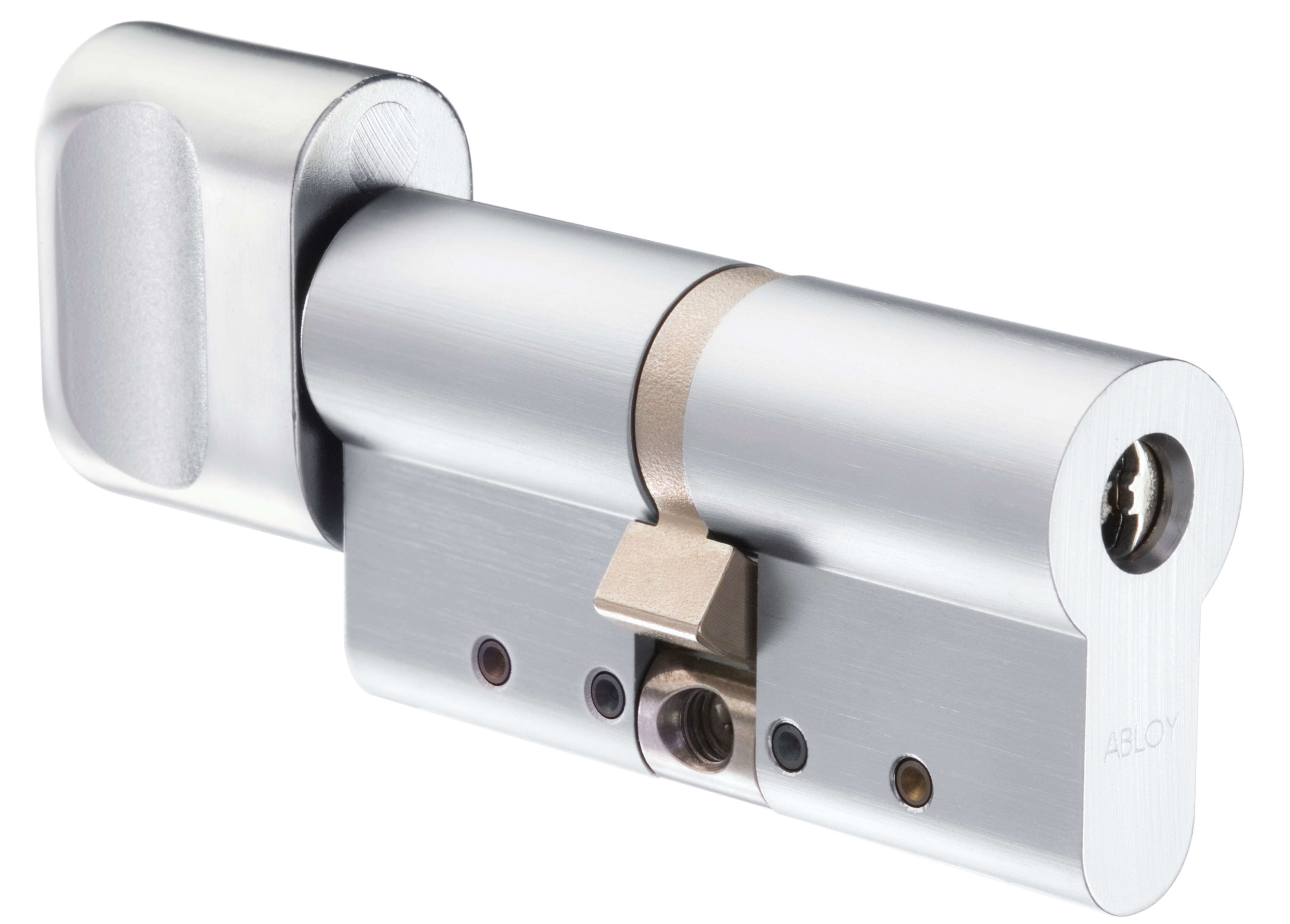

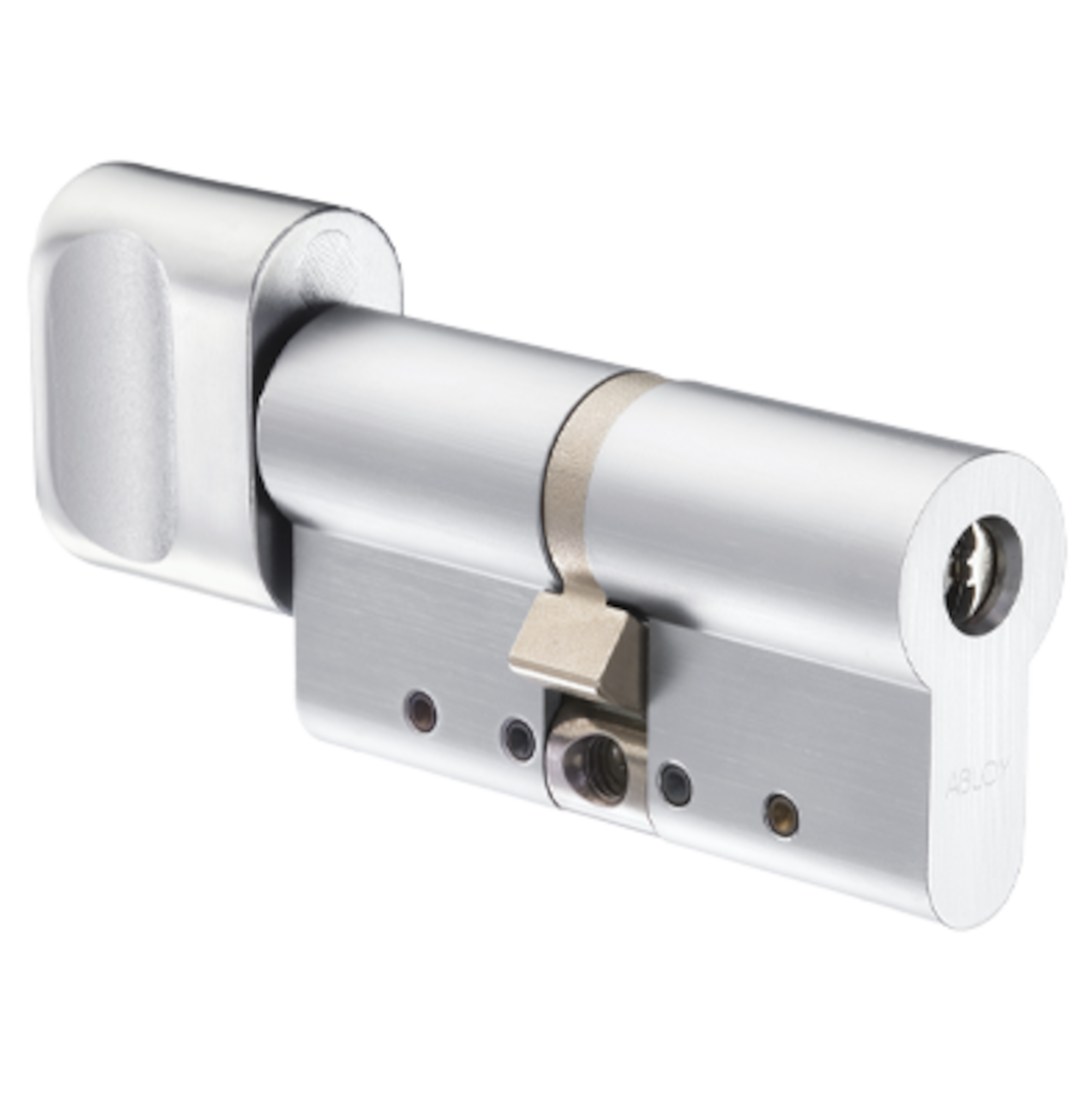

Cylinder CY328U

DIN Europrofile door cylinders are used in lock cases conforming to DIN Standard 18251.

The modular extension piece system enables easy adjustment of the cylinder length even during installation. Cylinder length is adjustable in 5mm increments up to 50mm extension and in 10mm increments up to 100mm extension.Easily adjustable cam enables eight different cam positions to allow different lock case functions.

  • Cylinder CY327U

    Europrofile brass based double cylinder. Outside length 36mm and inside length 31mm.

  • Cylinder CY326U

    Europrofile brass based single cylinder. Outside length 36mm.

  • Cylinder CY323U

    Europrofile brass based cylinder with thumbturn. Outside length 31mm and inside length 31mm.

  • Cylinder CY333U

    Europrofile steel based outside cylinder with inside thumbturn. Outside length 31mm and inside length 32mm.

  • Cylinder CY332U

    Europrofile steel based double cylinder. Outside length 32mm and inside length 31mm.

  • Cylinder CY331U

    Europrofile steel based single cylinder. Outside length 31mm.

  • Cylinder CY324U

    Europrofile brass based cylinder with thumbturn spindle. Outside length 31mm.
