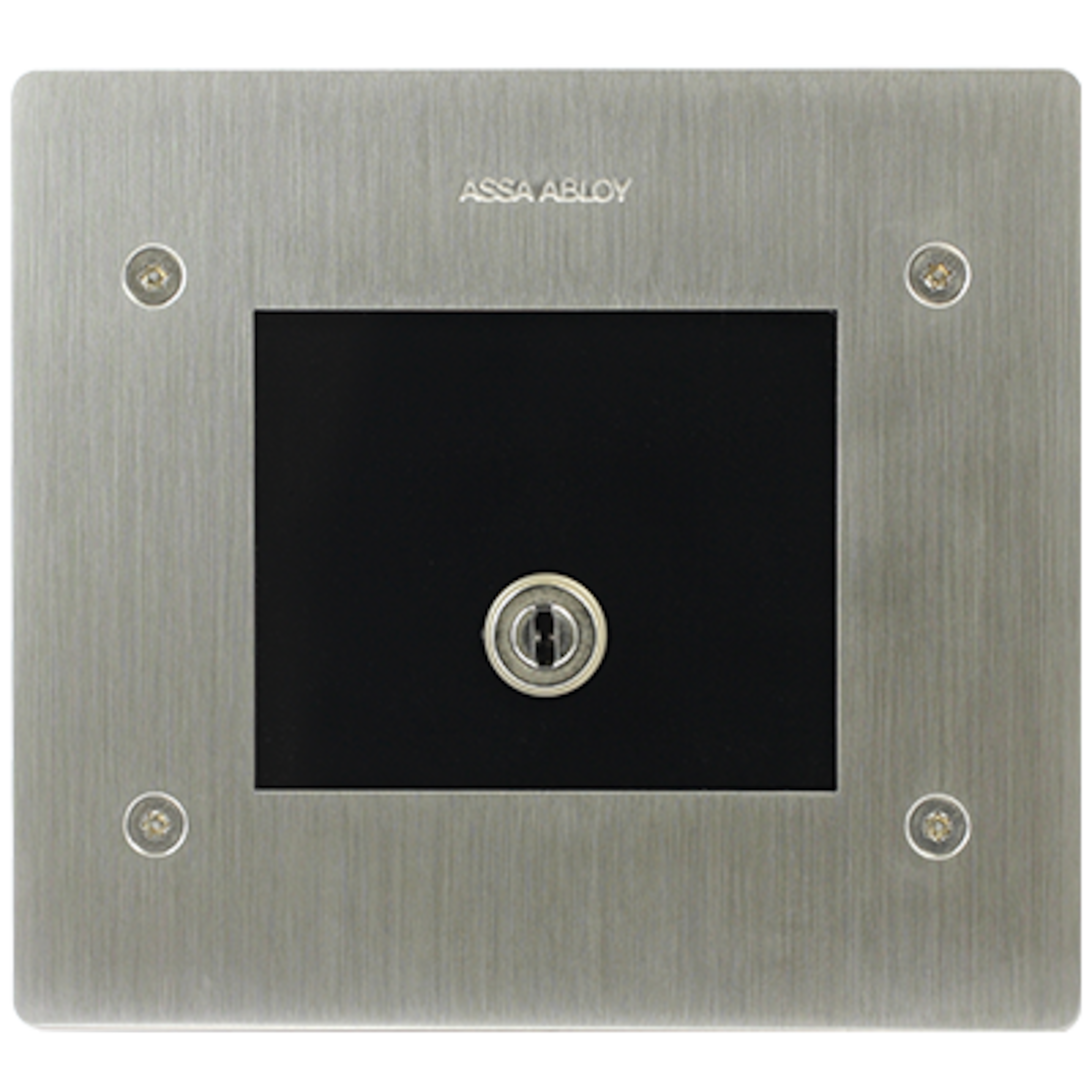

CLIQ Flush Mounted Outdoor Reader TQ312T

CLIQ Reader simplify the secure management of access for a variety of openings and switch operations. They can be fully integrated into the existing CLIQ system and are compatible with all CLIQ user keys.

The Reader verifies the status of the inserted key and, if authorization is valid, switches the potential‑free contact. An inbuilt white LED displays the Reader’s status. The acoustic and visual authorization signals are displayed directly on the key. Access rights are programmed via the CLIQ Web Manager or CLIQ Local Manager.

The CLIQ Outdoor Reader comes in a robust stainless-steel housing with protection against weather, dust and vandalism.

Where to deploy a CLIQ Outdoor Reader

• Doors with electric strikes or motorized locks
• Automatic revolving doors or sliding glass doors
• Barriers, gates, and other entrances

Technical data and features:

Housing material / colour: Stainless steel

Mounting options: Flush mounting

Dimensions (W x H x D): Installation dimension 135 x 121 x 45 mm, front plate 156 x 140 x 7 mm

Key adapter: PROTEC2 CLIQ

Connection: Offline

Interfaces: Free output: 1 A at 12 V AC or 24 V DC; Adjustable switch time (approx. 1 – 10 s) with optional activation on key insertion or removal

Indicators: Operation indicator: White LED on the display; Authorization status: Visual and acoustic signal in the key

Data storage: Yes

Security: Contact-based data transmission; Secure element on separate PCB (remote relay unit), max. distance 2 m

Encryption: AES / 3DES

Power: 12 V DC to 24 V DC ± 10 %; Current consumption at 12 V DC 0.1 A (power supply is not included in the delivery)

Operating temperature range: –25 °C to +60 °C

Relative humidity: < 99 % (non-condensing)

Ingress protection: IP65

Impact protection: IK09

Certification: CE
