Mechanical industrial locks

Key removable in locked position.

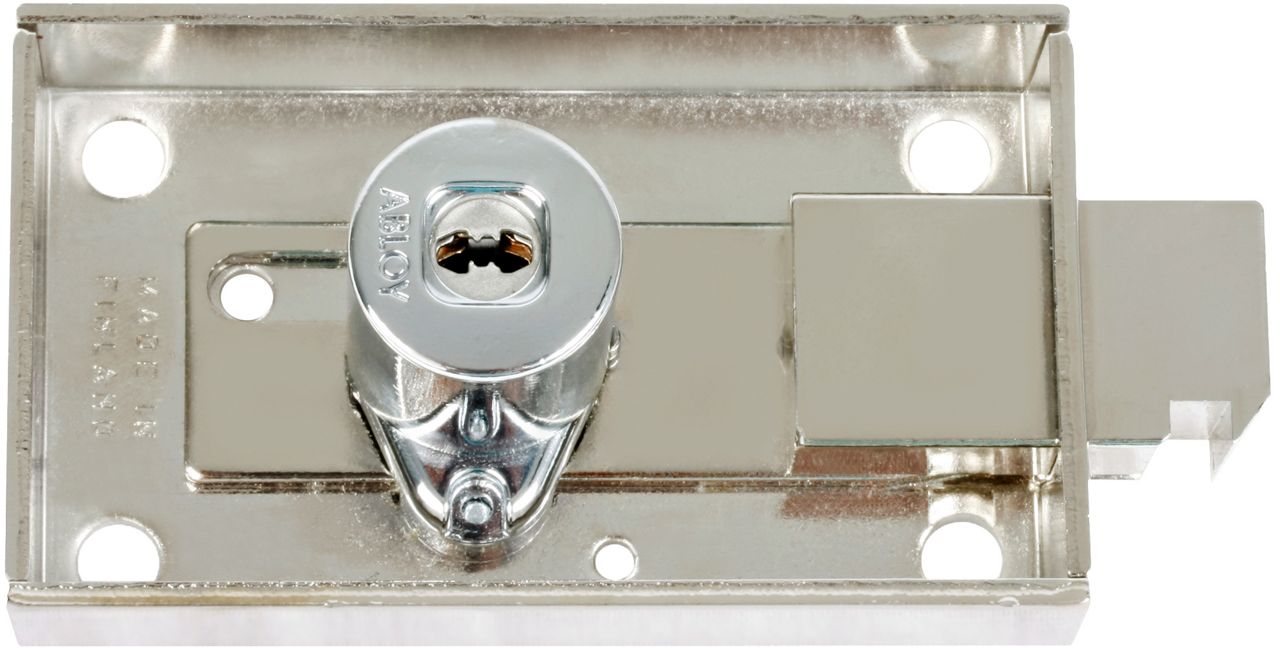

Single cylinder lock operated with customer's key. Can be connected to operate with an electric striker plate

ABLOY PROTEC, ABLOY SENTRY and ABLOY CLASSIC

For left-handed doors. Maximum door thickness in assembling 14,5 mm.

ABLOY PROTEC, ABLOY SENTRY and ABLOY CLASSIC

Key removable in locked position.

Two mechanically operated cylinders (customer´s and a bander's cylinders). Both keys are required to open the lock. Locking can be carried out with the customer's key only.

ABLOY PROTEC, ABLOY SENTRY and ABLOY CLASSIC

For left-handed doors. Maximum door thickness in assembling 18 mm.

ABLOY PROTEC, ABLOY SENTRY and ABLOY CLASSIC

For right-handed doors. Maximum door thickness in assembling 14.5mm.

ABLOY PROTEC, ABLOY SENTRY and ABLOY CLASSIC

For right-handed doors. Maximum door thickness in assembling 18mm.

ABLOY PROTEC, ABLOY SENTRY and ABLOY CLASSIC

Key-operated switch locks provide key-actuated switching for burglar alarms, control boxes and other high security applications

in "on" and "off" positions.

52mm

ABLOY PROTEC2, ABLOY PROTEC, ABLOY SENTRY and ABLOY CLASSIC

Can be masterkeyed with door lock cylinders

Chrome plated brass.

Zinc-plated steel.

Key-operated switch locks provide key-actuated switching for burglar alarms, control boxes and other high security applications

in "off" position

52mm

ABLOY PROTEC2, ABLOY PROTEC, ABLOY SENTRY and ABLOY CLASSIC

Can be masterkeyed with door lock cylinders

Chrome plated brass.

Zinc-plated steel.

Operating voltage 9V. Time delay adjustable from 1 to 15 minutes. Opening period adjustable from 20 to 50 seconds.

ABLOY SENTRY

Lock case and bolt nickel-plated steel

Operating voltage 6-12V. Current consumption during activation pulse 240mA. Minimum pulse duration to activate 0,4 seconds.

Locking unit yellow passivated zinc. Locking balls of case-hardened steel.

Key-operated switch locks provide key-actuated switching for burglar alarms, control boxes and other high security applications

Momentary contact key removable in "off" position

52mm

ABLOY PROTEC2, ABLOY PROTEC, ABLOY SENTRY and ABLOY CLASSIC

Can be masterkeyed with door lock cylinders

Chrome plated brass.

Zinc-plated steel.

Operating voltage 6-12V. Current consumption during activation pulse 240mA. Minimum pulse duration to activate 0,4 seconds.

ABLOY PROTEC2, ABLOY SENTRY and ABLOY CLASSIC

Lock case and bolt nickel-plated steel
