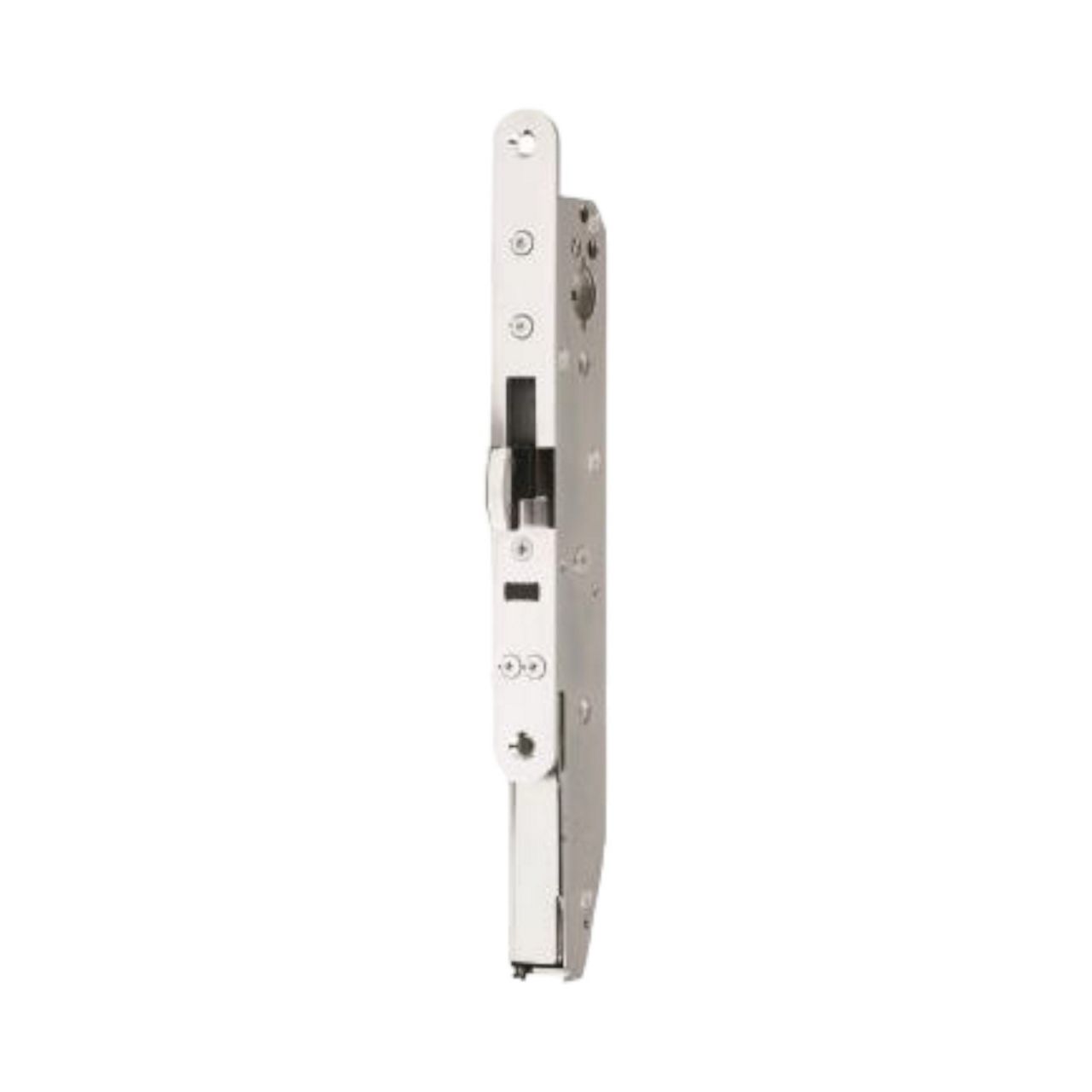

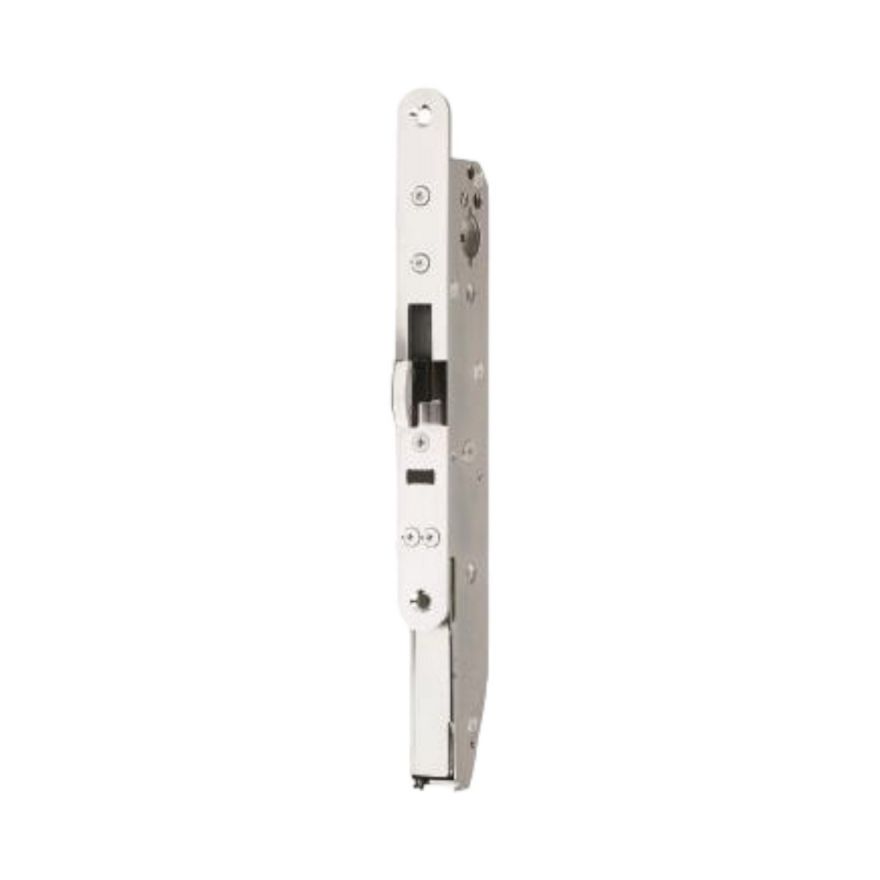

ABLOY EL648 Motor Lock

The EL648 is a heavy duty motor lock with hook bolt for narrow style doors. They provide superior mechanical strength against physical attack. The EL648 is used in high security auxiliary lock in applications such as gates and exterior doors of industrial premises, shopping centres, business premises etc. The lock is especially suited for sliding doors as it can be installed in the door frame or the door leaf. EL648 is ideal for night locking that requires greater strength and security. The lock can be controlled by a variety of electrical impulse generating equipment such as a card reader, keypad or timer. This lock is suitable for use with sliding door operators.

Key Features

• High security motor bolt.
• Lock case is connected with a separate control unit.
• 12-24Vdc operating voltage
• Configuration of deadbolt either 14mm or 20mm
• Increased protection against manipulation
• Striker plate includes door position magnet.
• Fully monitored, bolt in/bolt out, door position manual operation
• Can configure lock in fail safe and fail secure (Backup card required to set the lock case to go to desired position in case of power failure)

Note: Lock requires EA460 Control unit to operate.
