ABLOY® switch locks provide key-actuated switching for burglar alarms, control boxes and other high security applications.
The locks are available in three different models:
EP400Key removable in "on" and "off" positions
EP401Key removable in "off" position
EP402Momentary-contact key removable in "off" position

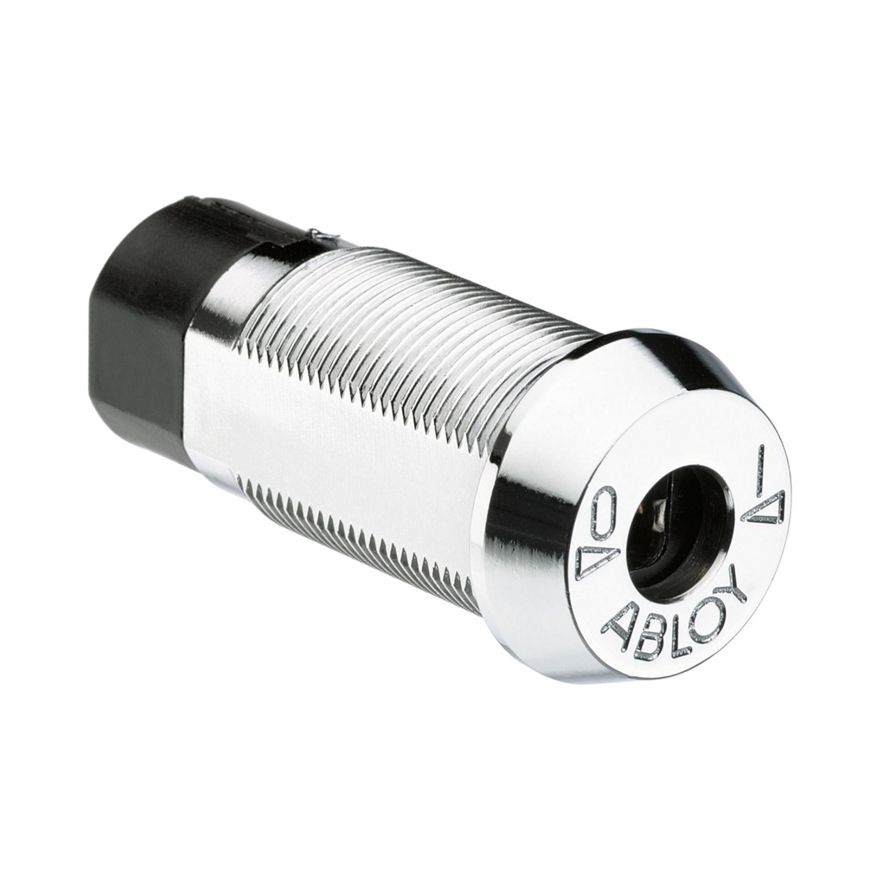

ABLOY EP400, EP401 and EP402
This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.
Remember my choice*
*Your choice will be saved in a cookie until you have closed your browser.
Locks can be fitted on panels from 0.5 mm to 22 mm thick
MicroswitchHoneywell 1SX1-H58 forcontacting with AMP 0.058 inch (1.47 mm) reseptables
Electrical specifications7A, 250 VAC 7A res., 28 VDC 4A ind., 28 VDC
Operational range-54º to +120 ºC
Cylinder is available with Keying platforms:
Material and finish
Cylinder housing: chrome-plated brass First Disc: Case-hardened nickel-plated steel Hex nut: zinc-plated steel Coupling piece and switch mounting plug: molded plastic Other parts: brass, stainless steel, tin bronze

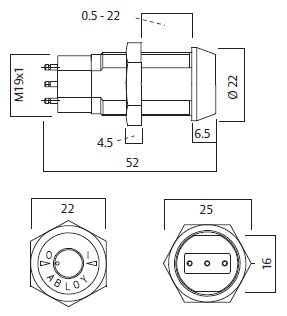

Dimensions
