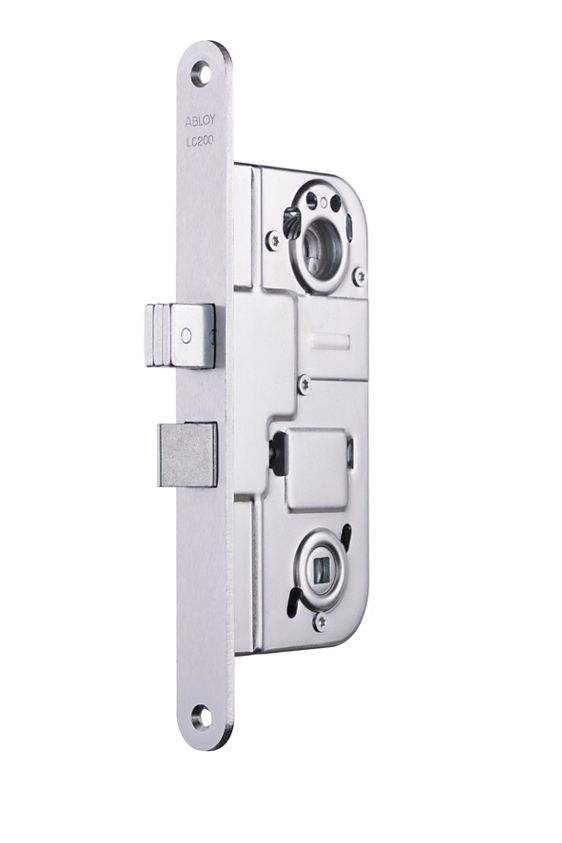

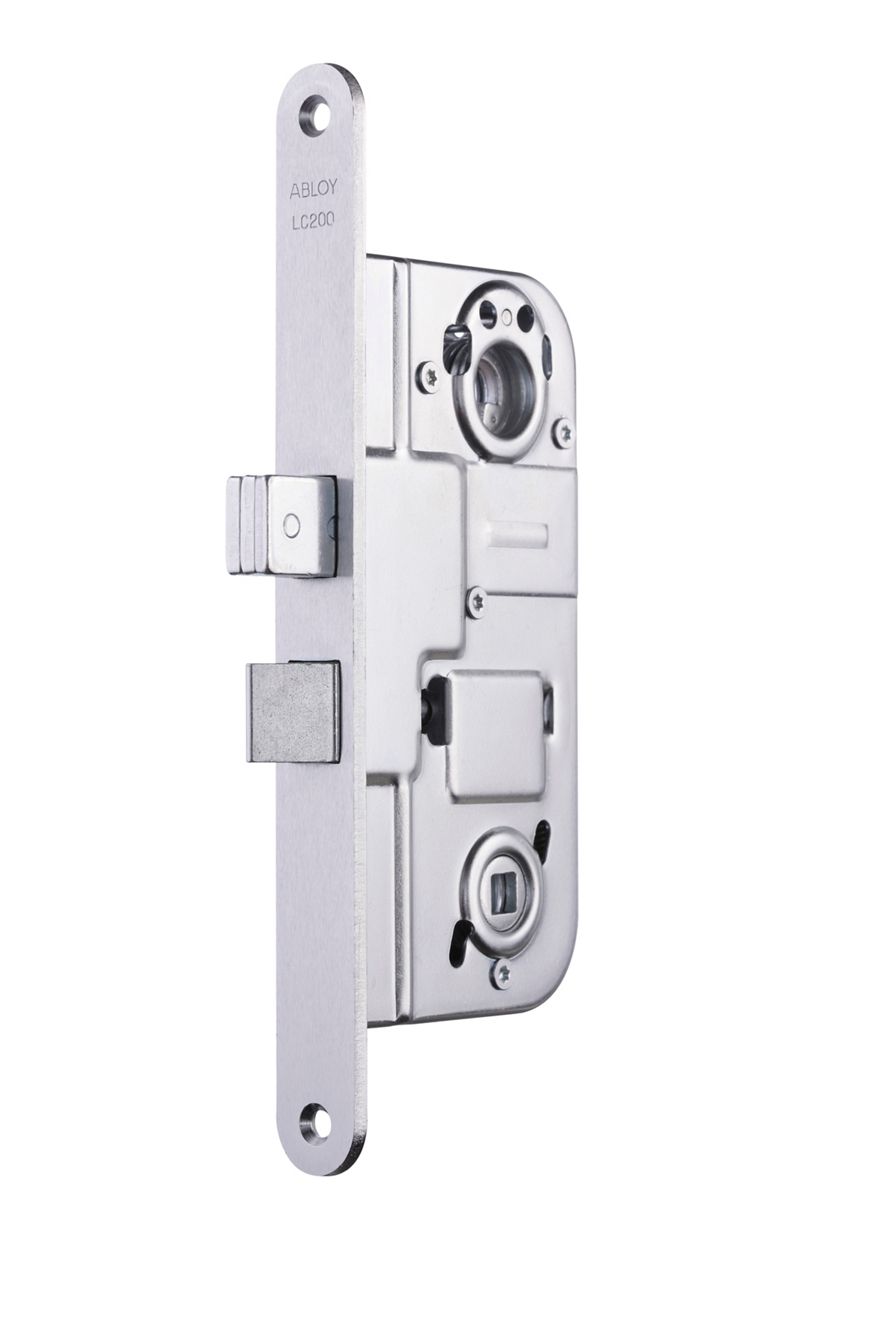

Lock case LC200

Lock case with a deadbolt protruding 20 mm and a latchbolt.

The deadbolt is locked and retracted by turning the key or thumbturn 90°.

A further 5° turn will retract the latchbolt as well.

The latchbolt is retracted also by the lever handles.

LC200X is the microswitch version of the lock.

The switch changes it’s status when the bolt has protruded to 20 mm.

Striker plate

LP712, LP717, LP722, LP732, 0034, 0079

Finish

Fe/ZL

Cylinder

ABLOY® N, T, U, SCAND

Fire resistance

Yes

Mortise standard

SFS 5208, SS 81 73 83
