Mechanical lock cases
Products
Interior door lock 2016
Cylinder lock case for interior doors. It can be locked using a key or a thumbturn.
In locked position, the deadbolt protrudes 14 mm.
Lock handing can easily be changed by pulling out the latchbolt and turning it 180° clockwise.
Striker plate0043, 0045, 0053, 0055, 0068, 0068B
FinishFe/ZL
Fire resistance-
CylinderSCAND
Mortise standardSFS 5210, SS 81 73 82
Lock case LC200
Lock case with a deadbolt protruding 20 mm and a latchbolt.
The deadbolt is locked and retracted by turning the key or thumbturn 90°.
A further 5° turn will retract the latchbolt as well.
The latchbolt is retracted also by the lever handles.
LC200X is the microswitch version of the lock.
The switch changes it’s status when the bolt has protruded to 20 mm.
Striker plateLP712, LP717, LP722, LP732, 0034, 0079
FinishFe/ZL
CylinderABLOY® N, T, U, SCAND
Fire resistanceYes
Mortise standardSFS 5208, SS 81 73 83
Lock case LC210
Security mortise lock (security grade 5 according to EN 12209) with a hardened bolt and drilling protection.
The deadbolt has 20 mm bolt throw.
The deadbolt is locked and retracted by turning the key 360° or thumbturn 90°.
The key can only be removed when the deadbolt is fully locked or retracted.
The latchbolt is retracted by the lever handles only.
LC210X is the microswitch version of the lock.
The switch changes it’s status when deadbolt protrudes moves to 20 mm.
Striker plateLP710, LP712, LP717, LP722, LP732, 0079

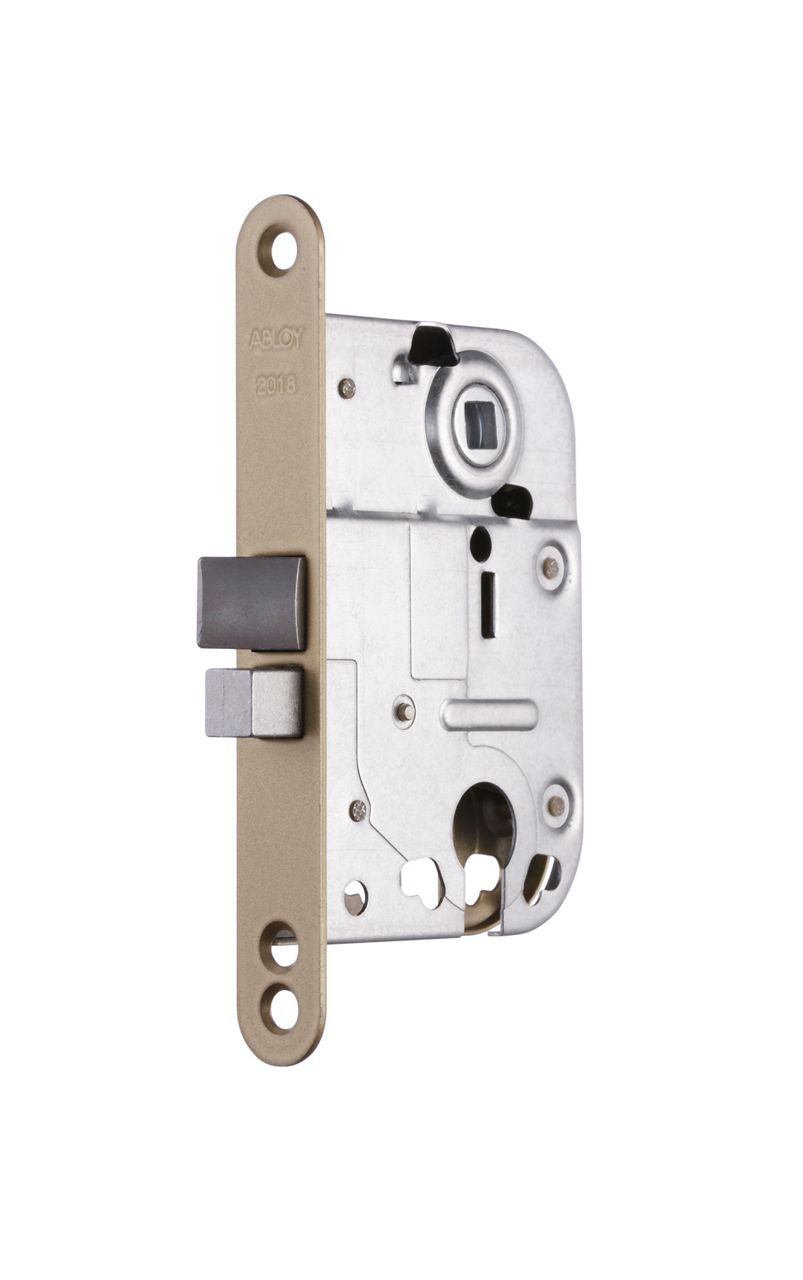

FinishInterior door lock 2018
Cylinder lock for interior doors.
The lock can be opened and locked by turning the key one turn.
In locked position, the deadbolt protrudes 14 mm.
The latch can be retracted both by handles or by key.
Lock handing can easily be changed by pulling out the latchbolt and turning it 180° clockwise.
Striker plate0043, 0045, 0053, 0055, 0068, 0068B
FinishFe/Mme, Fe/ZL
Fire resistanceYes
CylinderEuro DIN
Mortise standard,Special mortise
Security lock 4232
Exit lock LE180
Exit lock cases with automatic deadlocking latchbolt for wooden doors with one blade.
The door is opened from outside with a lever handle.
The lock case fulfils the requirements of the European standard for exit products SFS-EN179 and SFS-EN1125 and the requirements of the lock case standard SFS-EN12209.
The lock is always opened from the inside by a lever handle, push pad or panic bar.
Deadlocking is controlled by a snib in the front plate.
Using of the snib is normally blocked.
The snib is released by turning the key.
Snib position:UP = Deadlocking, latchbolt protrudes 17 mm
The lock can be opened from outside by key only and from inside by a lever handle, push pad or panic bar.
DOWN = Latchbolt protrudes 14 mm. The lock can be opened from outside by lever handle also.
LE180X is the microswitch version of the lock.
The switch changes the status when latchbolt is protruded from 14 mm to 17 mm.
Following striker plates are recommended to be used with microswitch version: 4692, 4693.
Striker plateLP711, LP714, LP721, LP731
FinishFe/ZL
CylinderABLOY. C, N, T, U
Fire resistance:Wooden doors EI115 - EI130 and EI215 – EI230,
Metal doors EI115 - EI1120 and EI215 – EI2120
Mortise standardOneFit mortise
Exit lock LE181
Exit lock case with automatic deadlocking latchbolt for the active side of wooden doors with two blades.
The door is opened from outside with a lever handle.
The lock case fulfils the requirements of the European standard for exit products SFS-EN179 and SFS-EN1125 and the requirements of the lock case standard SFS-EN12209.
The lock is always opened from the inside by a lever handle, push pad or panic bar.
The latchbolt protrudes 14 mm.
Deadlocking is controlled by a snib in the front plate.
Using of the snib is normally blocked.
The snib is released by turning the key.
Snib position:UP = Deadlocking
The lock can be opened from outside by key only and from inside by a lever handle, push pad or panic bar.
DOWN = Day latching, the lock can be opened from outside by lever handle also
LE181X is the microswitch version of the lock.
The switch changes the status when latchbolt is deadlocked.
Passive lock caseEXH911, EXB911, EXH915
FinishFe/ZL
CylinderABLOY. C, N, T, U
Fire resistance:Wooden doors EI115 - EI130 and EI215 – EI230,
Metal doors EI115 - EI1120 and EI215 – EI2120
Mortise standardOneFit Mortise
Exit lock LE184
Exit lock case with automatic deadlocking latchbolt for wooden doors with one blade.
The door is opened from outside with a door pull.
The lock case fulfils the requirements of the European standard for exit products SFS-EN179 and SFS-EN1125 and the requirements of the lock case standard SFS-EN12209.
The lock is always opened from the inside by a lever handle, push pad or panic bar.
The lock is deadlocked always when the door is closed.
Latchbolt protrudes 17 mm.
LE184X is the microswitch version of the lock.
The switch changes the status when latchbolt is protruded from 14 mm to 17 mm.
Following striker plates are recommended to be used with microswitch version: 4692, 4693.
Striker plateLP711, LP714, LP721, LP731
FinishFe/ZL
CylinderABLOY. C, N, T, U
Fire resistance:Wooden doors EI115 - EI130 and EI215 – EI230,
Metal doors EI115 - EI1120 and EI215 – EI2120
Mortise standardOneFit mortise
Exit lock LE185
Exit lock case with automatic deadlocking latchbolt for wooden doors with one blade.
The door is opened from outside with a door pull.
The lock case fulfils the requirements of the European standard for exit products SFS-EN179 and SFS-EN1125 and the requirements of the lock case standard SFS-EN12209.
The lock is always opened from the inside by a lever handle, push pad or panic bar.
Deadlocking is controlled by a snib in the front plate.
Using of the snib is normally blocked.
The snib is released by turning the key.
Snib position:UP = Deadlocking, latchbolt protrudes 17 mm
The lock can be opened from outside by key only and from inside by a lever handle, push pad or panic bar.
DOWN = Latchbolt is retained inside the lock case.
LE185X is the microswitch version of the lock.
The switch changes the status when latchbolt is protruded from 14 mm to 17 mm.
Following striker plates are recommended to be used with microswitch version: 4692, 4693.
Striker plateLP711, LP714, LP721, LP731
FinishFe/ZL
CylinderABLOY. C, N, T, U
Fire resistance–
Mortise standardOneFit mortise
Exit lock LE186
Exit lock case with automatic deadlocking latchbolt for the active side of wooden doors with two blades.
The door is opened from outside with a door pull.
The lock case fulfils the requirements of the European standard for exit products SFS-EN179 and SFS-EN1125 and the requirements of the lock case standard SFS-EN12209.
The lock is always opened from the inside by a lever handle, push pad or panic bar.
The latchbolt protrudes 14 mm.
Deadlocking is controlled by a snib in the front plate.
Using of the snib is normally blocked.
The snib is released by turning the key.
Snib position:UP = Deadlocking
The lock can be opened from outside by key only and from inside by a lever handle, push pad or panic bar.
DOWN = Latchbolt is retained inside the lock case.
LE186X is the microswitch version of the lock.
The switch changes the status when latchbolt is deadlocked.
Passive lock caseEXH911, EXB911, EXH915
FinishFe/ZL
CylinderABLOY. C, N, T, U
Fire resistance–
Mortise standardOneFit mortise
Exit lock LE310
Exit lock case with automatic deadlocking latchbolt for profi le doors with one blade.
The door is opened from outside with a lever handle.
The lock case fulfi ls the requirements of the European standard for exit products SFS-EN179 and SFS-EN1125 and the requirements of the lock case standard SFS-EN12209.
The lock is always opened from the inside by a lever handle, push pad or panic bar.
The latchbolt protrudes 14 mm.
Deadlocking is controlled by a snib in the front plate.
Using of the snib is normally blocked.
The snib is released by turning the key.
Snib position:UP = Deadlocked, the lock can be opened from outside by key only and from inside by a lever handle, push pad or panic bar.
DOWN = Day latching, the lock can be opened from outside by lever handle also.
LE310X is the microswitch version of the lock.
The switch changes the status when latchbolt is deadlocked.
Striker plateLP702, LP703
FinishFe/ZL
CylinderABLOY. C, N, T, U,
Fire resistanceEI115-EI160 and EI215-EI260
Exit lock LE310
Exit lock case with automatic deadlocking latchbolt for profi le doors with one blade.
The door is opened from outside with a lever handle.
The lock case fulfi ls the requirements of the European standard for exit products SFS-EN179 and SFS-EN1125 and the requirements of the lock case standard SFS-EN12209.
The lock is always opened from the inside by a lever handle, push pad or panic bar.
The latchbolt protrudes 14 mm.
Deadlocking is controlled by a snib in the front plate.
Using of the snib is normally blocked.
The snib is released by turning the key.
Snib position:UP = Deadlocked, the lock can be opened from outside by key only and from inside by a lever handle, push pad or panic bar.
DOWN = Day latching, the lock can be opened from outside by lever handle also.
LE310X is the microswitch version of the lock.
The switch changes the status when latchbolt is deadlocked.
Striker plateLP702, LP703
FinishFe/ZL
CylinderABLOY. C, N, T, U,
Fire resistanceEI115-EI160 and EI215-EI260
