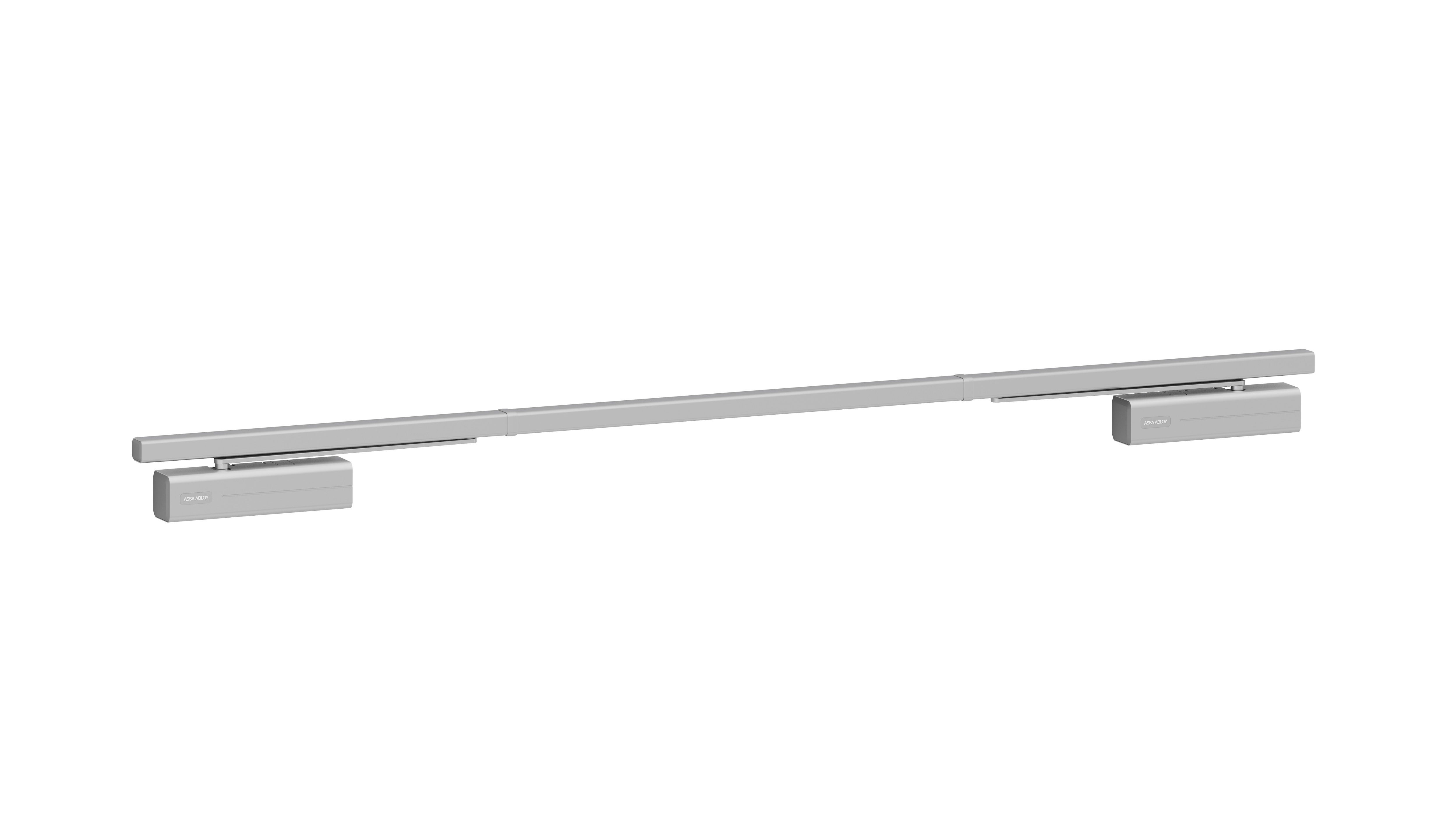

Coordinator G461

Integrated mechanical coordinator for double leaf doors. Correct closing sequence guaranteed for double leaf doors, inactive leaf closes before active leaf starts to close. Active leaf could stay open in any selected angle up to 150° when inactive leaf is opened. Standard mounting position on hinge side and non-hinge side. Non-hinge side mounting requires hook arm G120. Axis continuously height adjustable up to 14 mm. Large range of applications. Operates independently of door closers and offers best possible safety and reliability. Suitable for fire and smoke protection double leaf doors, hinge distance 1350-2500 mm, non-hinge side installation hing distance 1400-2800 mm.

Color options:
- Silver
- Black (RAL 9005)
- White (RAL 9016)
- Brown (RAL 8014)
- Stainless steel
- Special color (RAL colors + brass)
