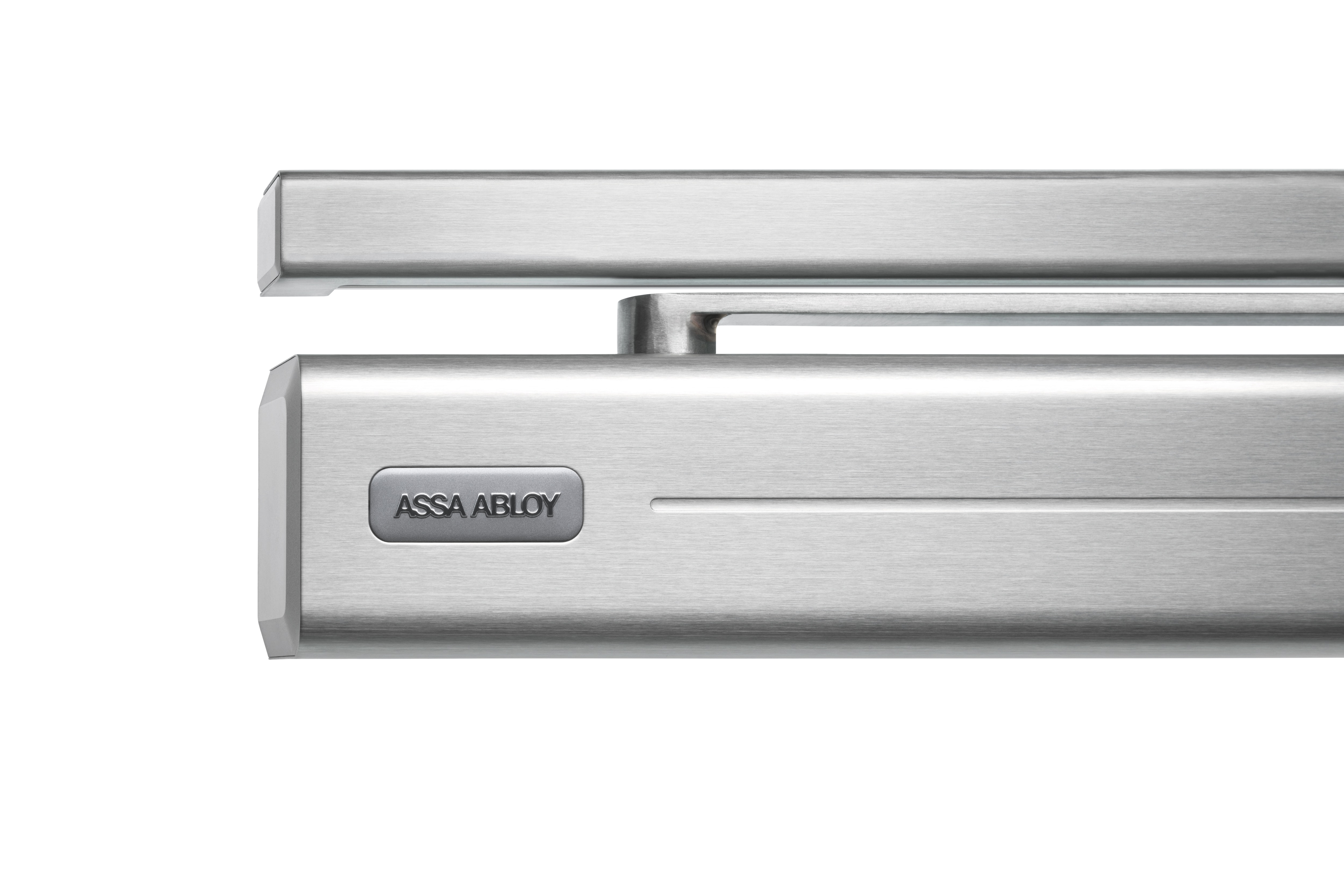

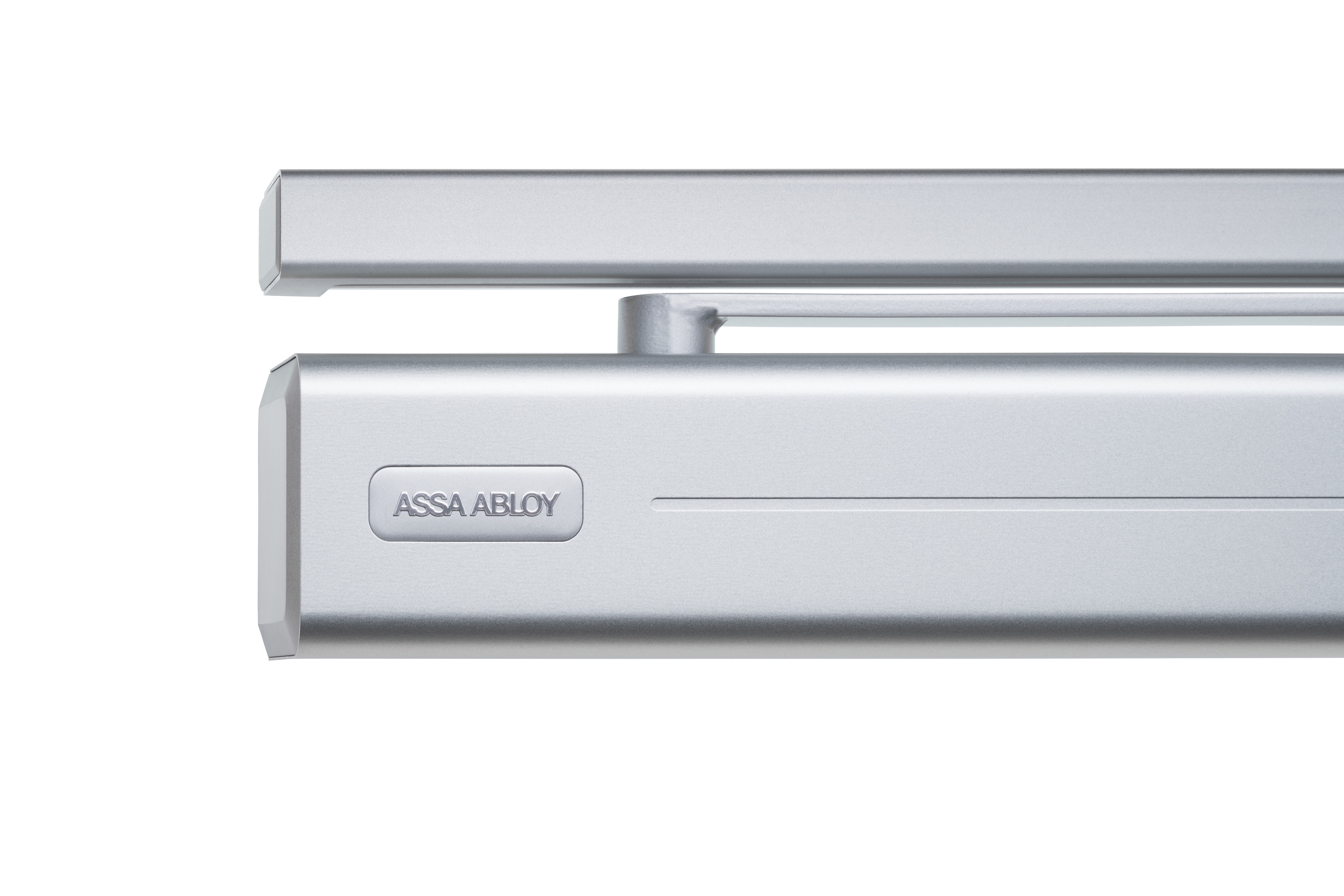

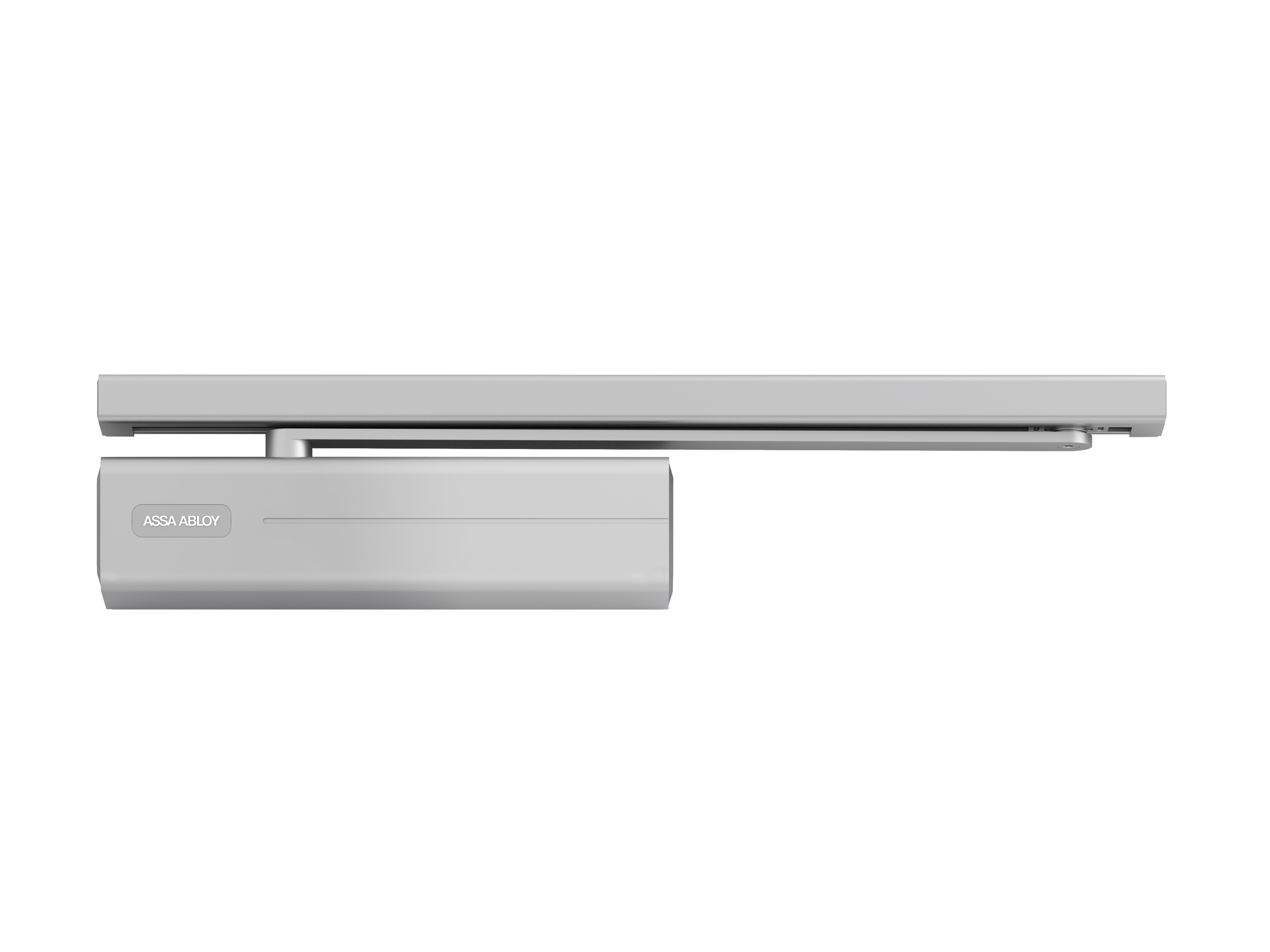

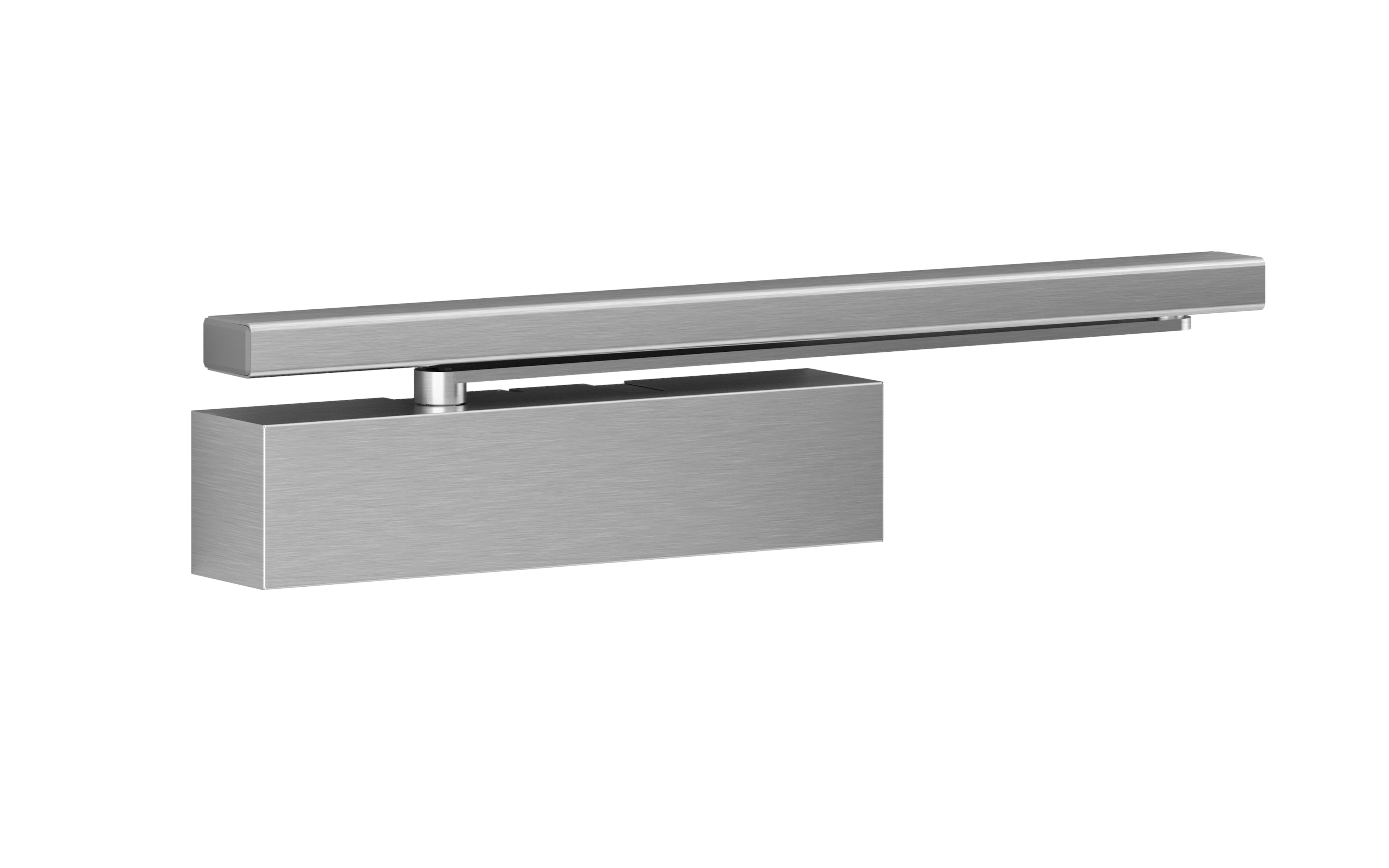

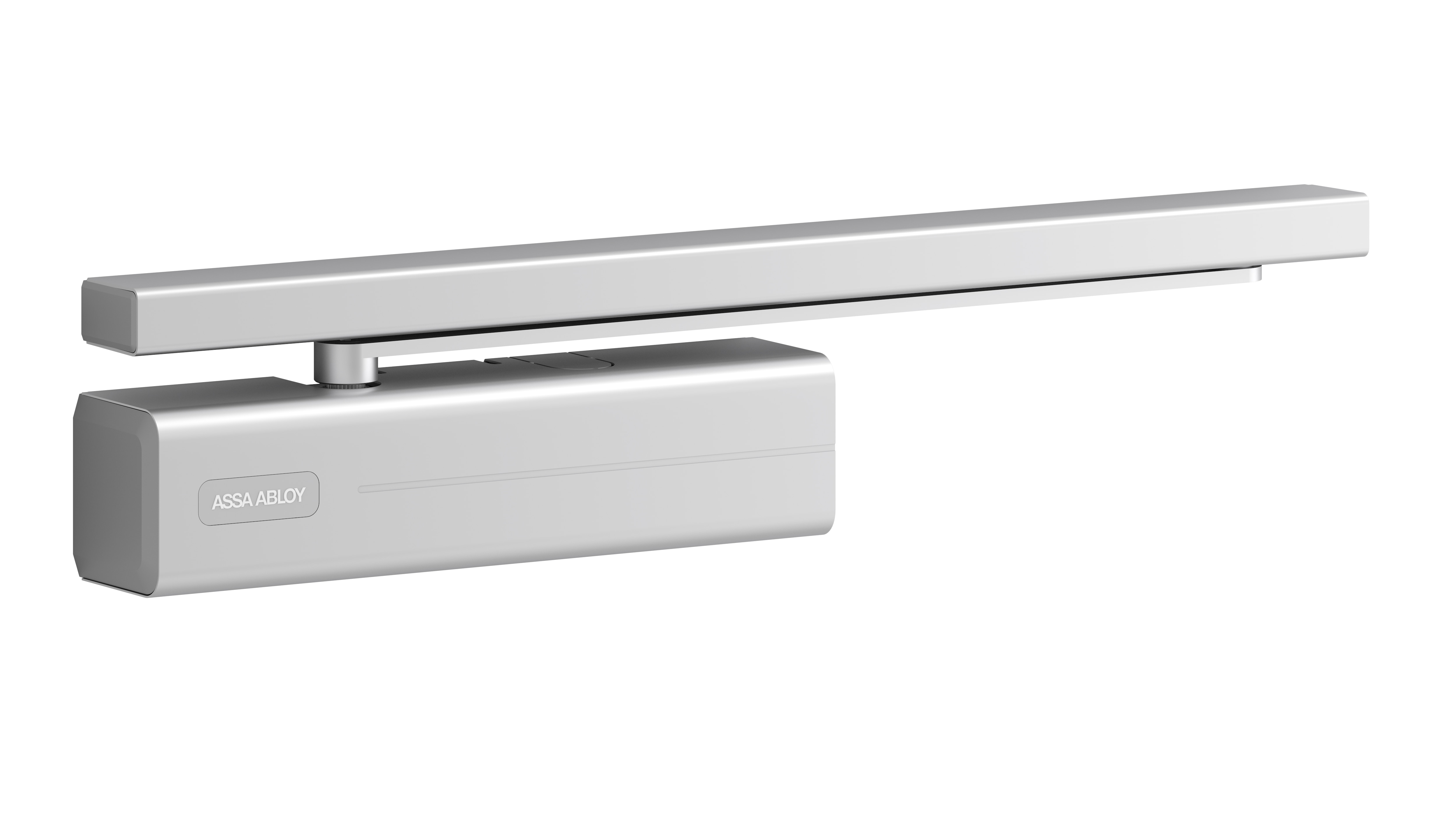

Door closer DC700
Can be used with integrated concealed mounting plate, suitable for fire and smoke protection doors. Can be used for left and right-handed doors. 14 mm height adjustable arm system for ease of fitting. Closing speed, latching speed and backcheck adjustable via front facing regulating valves. Thermodynamic valves for consistent performance. Variable adjustable closing force. Opening angle up to 160°. Effective backcheck and latching speed range adjustable. Large range of applications. Fulfils barrier-free building requirements (EA / CEN TR 15894). Certified in compliance with EN1154, size 3-6. For single action doors up to 1400 mm wide. Can be used in four installation types: hinge and non-hinge sides in standard and frame installation.

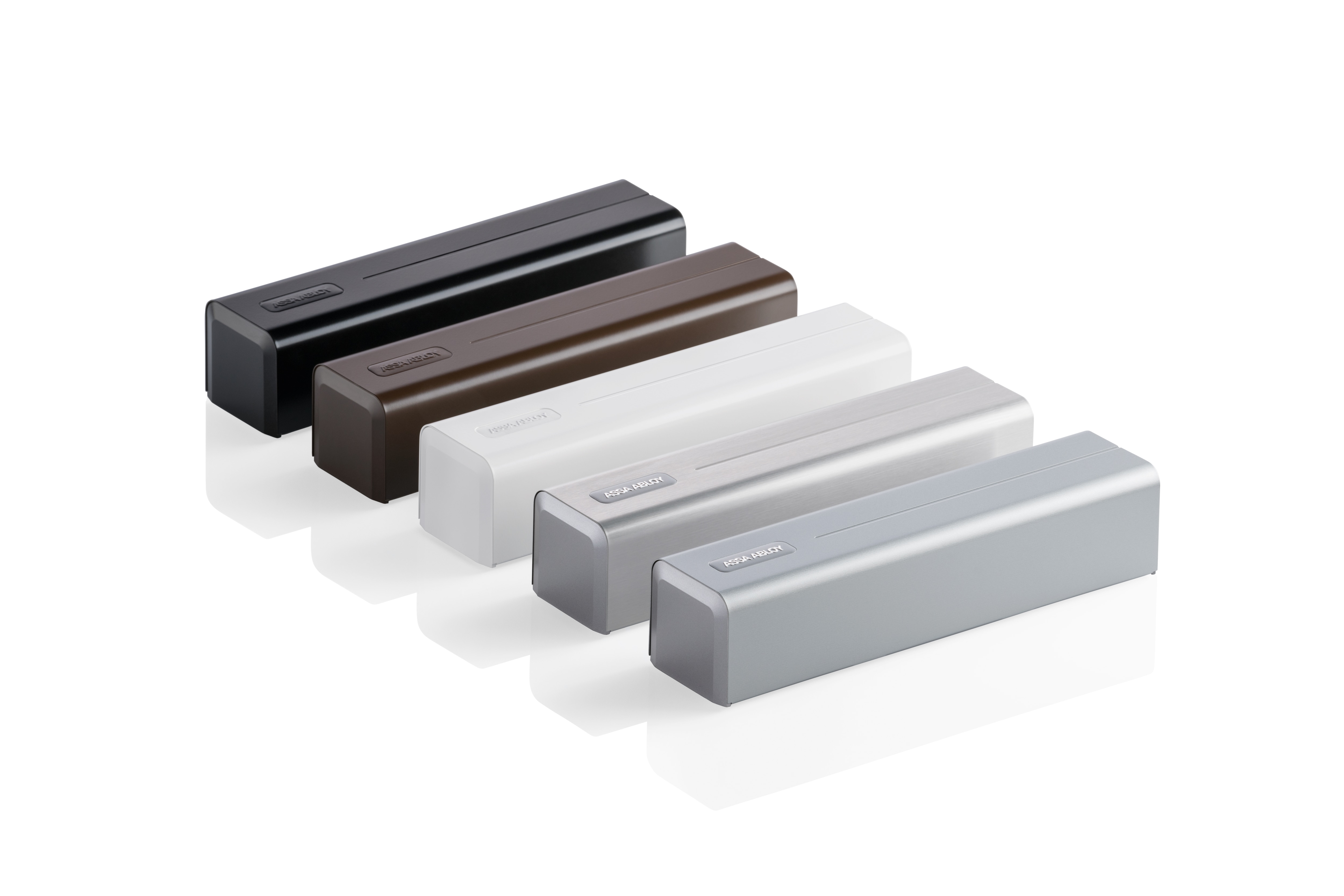

Color options:
- Silver
- Black (RAL 9005)
- White (RAL 9016)
- Brown (RAL 8014)
- Stainless steel
- Special color (RAL colors + brass)
