Time delay and micro switch locks

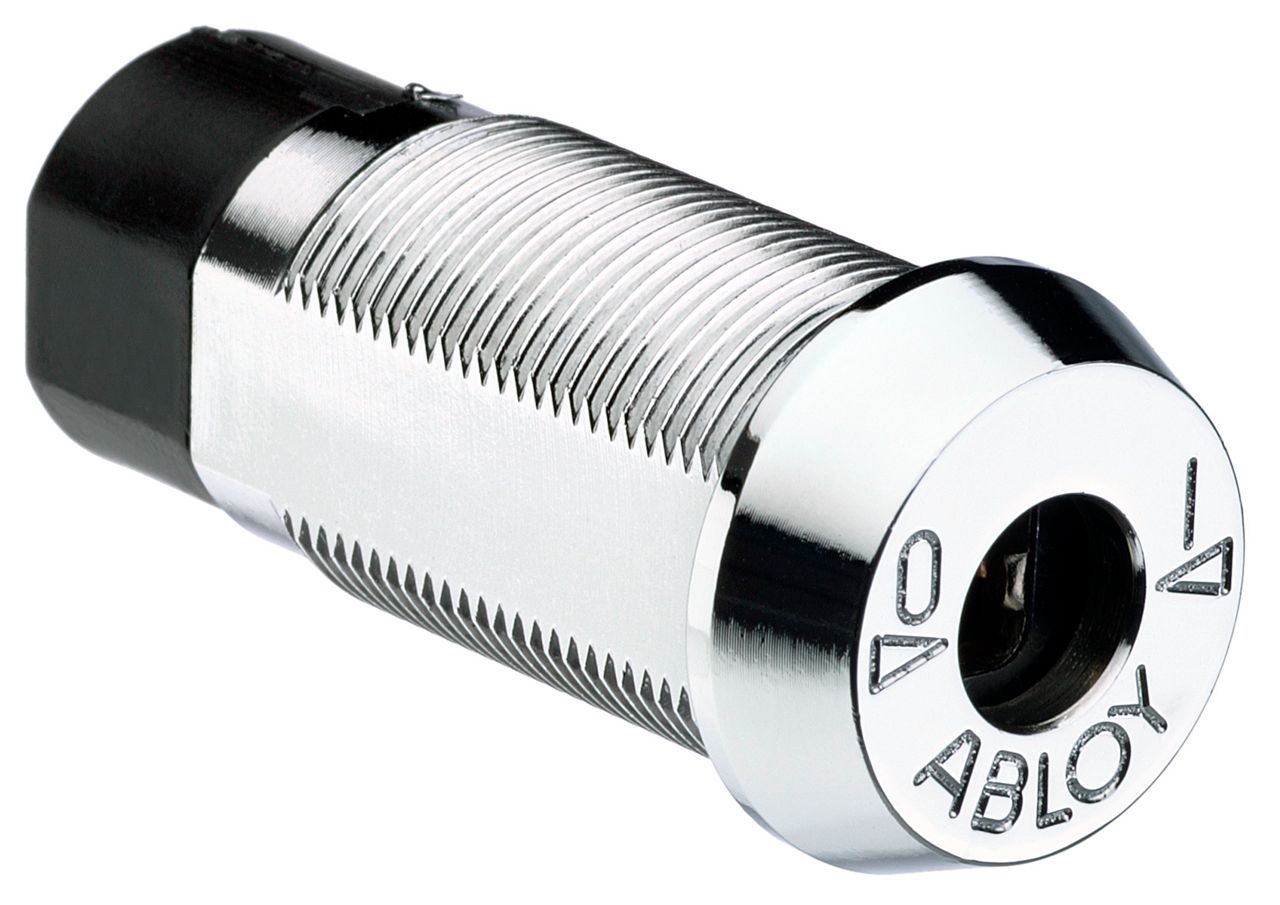

Microswitch lock EP400
Applications
Key-operated switch locks provide key-actuated switching for burglar alarms, control boxes and other high security applications
Key removable
in "on" and "off" positions.
Length
52mm
Available in cylinder systems
ABLOY PROTEC2, ABLOY PROTEC, ABLOY SENTRY and ABLOY CLASSIC

Can be masterkeyed with door lock cylinders
Material of cylinder housing:
Chrome plated brass.
Material of hex nut:
Zinc-plated steel.
Microswitch lock EP401
Applications
Key-operated switch locks provide key-actuated switching for burglar alarms, control boxes and other high security applications
Key removable
in "off" position
Length
52mm
Available in cylinder systems
ABLOY PROTEC2, ABLOY PROTEC, ABLOY SENTRY and ABLOY CLASSIC

Can be masterkeyed with door lock cylinders
Material of cylinder housing:
Chrome plated brass.
Material of hex nut:
Zinc-plated steel.
Microswitch lock EP402
Applications
Key-operated switch locks provide key-actuated switching for burglar alarms, control boxes and other high security applications
Key removable
Momentary contact key removable in "off" position
Length

52mm
Available in cylinder systems
ABLOY PROTEC2, ABLOY PROTEC, ABLOY SENTRY and ABLOY CLASSIC

Can be masterkeyed with door lock cylinders
Material of cylinder housing:
Chrome plated brass.
Material of hex nut:
Zinc-plated steel.
Time delay lock EP303
Details
Operating voltage 6-12V. Current consumption during activation pulse 240mA. Minimum pulse duration to activate 0,4 seconds.

Locking unit yellow passivated zinc. Locking balls of case-hardened steel.
Time delay lock EP310
Details
Operating voltage 9V. Time delay adjustable from 1 to 15 minutes. Opening period adjustable from 20 to 50 seconds.
Available in cylinder systems
ABLOY SENTRY

Lock case and bolt nickel-plated steel
Time delay lock EP312
Details
Operating voltage 6-12V. Current consumption during activation pulse 240mA. Minimum pulse duration to activate 0,4 seconds.
Available in cylinder systems
ABLOY PROTEC2, ABLOY SENTRY and ABLOY CLASSIC

Lock case and bolt nickel-plated steel
