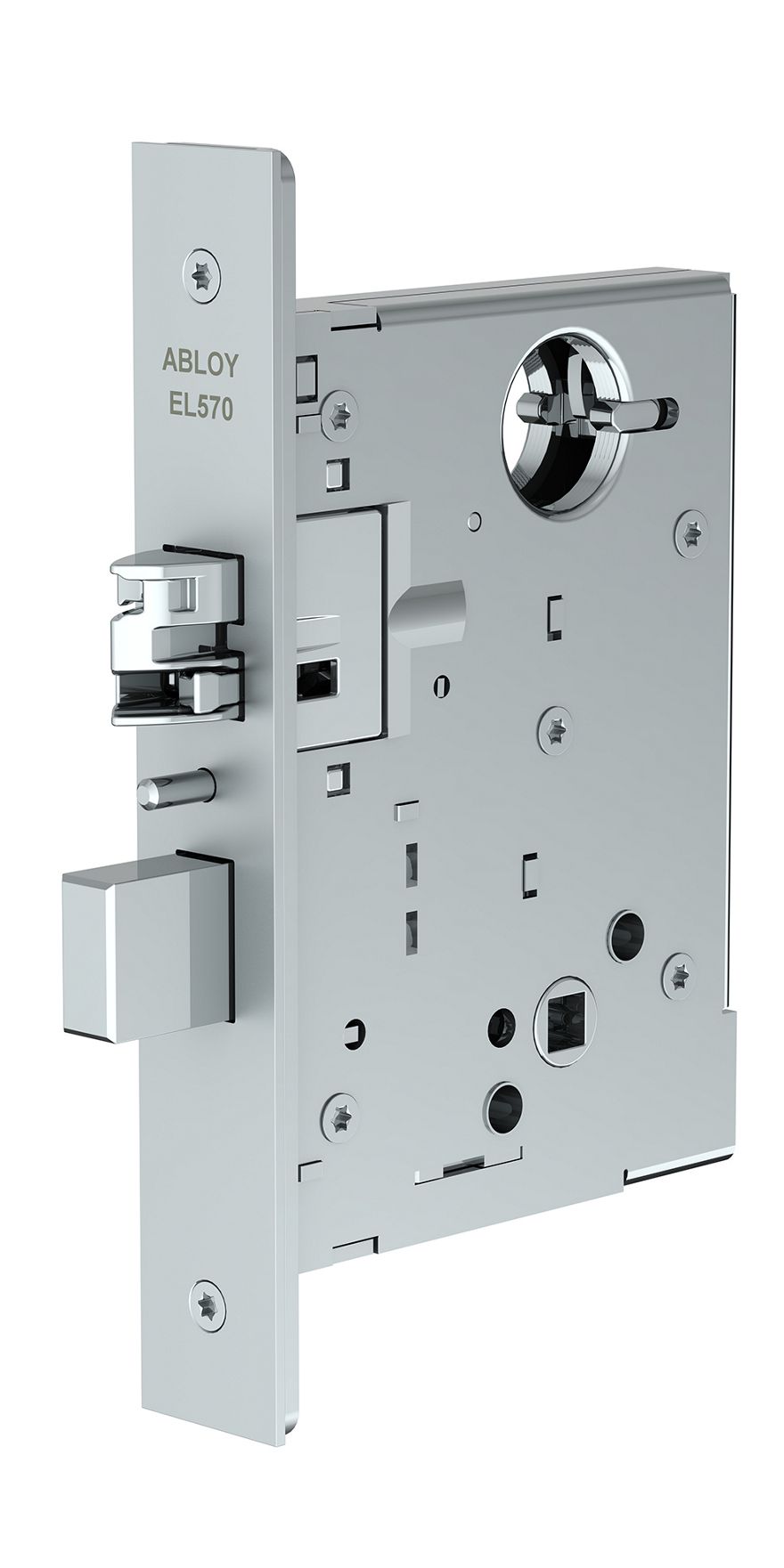

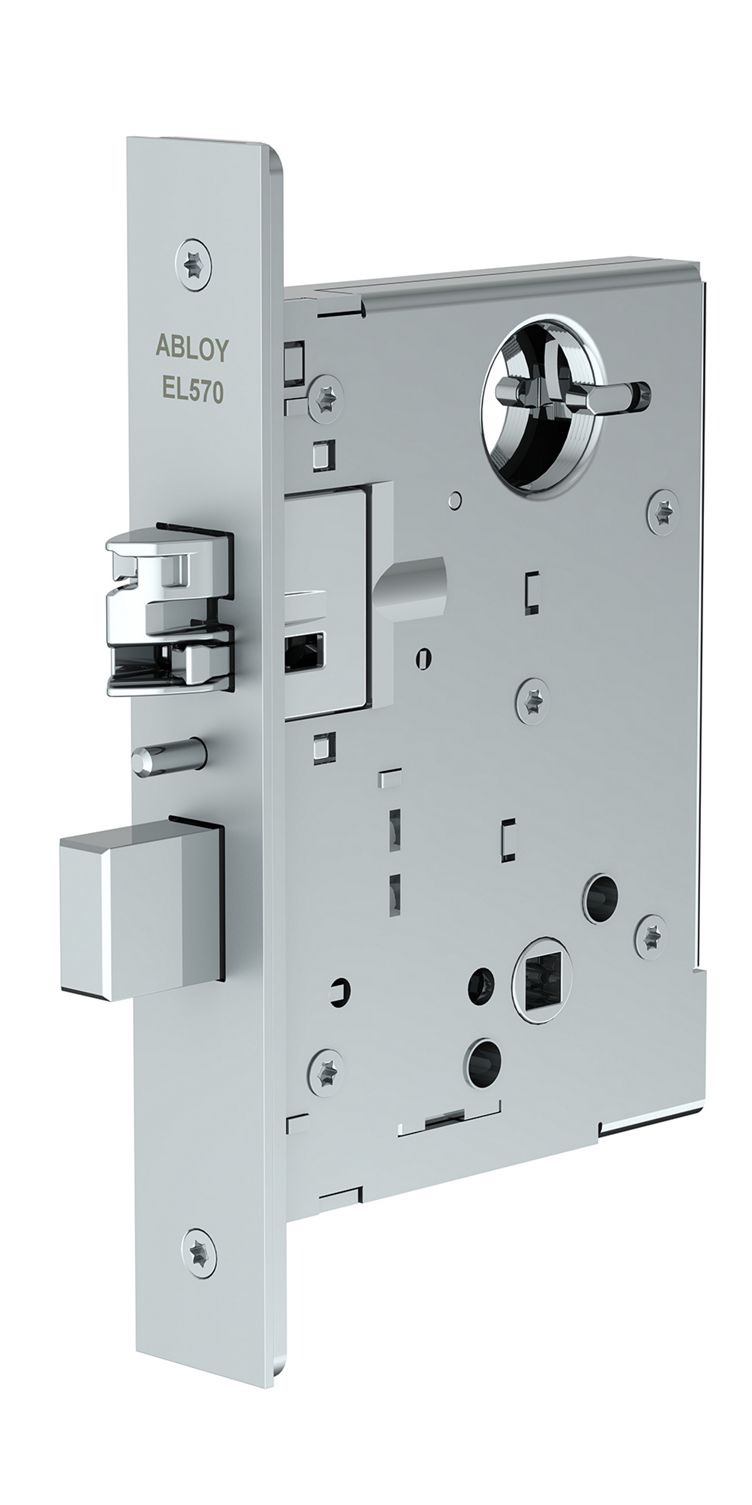

Electric lock EL570

EL570 is a handle controlled solenoid lock used in wooden and metal doors

Application

EL570 is used especially in situations where the advantages of handle-controlled unlocking have to be combined with the mechanical security requirements.

The locks can be electrically controlled by access control system or by a remote control system such as timer, keypad or push button.

The integrated monitoring contacts from the lock can be connected to the different systems.

Function

Only outside handle is electrically controlled. The lock can always be opened by inside handle. Mechanical opening by cylinder is always possible.

When door closes, dead bolt is thrown out automatically, latch bolt is blocked and the lock cases is secured in two points.
