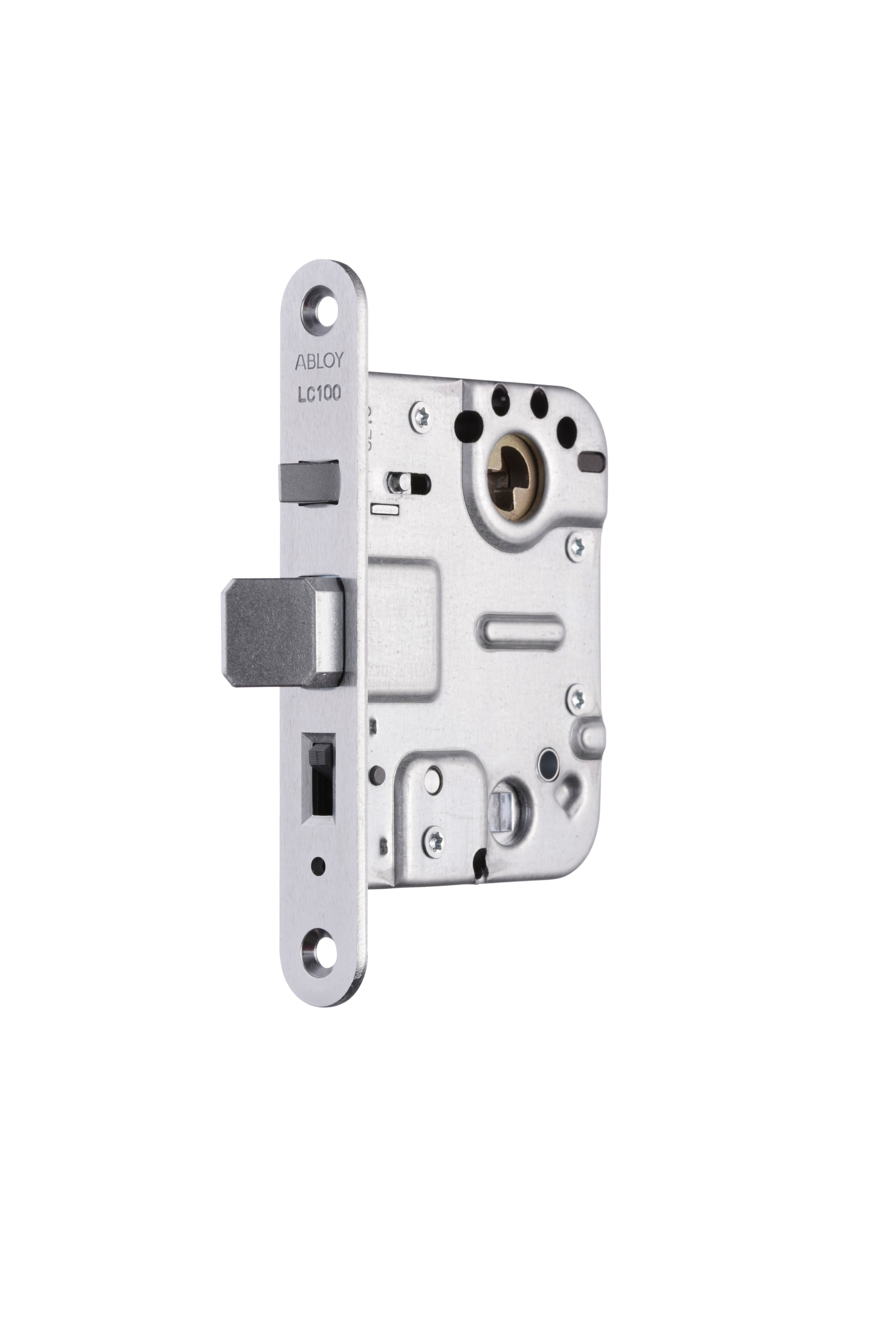

Lock case LC100

Lock case with an automatically deadlocking latchbolt. The lock must always be equipped with handles, as the latchbolt is only retracted with the handles. The deadlocking is controlled by a snib in the forend. When the snib is in deadlocking mode, the door is opened by turning the outside key 180° or the inside thumbturn 90°. The handles are then activated, and the latchbolt can be retracted. When the snib is in its up position, the lever handles are activated by the key or the thumbturn. When the snib is in its down position, the handles work normally. The lock case is fitted with a feature to prevent the unauthorized use of the snib. The snib is locked to the deadlocking mode by turning a set screw, located below the snib, about two turns anticlockwise by a hexagonal key, until the screw stops and is opened by turning the screw clockwise. The lock case works with the 4690, 4691, LP711, LP714, LP721, and LP731 striker plates (Recommended: 4692 and 4693 for the LC100X). Fire resistance: suitable for fire doors Mortice standard: SFS 5209.

  • Lock case LC204

    Automatically deadlocking lock case

  • Lock case 4960

    Automatically deadlocking lock case for folding- and sliding doors.

  • Lock case 4190

    Automatically deadlocking lock case.

  • Lock case 4193

    Automatically deadlocking lock case with an emergency thumbturn.

  • Lock case LC190

    Automatically deadlocking lock case with a day use function.

  • Lock case LC102

    Automatically deadlocking lock case with handles on both sides.

  • Lock case 4194

    Automatically deadlocking lock case without handle function.

  • Lock case LC193

    Automatically deadlocking lock case for emergency doors.

  • Lock case 4195

    Automatically deadlocking lock case without handle function.

  • Lock case LC194

    Automatically deadlocking lock case without handle function.

  • Lock case LC195

    Automatically deadlocking lock case with a day use function and no handle function.

  • Lock case 4197

    Lock case for fire doors.

  • Lock case LC197

    Lock case for separating fire doors with only a cylinder function.

  • Lock case LC960

    Automatically deadlocking lock case with folding- and sliding doors.

  • Lock case LC4190

    Automatically deadlocking lock case.

  • Lock case LC4294

    Automatically deadlocking lock case without handle function.
