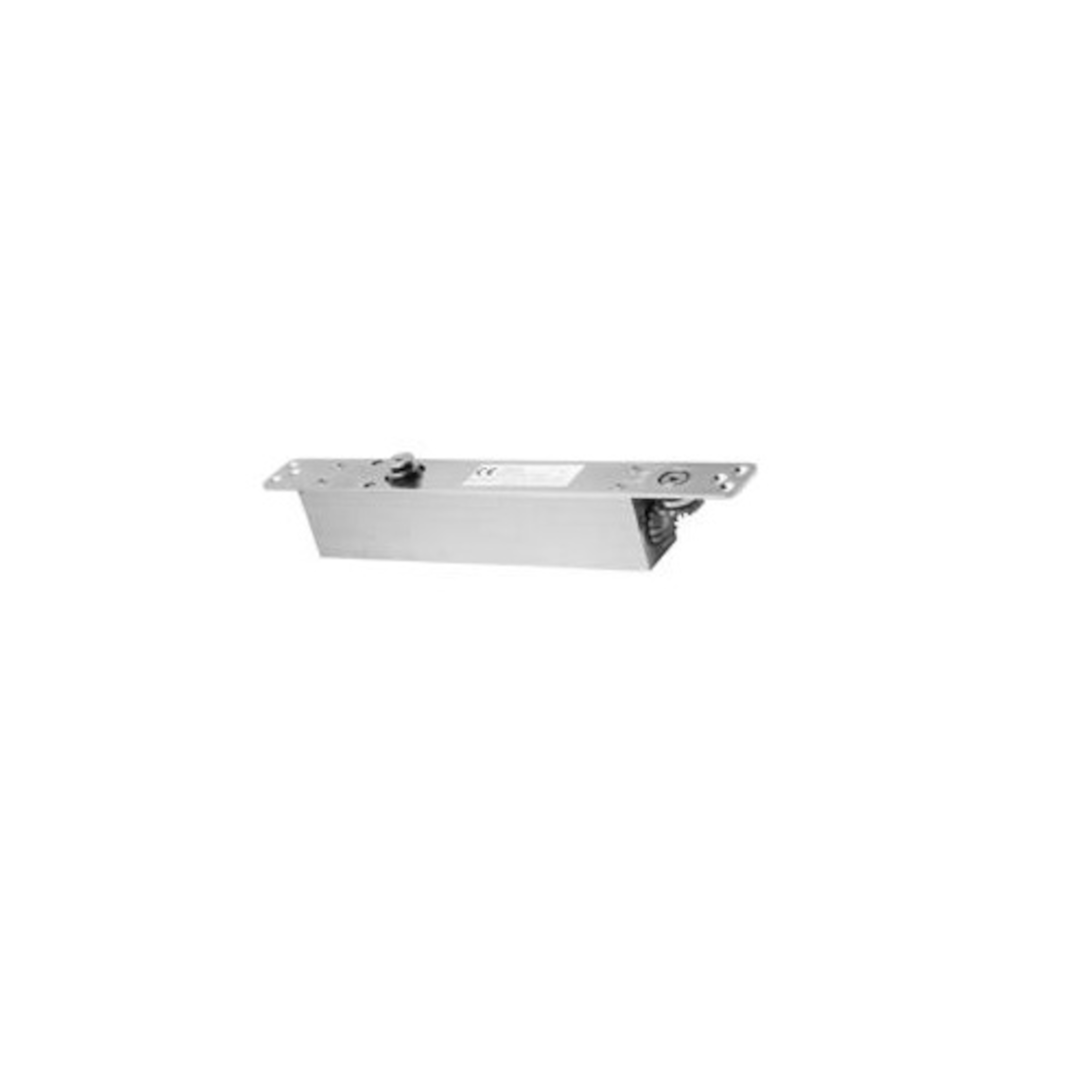

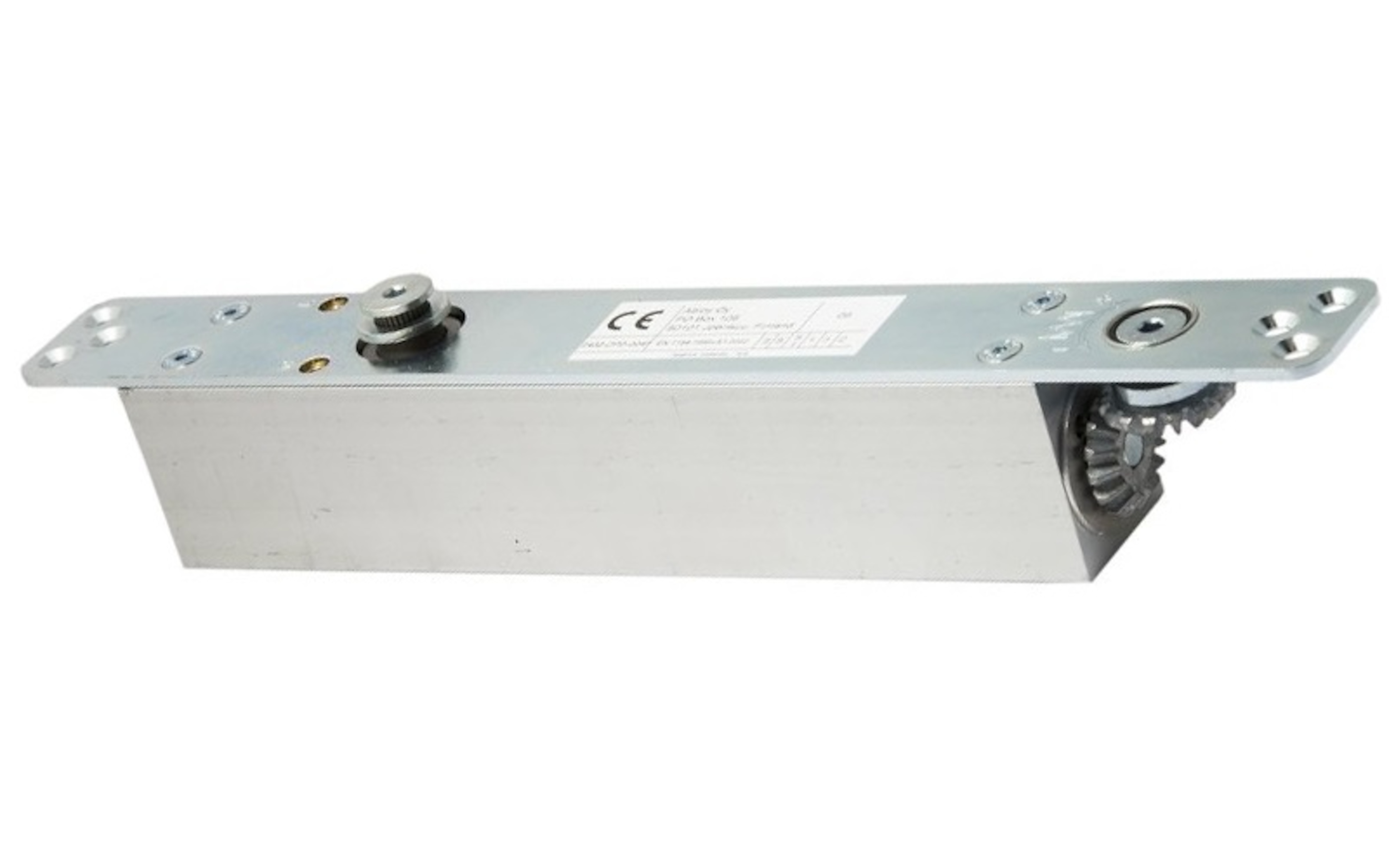

Concealed door closer DC860

Fulfils barrier-free building requirements (EA / CEN TR 15894). Certified in compliance with EN 1154, size 1-5. Concealed door closer with Cam-Motion^® technology and small standard concealed guide rail G892 or standard concealed guide rail G893. For single action doors up to 1250 mm wide. Suitable for fire and smoke protection doors.

1 of 4

Durability

500000

Installation type

Concealed

Hold open function

No

Technology

Cam Motion

Min closing force

EN1

Mounting position

Concealed in frame, Concealed in door

Type of product

Concealed door closer

Max closing force

EN5

Height adjustable spindle

Yes

Fire door approval

Yes

Operating temperature

-15 to +45°C

Force adjustment

Yes

Max opening angle hinge side

120

Min door thickness

50

Max opening angle non-hinge side

120
