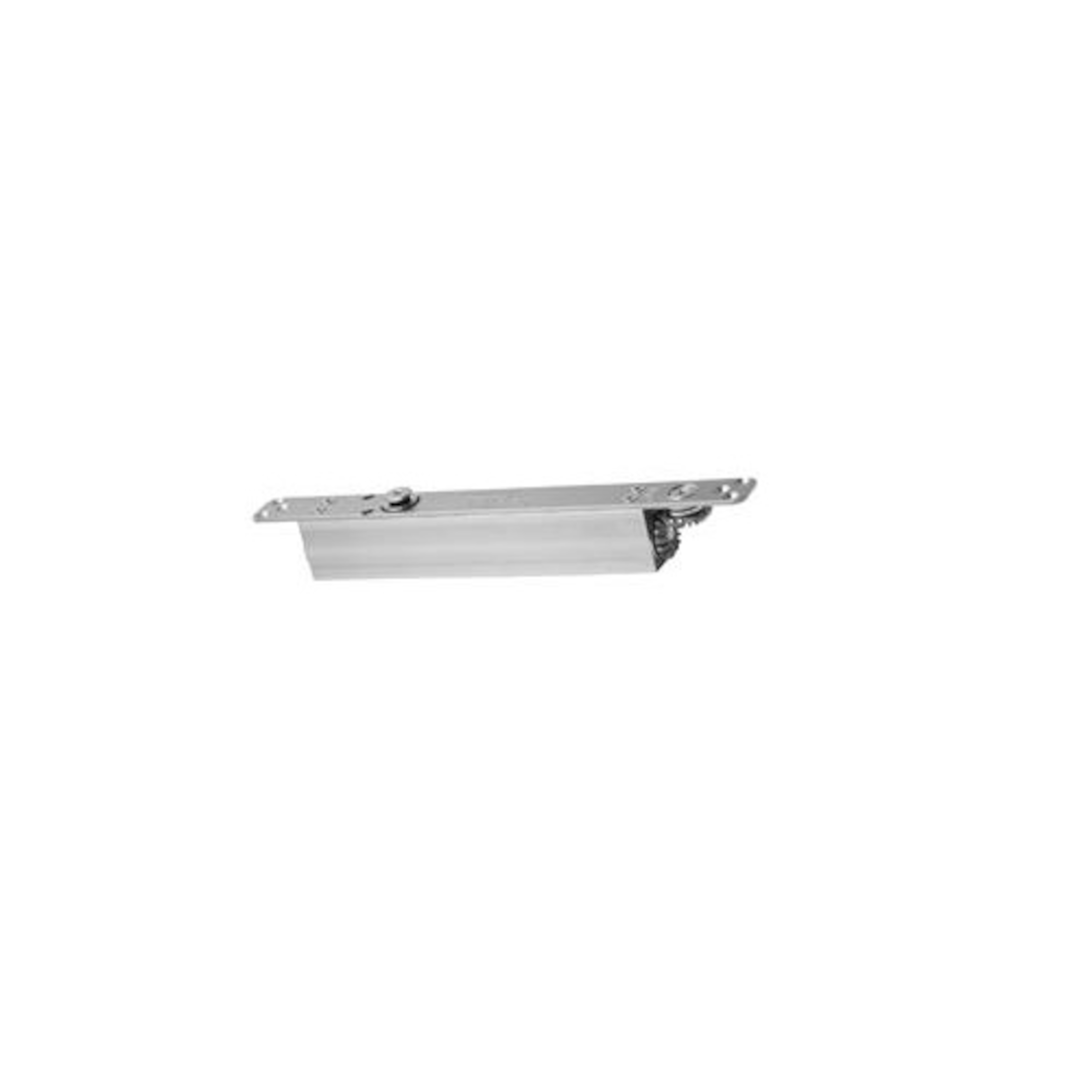

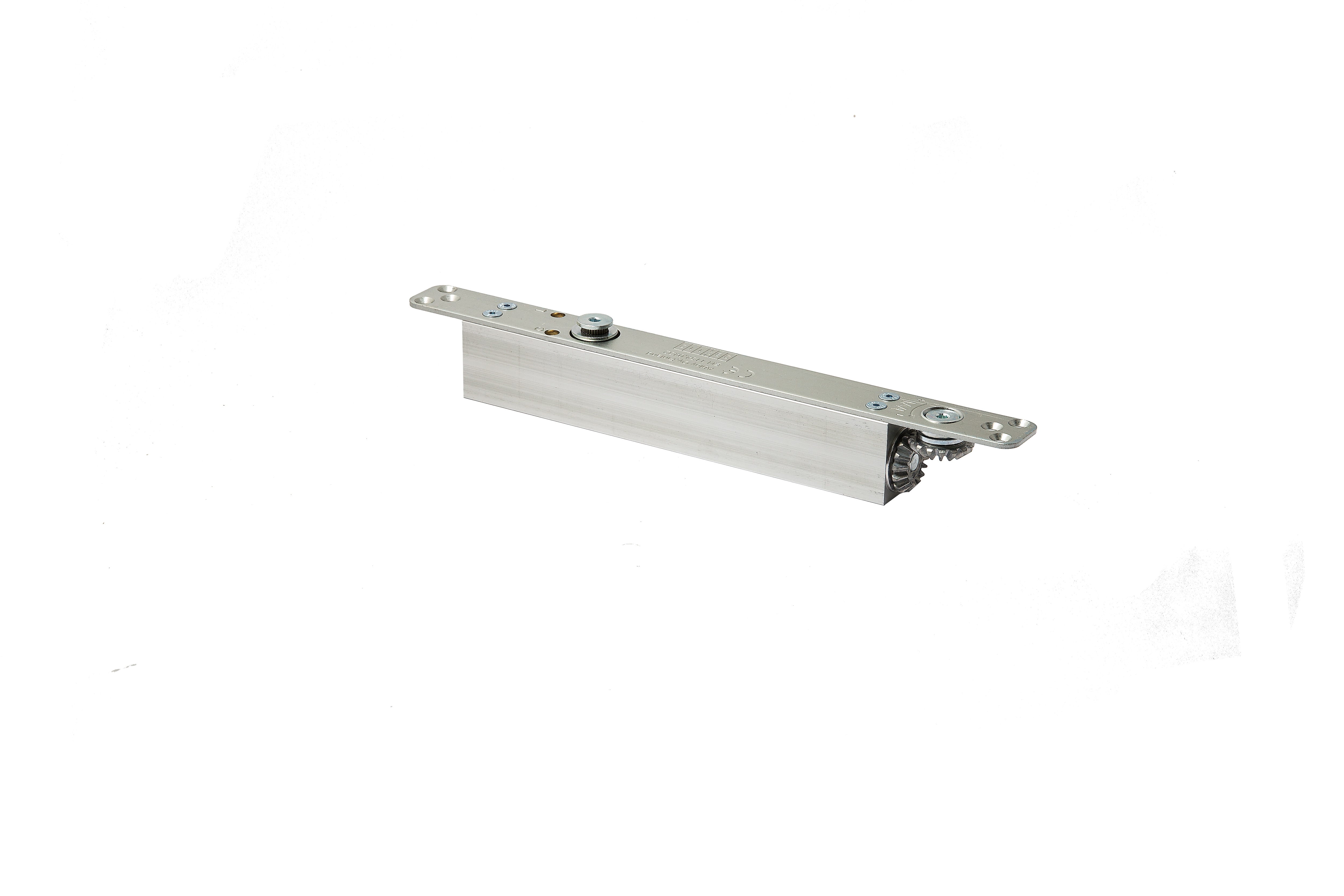

Concealed door closer DC840

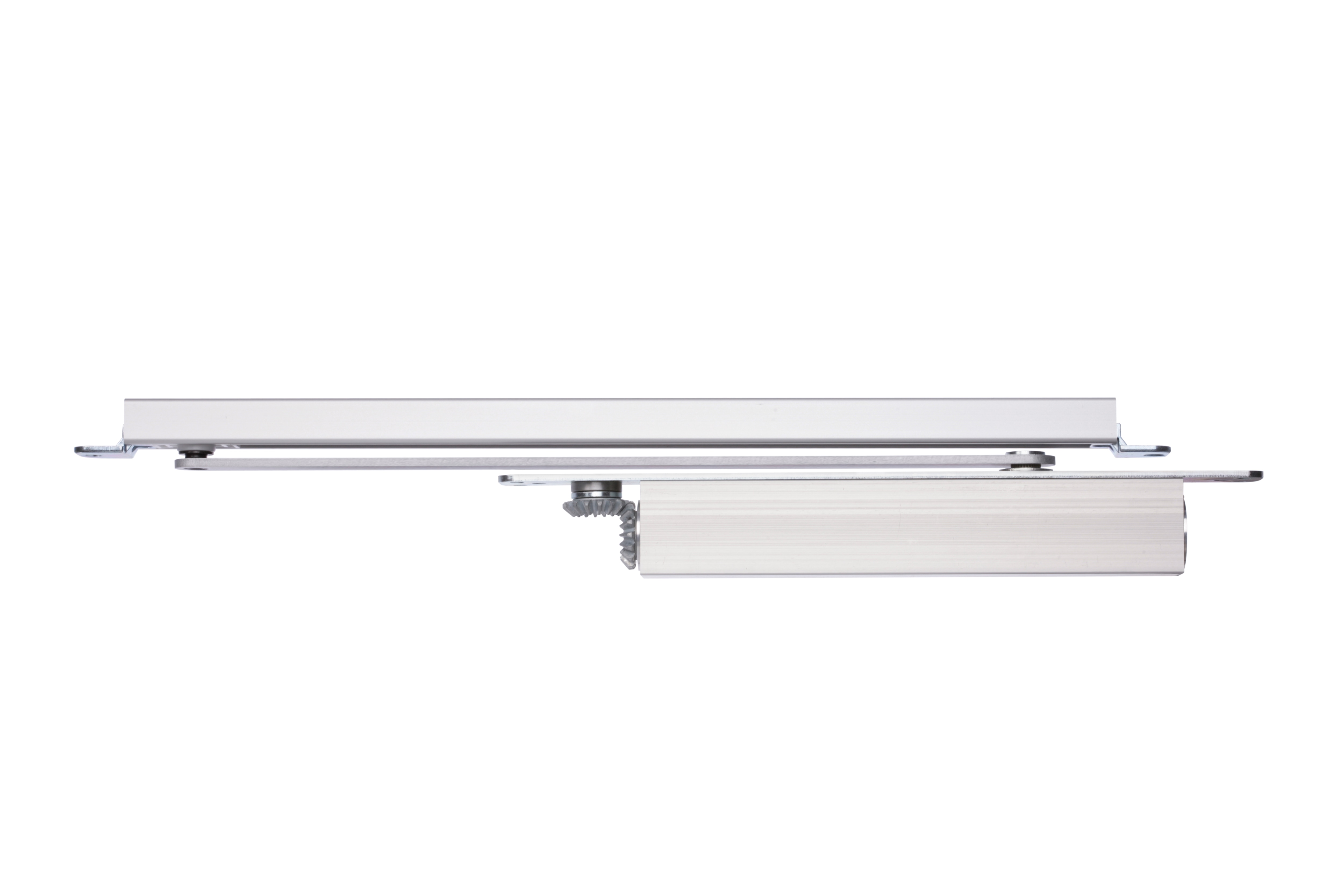

Fulfils barrier-free building requirements (EA / CEN TR 15894). Certified in compliance with EN 1154, size 1-4. Concealed door closer with Cam-Motion® technology and small standard concealed guide rail G892 or standard concealed guide rail G893. For single action doors up to 1100 mm wide. Suitable for fire and smoke protection doors.

Color options:
- Silver
- Special color (RAL colors + brass)

Type of product

Concealed door closer

Hold open function

No

Operating temperature

-15 to +45°C

Max opening angle non-hinge side

120

Durability

500000

Min closing force

EN1

Installation type

Concealed

Force adjustment

Yes

Fire door approval

Yes

Height adjustable spindle

Yes

Technology

Cam Motion

Mounting position

Concealed in door, Concealed in frame

Max closing force

EN4

Max opening angle hinge side

120

Min door thickness

40
